Concrete crushing equipment micro crusher grinder for lab scale

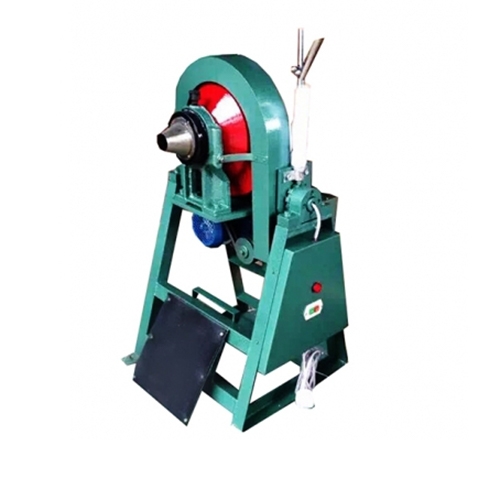

Micro crusher grinder for lab scale
  • Product Orgin:

    China
  • Shipping Port:

    Xiamen/Shanghai
  • Model Number:

    XMQ150*50
  • Power:

    7.5kw
  • Warranty:

    1 Year
  • Dimension(L*W*H):

    700*670*1160mm
  • Weight:

    150-250kg
  • Product Details


Product description of Concrete crushing equipment micro crusher grinder for lab scale

   Micro crusher grinder is new milling equipment. It is in the nature of high shell rotating speed, inner lining smoothly, high milling medium stowing ratio, many mediums, good grinding and polish effectiveness etc. Compared with the same kind of milling machine, it has stable operation, feeding and discharging controlled by motor, fast and convenient, the time of operating selected, well-distributed of the particle size, small over degree of grinding, high grinding efficiency, small power consumption of each unit of materials.

  XMQ series micro crusher grinder is a laboratory milling equipment.It applied to the laboratory wet grinding (150*50 cone ball mill is applied to dry grinding) metallurgy, building materials, chemical industry, light industry, coal , water and electricity, agriculture and geology these laboratory Artificially placer, ore processing technology and other use of grinding the materials.


Technical parameter for Concrete crushing equipment micro crusher grinder for lab scale

Grinding Volume (L)

0.25

0.5

1

Drum Diameter Length (mm)

65*76

80*100

102*125

Maximum Loading Ore (G)

50

100

280

Feeding Size (mm)

0-0.5

0-0.5

0-1

Output Size (mm)

0-0.074

0-0.074

0-0.074


Steel Bar

Diameter Length (mm)

10*72

12*95

18*125



Quantity (pcs)

7

9

6



Weight (kg)

0.62

1.5

2.6

Overall Diameter(mm)

900*600*950





Weight(kg)

230
