Lead Time:
1-3Color:
SilverModel Number:
LS-HD SeriesMinimum Order Quantity:
1Warranty:
1 yearLS-HD Series High Efficient Hospital Vertical Autoclave Steam Sterilizer
Technical data:
|
Model technical data
|
LS-35HD(automatic) |
LS-50HD(automatic) |
LS-75HD(automatic) |
LS-100HD(automatic) |
|
Chamber volume
|
35L(φ318×450)mm |
50L(φ340×550) mm |
75L(φ400×600) mm |
100L(φ440×650) mm |
|
working pressure |
0.22MPa |
0.14 MPa |
||
|
Working temperature
|
134℃ |
126℃ |
||
|
Max working pressure
|
0.23 Mpa |
0.165 Mpa |
||
|
Heat average
|
≤±1℃ |
|||
|
Timer
|
0~99min or 0~99hour59min |
|||
|
Adjustment of temperature
|
105~134℃ |
105~126℃ |
||
|
Power |
2.5Kw/AC220V.50Hz |
3Kw/AC220V.50Hz |
4.5Kw/AC220V.50Hz |
|
|
Overall dimension
|
450×450×1010(mm) |
510×470×1130(mm) |
560×560×1120 (mm) |
540×560×1250 (mm) |
|
Transport dimension
|
570×550×1150(mm) |
590×590×1280(mm) |
650×630×1280(mm) |
680×630×1370(mm) |
|
G.W/N.W
|
72Kg/56Kg |
88Kg/ 68Kg |
100Kg/ 80Kg |
110Kg/ 85Kg |
LS-HD Series autoclave sterilizer
LS-HD Series vertical cylindrical pressure steam sterilizer of microcomputer is installed with an electrical heater, a timer, an automatically pressure-temperature controller, a safety valve, a releasing valve, a pressure-temperature indicator, an alarm bell for finished sterilization and an instrument to automatically cut off the power of heater. It has the advantages of effective sterilization, convenient operation, safe, less electricity consuming and cheap. It is ideal equipment for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media etc.
Features:
1.Fully stainless steel structure.

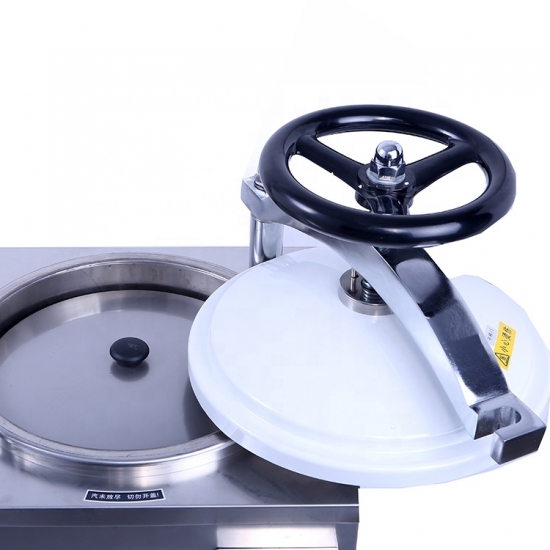

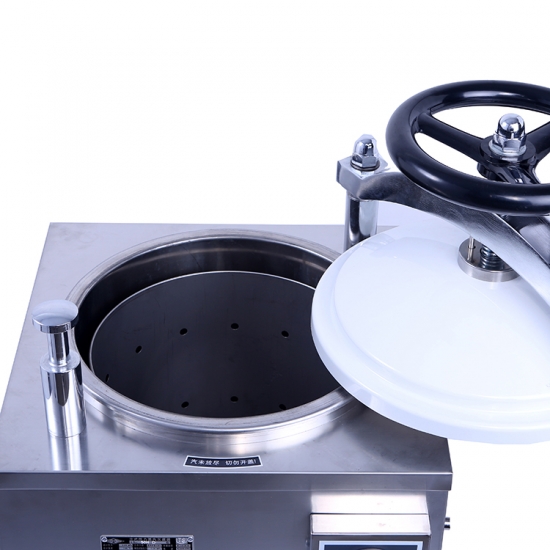

2.Hand wheel type of quick-open door structure.

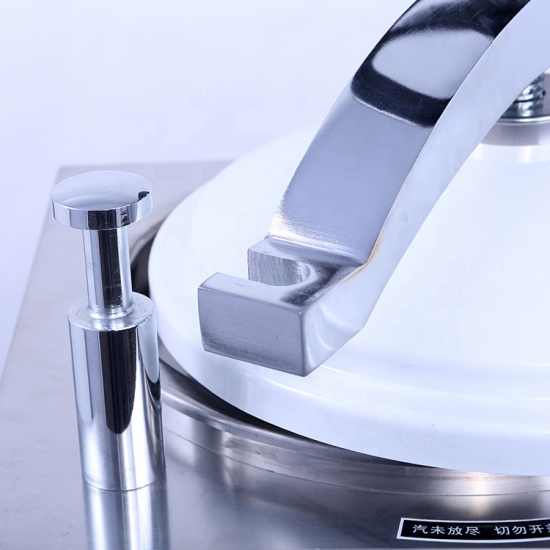

3.Door safety lock system.

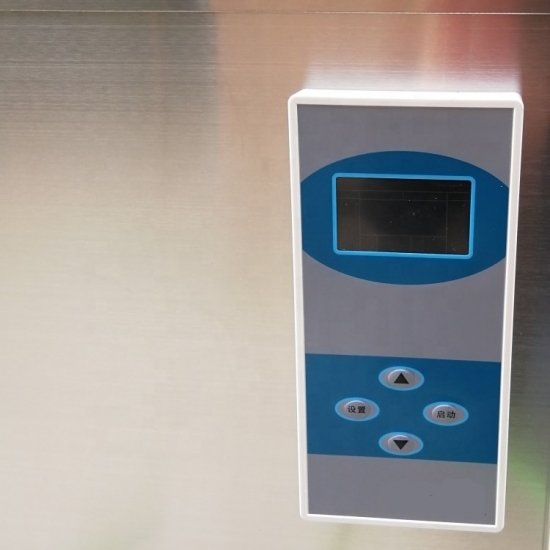

4.Digital display of working status,touch of key.
5.Auto discharge the cool air,and steam discharging automatically after sterilization.
6.Over temperature&over pressure auto-protection.
7.Safe protection of water lacking.
8.Self-inflating type seal.
9.Automatically shut off with beep reminding after sterilization.
10.Used for sterilization of medical instruments, medical cotton products.
11.Fully stainless steel SUS304/AISI 304 -3mm.
12.24 months warranty.
13.Possible to install drying system according request.
Packing & Shipping
