Model Number:
OLT-HL-100LCompliance:
CE CertifiedMinimum Order Quantity:
1Capacity:
100LVoltage:
108V-380V 50/60HZWarranty:
3 yearTemperature range:
-40°C to 150°CDimension(L*W*H):
40*50*50 cmPackaging Details:
Standard export wooden boxDelivery Time:

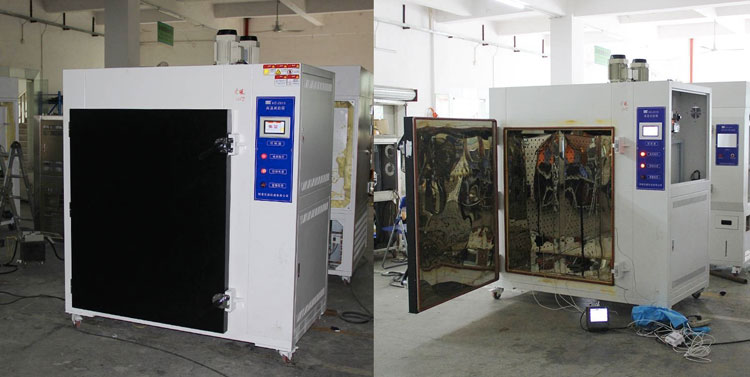

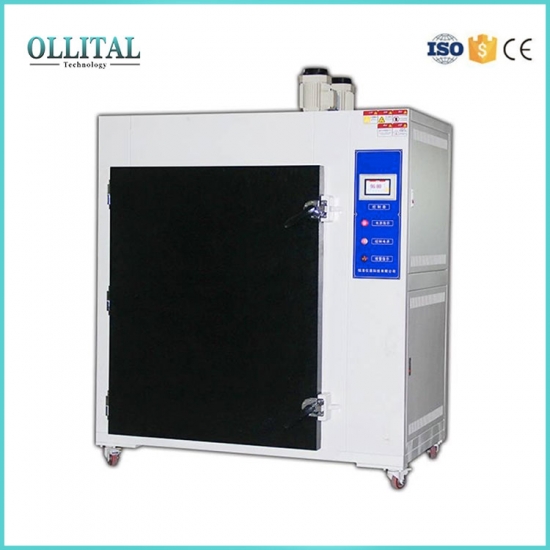

8-10 dayHigh And Low Temperature Test Chamber can test the material property in high and low temperature, such as electrical, electronic products, as well as their original devices, The testing equipment is mainly made according to the national standard and user-defined requirements, it simulate the environment to test proformance of material as well as other relevant characteristics of physical at low temperature or high temperature, Through testing to determine product performance whether it is still be able to meet the intended requirements.
OLT-HL-80L
Model
OLT-HL-100L
OLT-HL-150L
Inner size D×W×H
40*50*40 cm
40*50*50 cm
50*60*50 cm
Index
Temperature
-40°C to 150°C
Fluctuate/
uniformly
≤±0.5°C /.+2°C to 3°C
Heating-up time
-40°C to 100°C about 55min
Cooling time
25°C to -70°C about 80min
Control
system
Controller
LED digital P,I,D, + S,S,R.microcomputer controller
Accuracy
Setting accuracy temperature ±0.1°C,directed accuracy temperature ±0.1°C,resolution ±0.1°C
Sensor
Platinum resistance PT100Ω/MV
Heating system
Independent system, nickel-chromium alloy electric heating type heater
Cooling system
Totally enclosed air-cooled single-stage compression refrigerate mode / original from
Frence "Tecumseh" / totally enclosed air-cooled re-compression refrigerate mode
Circulatory system
Temperature, low-noise, air-conditioning-type motor. Multi-vane centrifugal wind wheel
Material
Outer material
High-quality carbon steel plate. Phosphide electrostatic spray treatment /
SUS304 stainless steel hairline treatment
Inside material
SUS304 High-quality stainless steel light board
Insulation material
Rigid polyurethane foam, ultra-fine glass fiber cotton
Insulation
Double-resistant high-temperature aging of silicone rubber seal
Standard collocation
a set of Multi-heated glass window attached lighting, testing product shelf 2 pcs,
test leads holes (25,50 mm) 1 pcs
Protector
Leak current, short circuit, over temperature, motor overheating, over-pressure
compressor, overload, over-current protection
Timer
0.1 to 999.9 (S,M,H) adjustable
Voltage
AC380V±10%, 50±0.5Hz, Three-phase five-wire system
Working environment
5°C to 30°C ≤85%R.H
Corresponding standard:
1. GB 10589-89 low temperature testing condition
2. GB 10592-89 high temperature testing condition
3. GB 11158-89 high temperature testing condition
4. GB/T5170.2-1996 basic parameters of environmental testing method for Electrical and electronic products,
5. GB2423.1-89 The basic test regulation for electrical and electronic products, Test A: low-temperature test method
6. GB2423.2-89 The basic test regulation for electrical and electronic products, Test B: high-temperature test method
7. The basic test regulation for electrical and electronic products, Test: high-low-temperature test method
Applicable industries:
High And Low Temperature Test Chamberapplied to test the products quality, such as electronic, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, medical care and so on.
