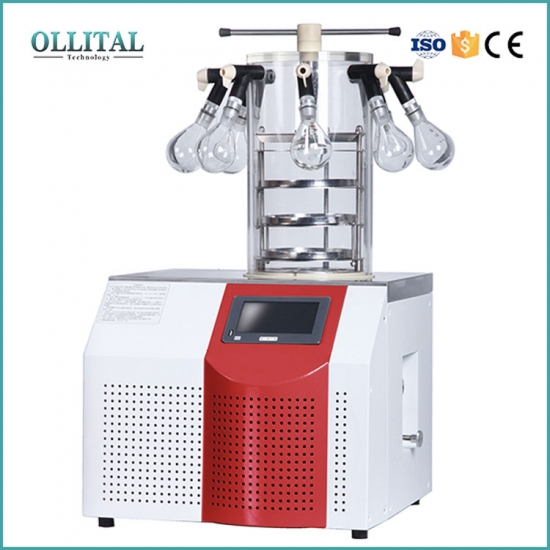

Lab 0.9L Vacuum Freeze Dryer Manifold Freezer Dryer Lyophilizer Of -60/80℃

  • Model Number:

    OLT-FD-10PT
  • Compliance:

    CE Certified
  • Minimum Order Quantity:

    1
  • Mixing method:

    LCD
  • Capacity:

    0.9L
  • Voltage:

    108V-240V 50/60HZ
  • Warranty:

    1 year
  • Dimension(L*W*H):

    582*541*374/684mm
  • Packaging Details:

    Export wooden package
  • Delivery Time:

    6-8 day
  • Product Details

Model

OLT-FD-10PT

Type

 Stoppering
chamber with 8 port manifold

Freeze Drying Area

0.09 m2

Tray

3 pcs

Cold Trap Temperature

≤-60℃

Vacuum Degree

<10 Pa

Water Capture Capacity

3 Kg/24h

Tray Size (D*H)

Φ200*20mm

Freeze Drying Time

18-24h

Loading Capacity/Shelf (Liquid)

0.3L

Total Loading Capacity (Liquid)

0.9L

Total Qty. Of Vial Φ22

195

Total Qty. Of Vial Φ16

360

Total Qty. Of Vial Φ12

690

Power Supply

220V/50Hz,60Hz (single phase)
110V/60Hz (single phase)

Standard Accessory

Vacuum pump 2L/S, 8m³/h (for all models)
Conical-mouth flask 500ml*8 pcs (only for model MKFD10P/PT)

Optional Function & Accessory

Tray heating (for all models)
Cold trap defrosting (for all models)
Conical-mouth flask and wide-mouth flask (for MKFD10P/PT)
Import vacuum pump

External Size (W*D*H)

582*541*374/684mm

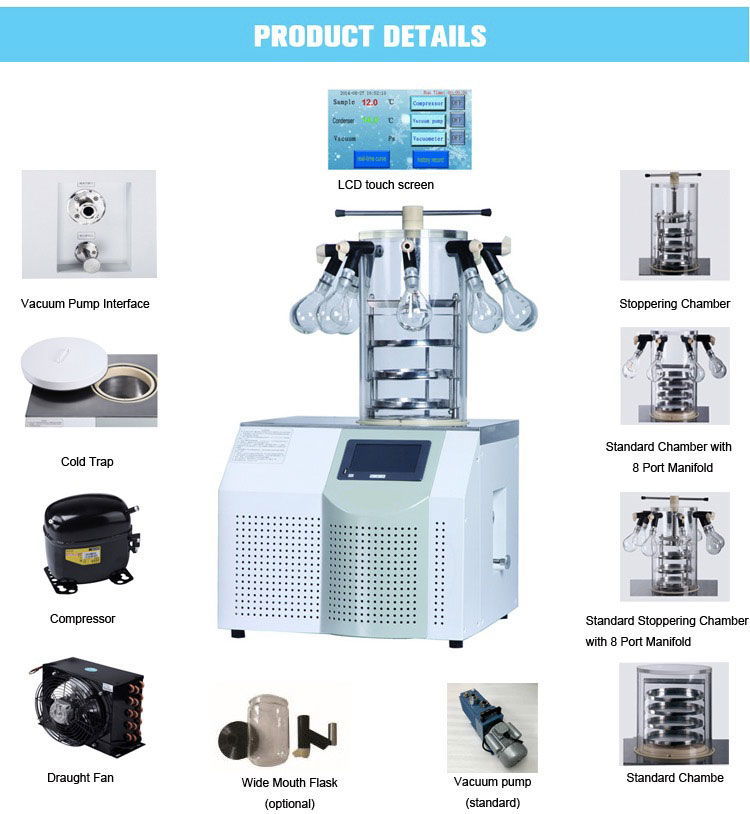

1. LCD touch screen.

2. With historical data inquiry function.

3. With USB interface to export the data.

4. Large capacity ice condenser trap and without coil inside.

5. With cascade refrigeration technology.

6. Pre-freezing shelf can be used as guide barrel to speed up the drying rate.

7. Ice condenser trap and operation panel are made by stainless steel.

8. Drying chamber is transparent which is visual and safe.

9. Shelves are stainless steel, which can be adjustable per the requirements.

Packing and Shipping

-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.

-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent
