Lab Crusher Primary Sample Jaw Crusher

To crush cement clinker, ore or rock specimens with compression strength less than 2500MPa in the laboratories.
  • Item NO.:

    PE60 x 100
  • Lead Time:

    7days
  • Shipping Port:

    XiaMen
  • Product Details

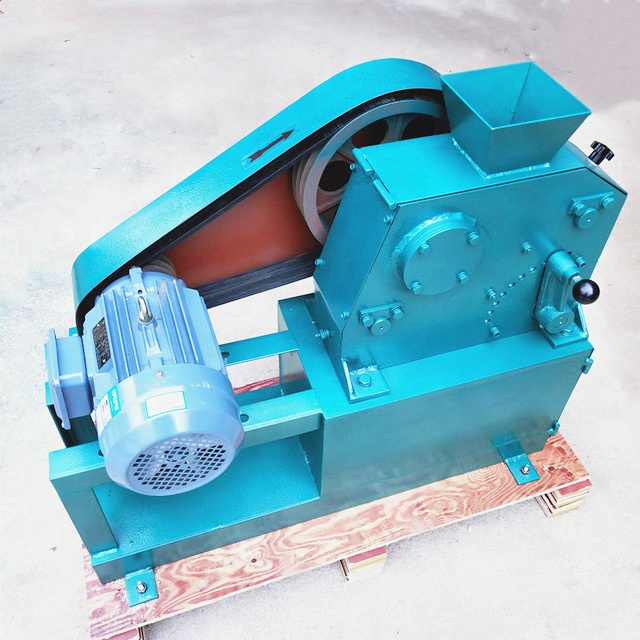

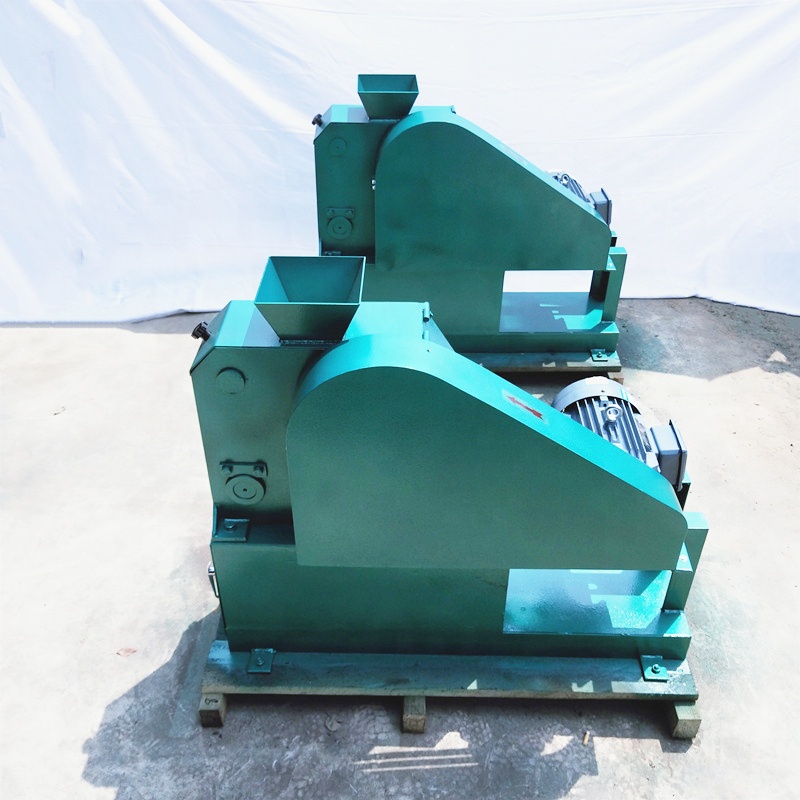

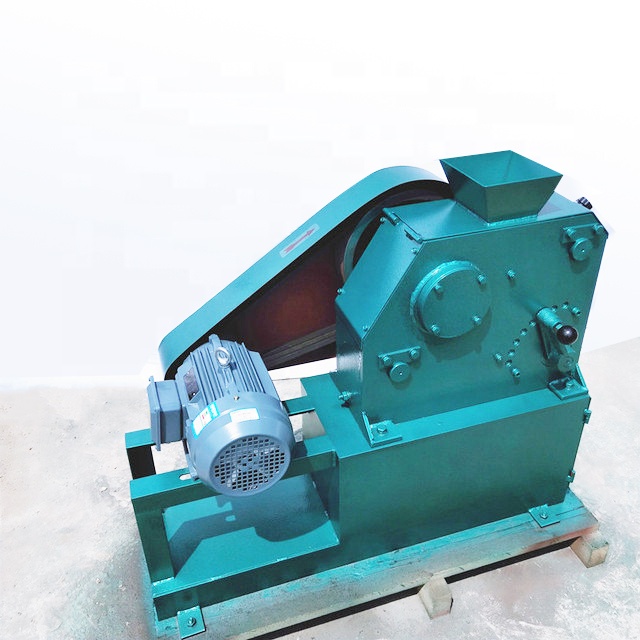

PE60×100 Jaw Crusher /PEF60X100 Jaw crusher

I. Purpose
To crush cement clinker, ore or rock specimens with compression strength less than 2500MPa in the laboratories.



II. Technical parameters

Specification
PE/PEF100X60
PE/PEF100X125
PE/PEF150X125
Feeding opening
60×100mm
100X125
150X125
Max. material size
45mm
≤80
≤80
Output material size (mm)
0.1~15
5~25
6~38
Capacity (kg/hour)
45~550
400~1800
300~2000
Main shaft speed (rpm/min)
600
500
500
Motor capacity (KW)
2.2
3
3

Stable performance, best price, good quality , good after-sales service

Usage field: Cement Testing Machine

Product name: PE60 x 100 Jaw Crusher, China Jaw Crusher
