Photoelectrochemical Testing System-PEC1000

  • Model Number:

    PEC1000
  • Compliance:

    CE Certified
  • Minimum Order Quantity:

    1
  • Voltage:

    108V-240V 50/60HZ
  • Packaging Details:

    Export wooden package
  • Delivery Time:

    2-5 days
  • Product Details

Photoelectrochemical (PEC) water splitting for solar fuels production (hydrogen or chemicals) is widely accepted as one of the most promising technologies for sustainable energy utilization. Photoelectrocatalysis can improve the solar to hydrogen conversion efficiency (STH) via accelerating the photogenerated electron-hole separation by applying a bias voltage, which is more efficient than that in the photocatalytic process. Thus, photoelectrocatalysis could be an ideal technology for environmental pollution control and clean energy production.

光电化学测试系统_PEC1000

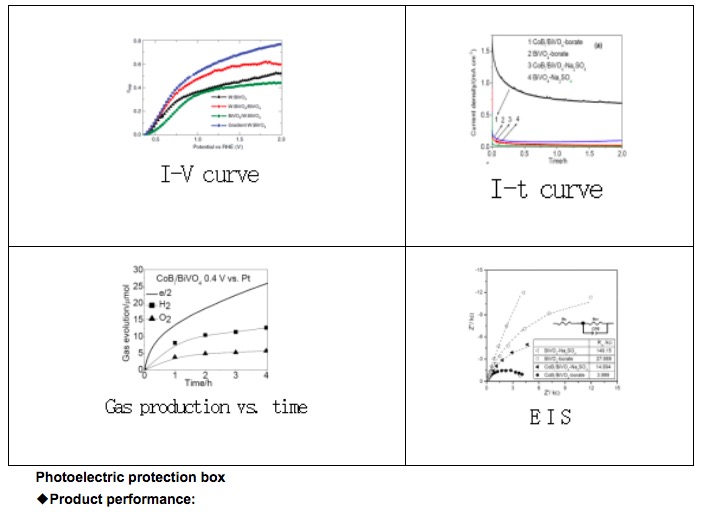

Combined with the years of experience of its own and the top laboratories in photocatalysis, PEC 1000 photoelectrocatalytic testing device of Perfectlight has been greatly improved in terms of automation and accuracy, which can meet the needs of the researchers in photoelectrocatalysis for current-voltage curve, electrochemical impedance spectroscopy, hydrogen and oxygen generation, faraday efficiency and other major parameters of photocatalytic materials.


Power supply management: provide power in the protection box;
Tunable chopper frequency;
Precisely control the reactor location;
Digital display of chopping frequency;
◆Product configuration:
A set of electric displacement platforms;
A set of adjustable frequency chopper;
Power supply;
One standard power cord;
One set of controllable sockets;
One fan;
A protection box;
A set of crates;

.jpg

Packing and Shipping

-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.

-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent

Packaging Delivery.jpeg
