Model Number:
XPM-12-XCompliance:
CE CertifiedMinimum Order Quantity:
1Operation method:

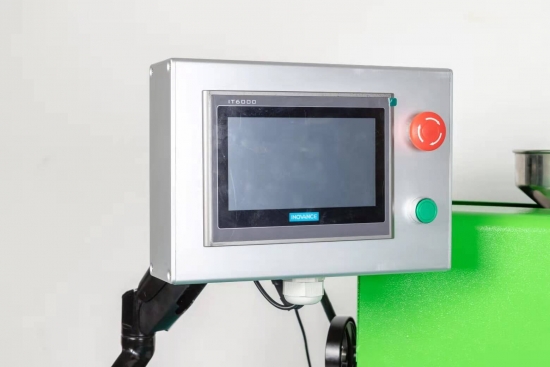

PLC ControlMixing method:
Touch ScreenVoltage:
220VWarranty:
1 year1.) Optimized Platen Design with high rigidity and enlarged space between tie bars
2.) Euromap-based Platen Layout with both T-slot & tap holes, locating design in moving platen to better suit various molds
3.) New ejection system design with longer ejection stroke, bigger space and better rigidity
4.) Hydraulic drivien gear-type mold height adjustion mechanism
5.) Relocation of mechanical safety interlock for easier operation
6.) linkage structure for front connecting rod increases connectingrod's strength greatly, as well as the whole clamping unit's rigidity & accuracy.
|
Model |
XPM-12-X |
XPM-12 |
XPM-17 |
|
Product Name |
Small desktop injection molding machine |
||
|
Clamping force |
12T |
15T |
|
|
Voltage |
Single phase, 220V 60Hz |
||
|

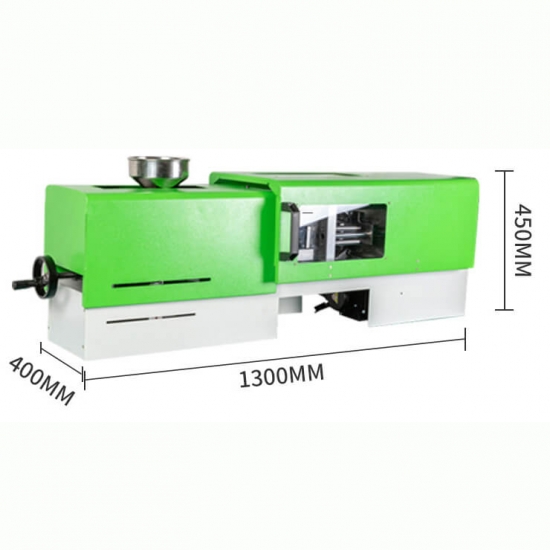

Machine Size |
1400*475*1200mm |
1300*400*450mm |
1400*475*550mm |
|
Machine weight |
180kg |
145kg |
225kg |
|
Screw diameter |
18mm |
18mm |
22mm |
|
Nozzle diameter |
2mm |
2mm |
2mm |
|
Mold opening stroke |
85mm |
75mm |
125mm |
|
Max. production weight |
30g |
30g |
40g |
|
Maximum mold installation size |
200*120*150mm |
200*120*150mm |
175*250*170mm |
|
Temperature range |
0-400C |
||
|
Applicable materials |
PP, PE, PVC, ABS, PC, PA6, PS, PEI, PIMMA, TPU, PTE etc. |
||
Packing&Delivery
Ollital Technology would like to establish win-win business cooperation with distributors all over the world.
