Lead Time:
3-5Product Orgin:
ChinaShipping Port:
XiamenVoltage:
380V/220V 50HzPower:
3WProduct Description

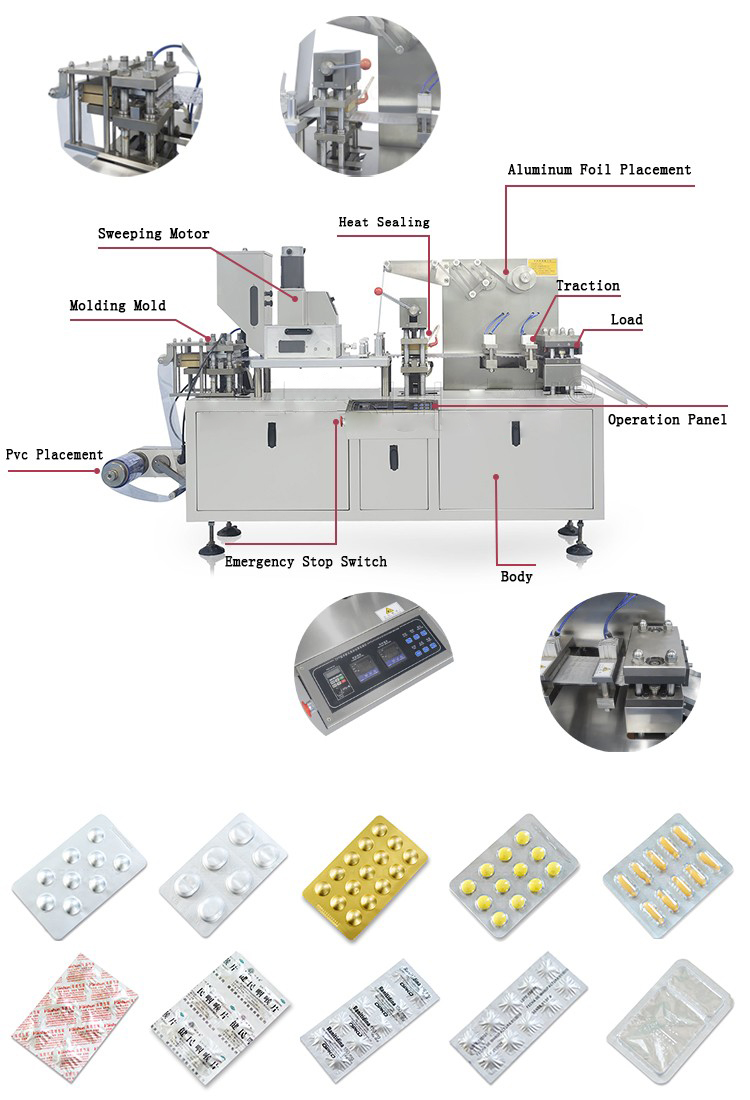

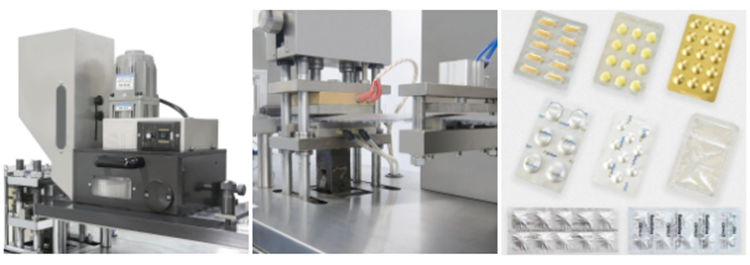

The machine adopts the newest type high-power transmission mechanism to arrange the chain and drive the main driving shaft. The errors and noises of other gear wheel transmission can be avoided.
Imported controlling system is adopted; also it can be equipped with detecting and rejection function device for number of medicines according to the user's requirement.
It adopts photo electrical controlling system to make PVC, PTP, Aluminum/Aluminum material to be automatically fed and waste side to be cut automatically to guarantee the Synchronous stability of over- length distance and multi stations.
It can be optional equipped with photocell correction device, imported stepper motor traction and image- character register to optimize packing grade.This machine is suitable for Industry: food, medicine, medical equipment, hardware, electronic blister packaging.
Product Parameter
| Model |
DPP-80 |
DPP-140 |
DPP-250 |
|
Blanking frequency |
PVC-AL: 10-40 times/min AL-AL: 10-30 times/min |
PVC-AL: 10-40 times/min AL-AL: 10-30 times/min |
PVC-AL: 10-40 times/min AL-AL: 10-30 times/min |
|
Adjustable scope of feed travel |
30-100mm adjustable |
30-120mm adjustable |
30-140mm adjustable |
|
The max forming area and depth |
120mm×90mm×20mm |
150mm×120mm×26mm |
240mm×130mm×26mm |
|
Wrapper: ALU |
Length: 130mm, thickness: 0.02-0.035mm |
Length: 160mm, thickness: 0.02-0.035mm |
Length: 250mm, thickness: 0.02-0.035mm |
|
Wrapper: PVC |
Length: 130mm, thickness: 0.25-0.5mm |
Length: 160mm, thickness: 0.25-0.5mm |
Length: 250mm, thickness: 0.25-0.5mm |
|
Wrapper: PTP |
Length: 130mm, thickness: 0.02-0.035mm |
Length: 160mm, thickness: 0.02-0.035mm |
Length: 250mm, thickness: 0.02-0.035mm |
|
Wrapper:Dialysis paper |
Length:130mm, specification:50-100 gram |
Length:160mm, specification:50-100 gram |
Length:250mm, specification:50-100 gram |
|
Power of forming heating |
1.5KW |
2.4KW |
3KW |
|
Power of sealing heating |
1.5KW |
2.4KW |
3KW |
|
Main motor power |
0.75KW |
1.5KW |
1.5KW |
|
Machine Voltage |
380V/220V 50Hz |
380V/220V 50Hz |
380V/220V 50Hz |
|
Capacity of air compressor |
≥0.2m3/min Pressure: 0.4～0.6MPa |
≥0.2m3/min Pressure: 0.5～0.7MPa |
≥0.2m3/min Pressure: 0.5～0.7MPa |
|
Overall dimension |
2070×650×1060mm |
2350x580x1500mm |
3100×670×1650mm |
|
Weight |
560Kg |
800Kg |
1500Kg |
