In modern laboratory research and industrial production, the rotary evaporator has become the core equipment for solvent evaporation, concentration and purification. It is not only widely used in pharmaceutical, chemical, food, biotechnology and other fields, but also plays an important role in colleges and universities and scientific research institutions. Choosing a high-performance rotary evaporator can not only improve experimental efficiency, but also ensure the safety and accuracy of operation.

Core advantages of rotary evaporator

1. Efficient evaporation, improve experimental efficiency

The rotary evaporator uses a vacuum environment to reduce the boiling point of the solvent, and increases the heating area by rotating, so that the solvent evaporates quickly and condenses and recovers. Compared with traditional evaporation methods, rotary evaporation has the advantages of fast evaporation speed, low energy consumption and high recovery rate. It is an ideal equipment for laboratory solvent recovery and purification.

2. Accurate temperature control, suitable for a variety of solvents

The high-quality rotary evaporator is equipped with an intelligent PID temperature control system, and the temperature of the heating pot can be freely adjusted between **room temperature and 180℃**, ensuring that solvents with different boiling points can evaporate stably, while avoiding excessive temperature and sample degradation.

3. Safety design to ensure stable laboratory operation

The rotary evaporator uses an explosion-proof motor and an over-temperature protection system to maintain the stability of the equipment even after long-term operation. In addition, some models have an automatic lifting function. Once the power is off or the temperature is abnormal, the evaporating flask will automatically rise to avoid sample loss.

4. Modular design to meet different experimental needs

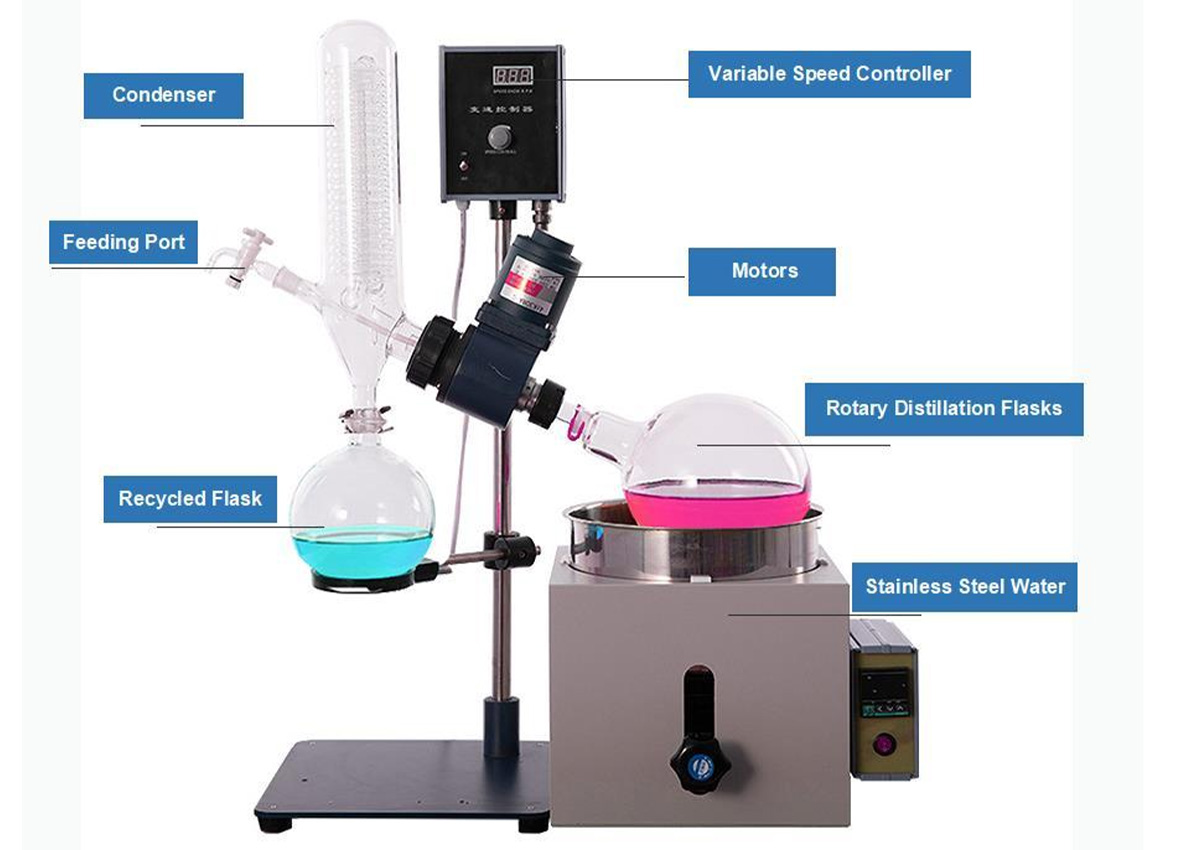

Modern rotary evaporators support a variety of condenser configurations, such as vertical, oblique and dry condensers, to meet different types of experimental needs. In addition, vacuum pumps and cooling circulation devices can be optionally equipped to achieve low-temperature evaporation and efficient solvent recovery.

Recommended products

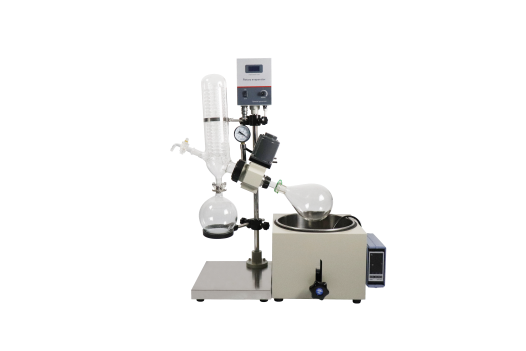

1L rotary evaporator (laboratory standard)

Click to view product details

Suitable for small-scale experiments, compact design, saving laboratory space

Rotation speed 10-120 rpm, can be precisely adjusted

PID temperature control system, maximum heating temperature 180℃

Efficient condensation system, improve solvent recovery rate

5L rotary evaporator (universal type)

Click to view product details

Suitable for pilot and most laboratory needs

High-torque DC motor to ensure smooth rotation and low-noise operation

Double-layer glass condenser, high condensation efficiency, reduce solvent loss

Optional explosion-proof system, suitable for hazardous chemical treatment

Application areas of rotary evaporator

✅ Pharmaceutical industry: extraction of active ingredients, concentrated drug solution, solvent recovery

✅ Food industry: extraction of natural flavors, concentration of food additives

✅ Chemical industry: solvent refining, post-processing of organic synthesis

✅ Biological research: DNA/RNA extraction, enzyme reaction purification

✅ Environmental analysis: pollutant detection, soil solvent extraction

How to choose a suitable rotary evaporator?

✅ Consider experimental needs: Rotary evaporators of different capacities are suitable for experiments and production of different scales, 1L is suitable for daily experiments, 5L is suitable for routine research, and 10L and above are suitable for industrial production.

✅ Choose a suitable condensation system: If the experiment needs to deal with low-boiling point solvents, a dry condenser can be selected, while for high-boiling point solvents, a water-cooled condenser is more suitable.

✅ Pay attention to safety performance: If flammable and explosive solvents are involved, it is recommended to choose equipment with explosion-proof motors and explosion-proof electronic control systems to ensure experimental safety.

✅ Supporting vacuum and cooling systems: The vacuum pump can effectively reduce the boiling point of the solvent and improve the evaporation efficiency, while the cooling circulation device can improve the condensation effect and reduce solvent loss.

Conclusion

The rotary evaporator is an indispensable core equipment in the laboratory. It plays an important role in scientific research institutions, pharmaceutical companies, chemical and food industries. Choosing a high-performance rotary evaporator can not only improve the efficiency of the experiment, but also ensure the accuracy and stability of the experimental results. If you have any needs or questions about the rotary evaporator, please feel free to contact us, we will provide you with professional solutions!
