Model Number:
OLT-HP-30Minimum Order Quantity:
1Compliance:
CE CertifiedVoltage:
AC108V~240VPower(W):
10KW（Heating power）Automatic Grade:
Semi-AutomaticCapacity:
30LUse pressure:
22 MpaService temperature:
350℃Dimension(L*W*H):
950*850*1005 mmLead Time:
6-8DayWe design and manufacture high pressure stirred autoclave, pressure upto 35Mpa and temperatures up to 450°C in various material of constructions like SS-304/304L, SS-316/316L, hastelloy B/C, monel, inconel, nickel, titanium, zirconium etc. from laboratory to pilot-plant scale for various applications. With the evolving needs of the industry for enhanced productivity and lower cost of production;
Model
OLT-HP-O5
OLT-HP-O1
COLT-HP-25
OLT-HP-5
OLT-HP-1
OLT-HP-2
OLT-HP-2
OLT-HP-5
OLT-HP-10
OLT-HP-20
OLT-HP-30
Capacity (L)
0.05
0.1
0.25
0.5
1
2
3
5
10
20
30
Setting pressure (Mpa)
22
Setting temperature (℃)
350
Accuracy of temperature
control (℃)
±1
Heating method
General electric heating, the others are far-infrared, thermal oil, steam, circulating water, etc
Stirring torque (N. cm)
120
Heating power (kW)
0.6
0.8
1.5
2
2.5
4
7
10
10
Temperature controller
Real~time display and adjust the speed, temperature, time, heating voltage, with standard PID automatic temperature adjustment meter.
Temperature controller
working environment
Ambient temperature 0-50℃, relative humidity 30-80%
Lifting mode
manual lift or electric lift
Material
304/316 Stainless steel, Titanium, also can plus PTFE liner
This equipment is used for various applications such as chemical reactions like alkylation, amination, bromination, carboxylation, catalytic redution, chlorination, dehydrogenation etc., also for production of chemical in small quantity, soaking of diamonds or precious stones, corrosion testing, reaction calorimetry etc.

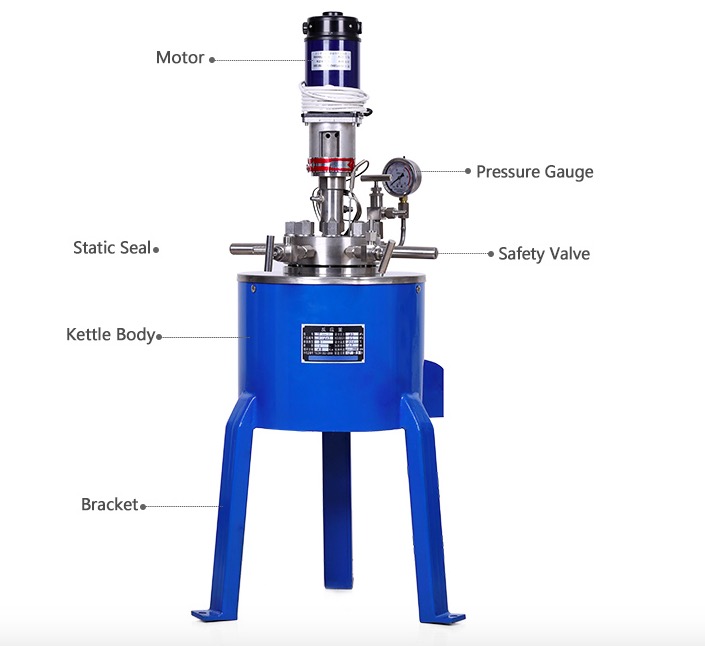

Controller-Digital Display
Intelligent digital temperature control meter, with the functions of automatic temperature control, speed display and stepless speed control, equipped with heating electric meter, motor ammeter, working time display meter.
Static Seal-No Leakage
Reaction vessel stationary ring and stationary ring base create the perfect seal with no need for o-rings, according to their structural features, contact stress increased with increasing working pressure, sealing performance is better under the high pressure.
Pressure Gauges-Seisnic Stability
Seismic pressure gauges for the environment places severe vibration, the pulse of media tolerance, and the impact of a sudden unloading, gauges clear instructions and stability, with good vibration resistance.
Safety Valve-Safe and Sellable
The reaction kettle equipped with safety valve, that adopted blasting diaphragm, blasting numerical error is small, instantly exhaust gas fast, safe and reliable. Each valve adopts needle valve, reciprocating closed form, seal is reliable and durable. All safety valves with resonable installation and releasing unblocked.
Packaging:
-The glass parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
Shipping:
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent.
| Shipping method | Note |
|
Express |
Door to door, very convenient, don't need to clearance or pick-up |
| By air |
Airport to airport, you need to do the customs clearance and pick up the goods at your local airport, which you can have a local shipping agent to do for you. |
| By sea |
Port to port and you need to do the customs clearance and pick-up the goods
at your local port, which you can have a local shipping agent to do for you. |
