Lead Time:
3-5 daysShipping Port:
XiamenModel Number:
OLT-SD-3LCompliance:
CE CertifiedMinimum Order Quantity:
1Operation method:
PLC ControlMixing method:
Touch ScreenCapacity:
3L/hWarranty:
1 year

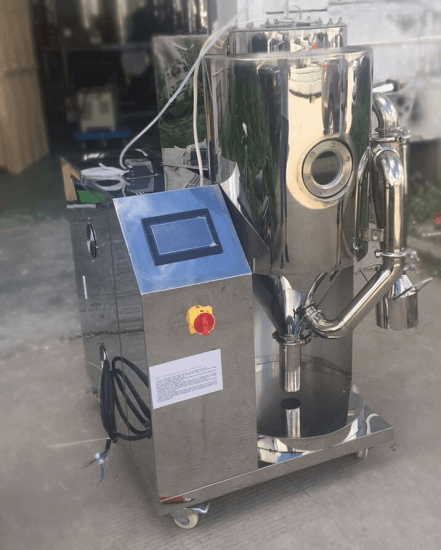

Lab High Efficiency Spray Dryer For Milk
Isolation equipment adopt high speed centrifuge spray drying technology, which is especially suitable for drying the heat sensitive materials, after drying, there's no need for smashing and sorting, so as to reduce the operation procedures and save your time.
Parameter
|
Model
|
OLT-SD-3L
|
|
Max capacity
|
1500-3000ml/h
|
|
Temperature range of Inlet air
|
30℃-300℃
|
|
Temperature range of outlet air
|
30℃ -140℃
|
|
Precision of temperature
|
± 1℃
|
|
Dryer time
|
1.0-1.5 S
|
|
Speed of squirmy pump
|
30-3000ml/h
|
|
Consume of dryer air
|
0-330m3 /h, max pressure: 686Pa
|
|
Consume of spray air
|
0-4.2m3 /h, spray pressure: 2-5bar
|
|
Spray system
|
2 liquid nozzles with standard 0.7mm jet
options of 0.5/1.0/1.5/2.0/2.5mm
|
|
Spray direction
|
downwards co-current
|
|
Power
|
4.5KW 108V-240V
|
|
Dimensions
|
800*780*1450 ( mm ) L*W*H
|

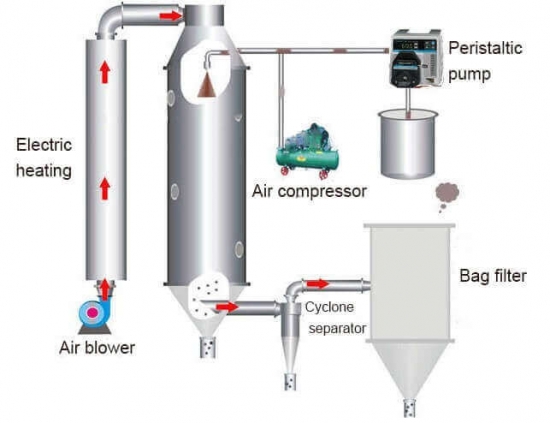

Air through filtering and heating, enter the hot air distributor which is at the top of spray dryer, hot air spiraling evenly into the drying chamber. Liquid through the high-speed centrifugal automizer which is at the top of drying chamber, (rotating) centrifugal spray into tiny fog droplet, then contact with the hot air flow, drying finish product in a very short time and whereabouts. Finished product output continuously between the drying tower bottom and cyclone separator, exhaust through dust catcher emptying by induced draft fan.
Ollital Technology would like to establish win-win business cooperation with distributors all over the world.
Stainless steel spray dryer is designed to ensure that all functions are simple to select and adjust, to quickly achieve the optimum conditions for spray drying
