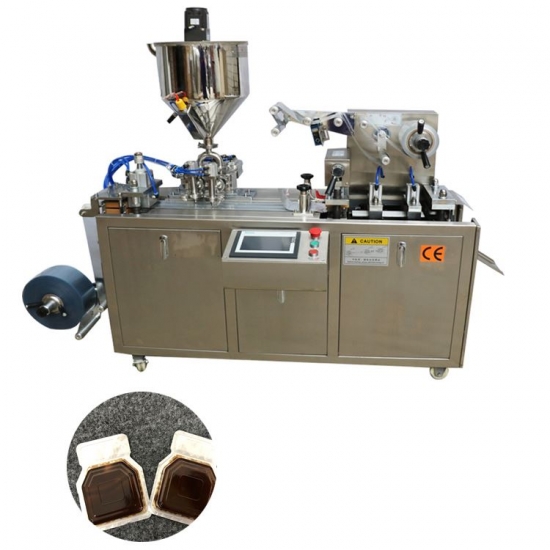

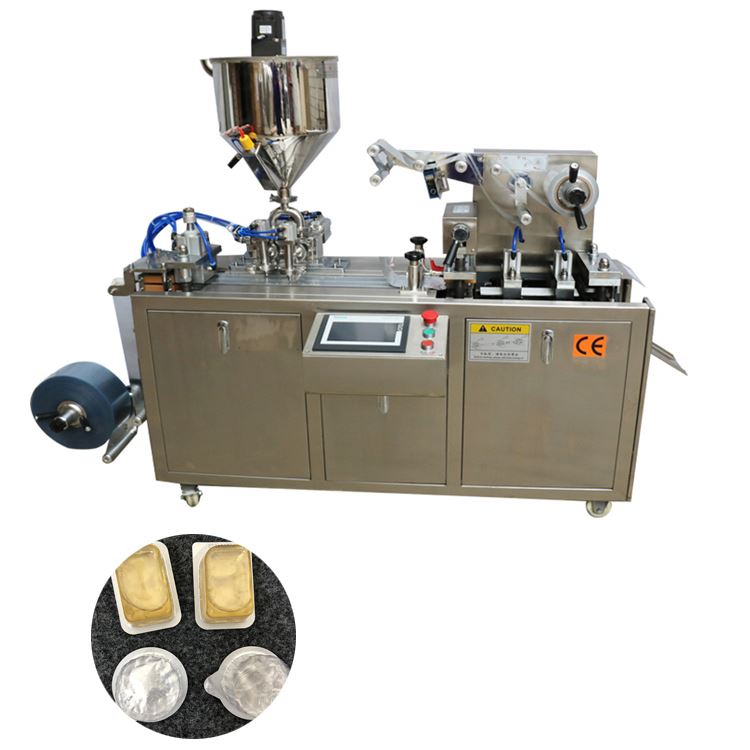

Automatic Aluminum Plastic Honey Blister Packing Machine Liquid Blister Packing Machine

Lead Time:
3-5
Product Orgin:
China
Shipping Port:
Xiamen
Minimum Order Quantity:
1
Power:
380V/220V 50Hz 2.8kw
Weight:
450

Contact Now

email：kevin@ollital.com email：kevinollital@gmail.com

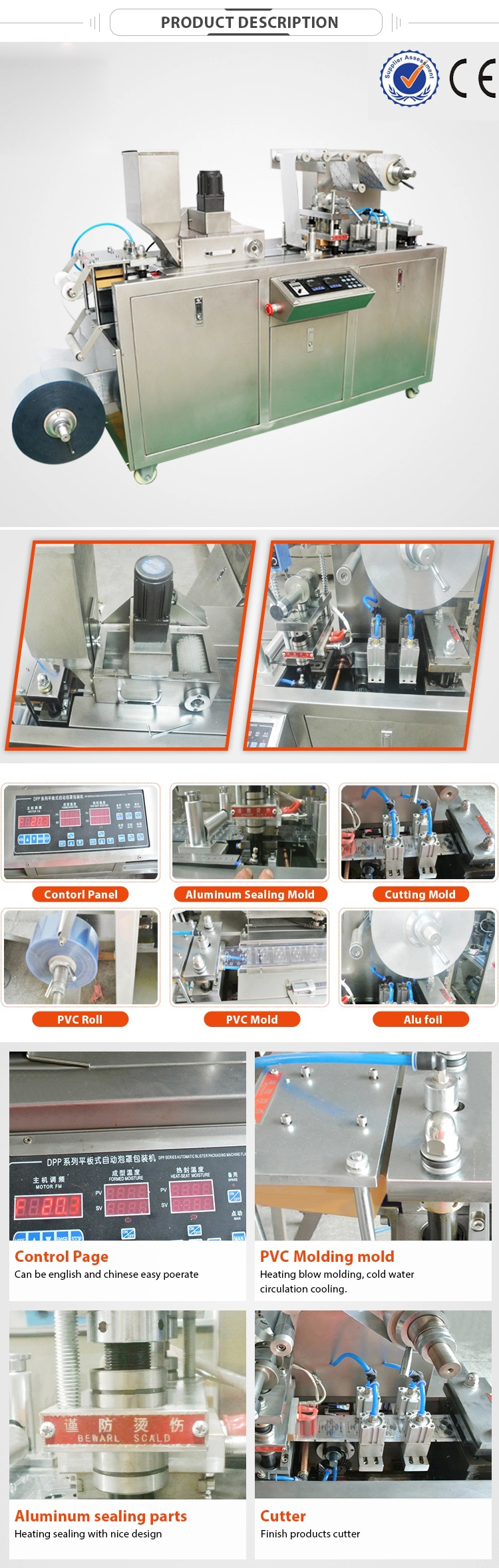

Product Details

Product Description

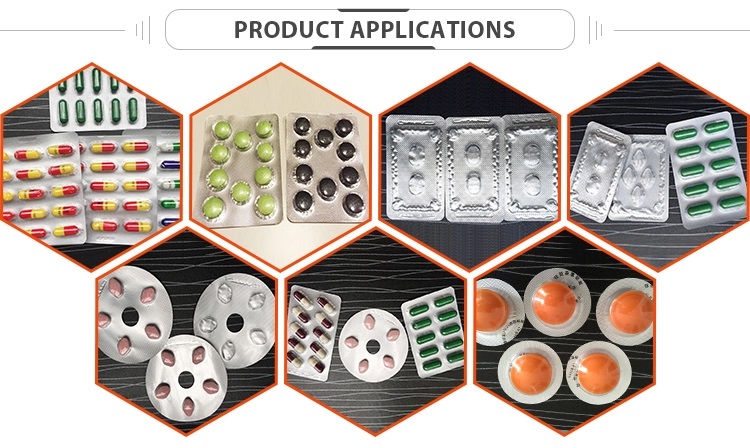

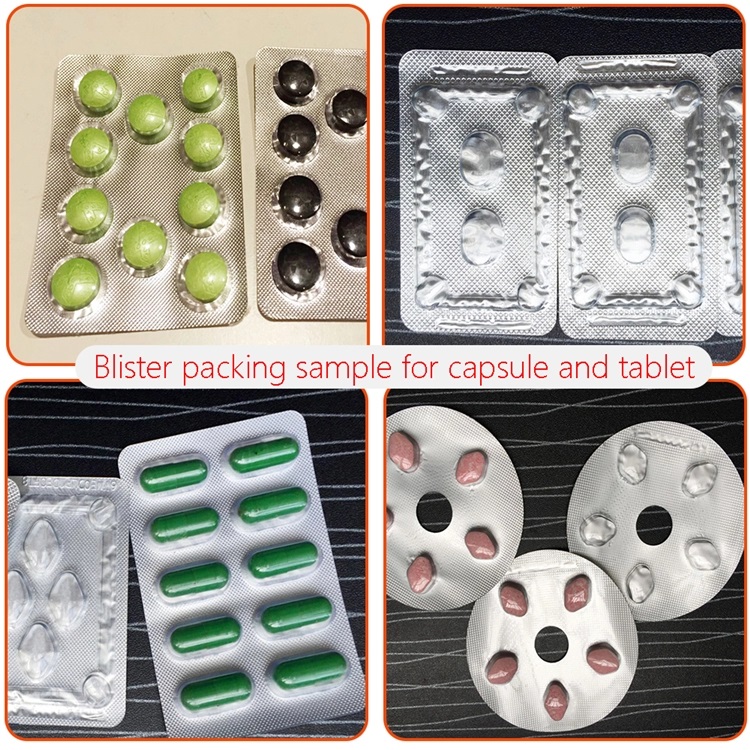

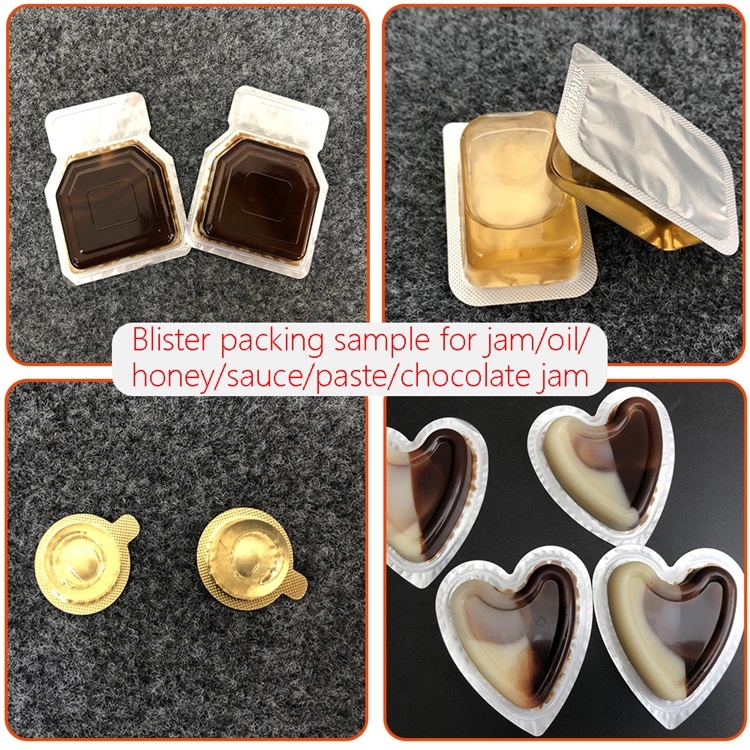

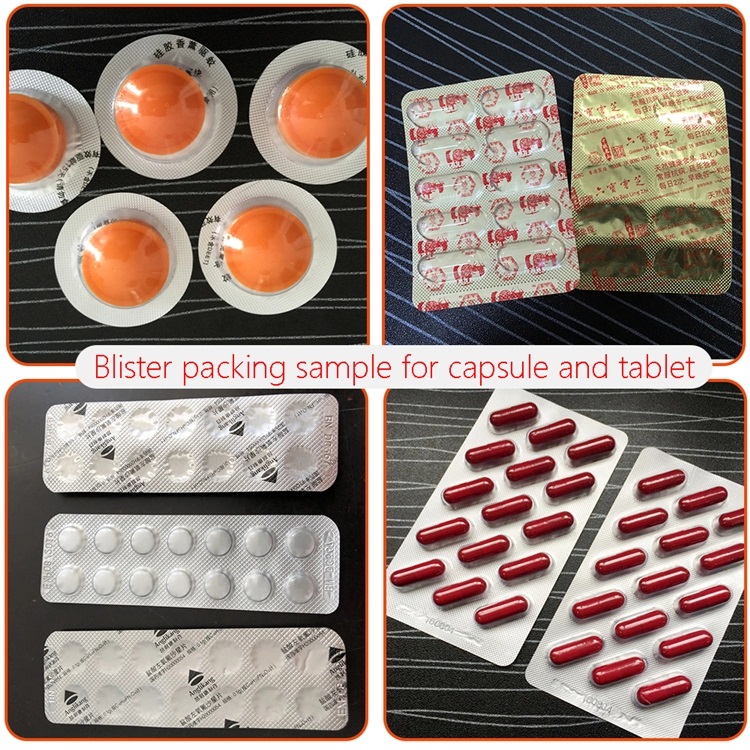

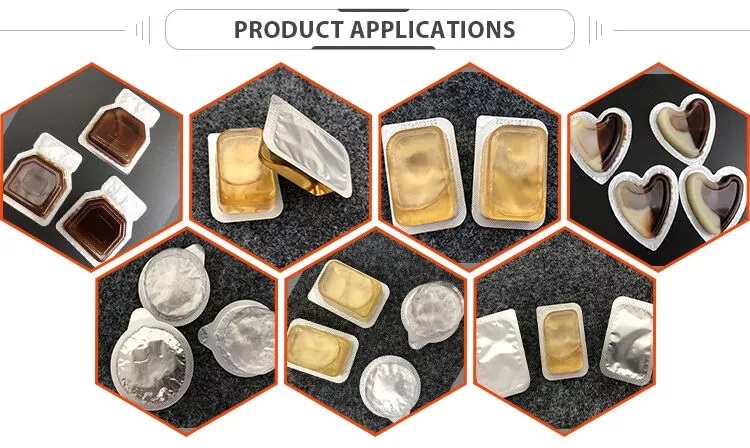

This machine is specially designed for laboratory, dosage room in hospital, mini-pharmaceutical factory, mini-motor test workshop, and medicine institute. This machine is flat plate structure, positive pressure and convenient to operate. It is small and the stroke Length is adjustable. It is suitable for AL/PL package for any shape of objects, such as capsule, tablet, pellet, sugar-coated tablet, leisure candy, milk tablet, mini metal etc.

Technical Parameter

Cutting Frequency (Times/mim)	27
Capacity ( pcs/h)	2600-4000
Stroke (mm)	40-110
Max. Forming Area and Depth(mm)	60×100×14
Air Compressor(m³/min)	≥0.3 (provided by user) oilless air compressor better
Air Pressure (Mpa)	0.4
Standard Plate(mm)	80×57 can be manufactured as user's requirements
Total Power	380V/220V 50Hz 2.8kw
PVC Hard Pieces(mm)	0.25-0.35×90
PTP Aluminum Foil(mm)	0.02-0.035×90
Mould Cooling	tap water or recycling water
Overall Dimensions(mm)	1300×400×1070(L×W×H)
Weight(kg)	450
