Item NO.:
HS-S01Lead Time:
7daysShipping Port:
XiaMen

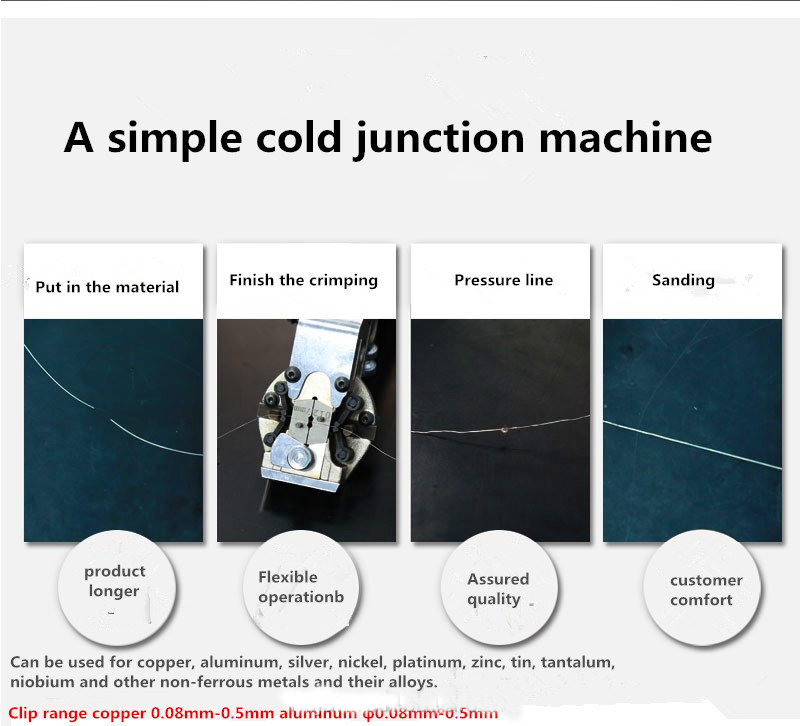

1. Scope of application of cold welder: Used for cold pressure welding of copper wire, aluminum wire and nonferrous metals such as gold, silver, nickel, platinum, zinc, tin, tantalum and niobium and some alloy wires.
2.the advantages of cold welder: No power supply and flux are required; the resistance and conductivity of the connector are unchanged compared with the bus bar; the copper and aluminum wire will not oxidize; the operation is portable and the deposits are easy to remove.
3. Under the action of concentrated pressure load, the surface area of the two contact surfaces that need to be connected is expanded. The expansion of the area causes the original protective film on the surface to hinder the welding to break. The bonding between atoms can continue to be welded by continuing to apply force.
|
Model |
HS-S01 |
|
Applicable materials |
Copper Aliminum Gold Silver nickel platinum Zinc tin |
|

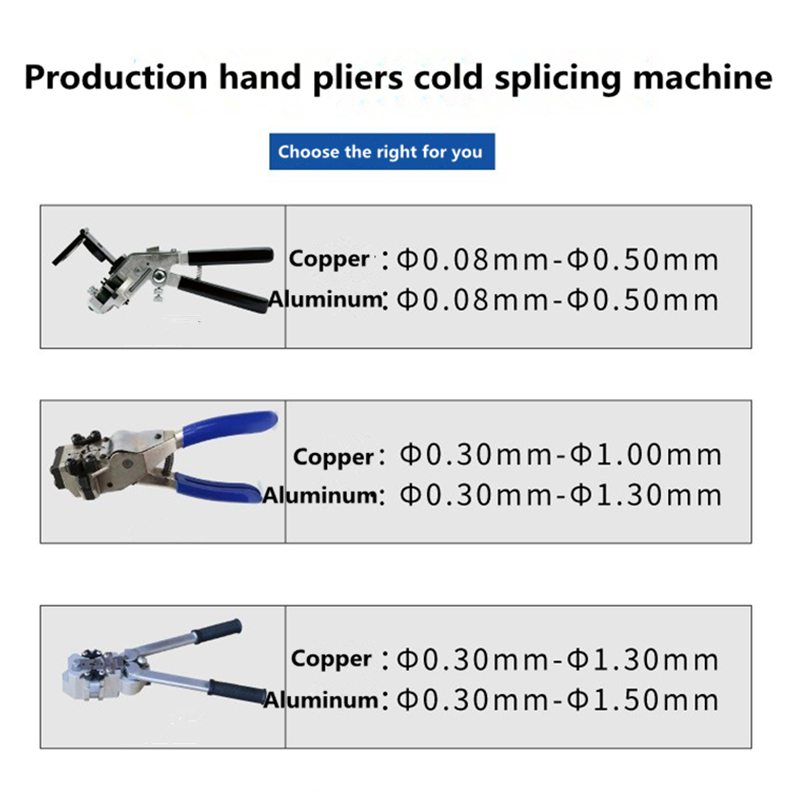

Joint range for copper |
φ0.08mm-φ0.5mm |
|
Joint range for aluminum |
Joint range for copper |
|

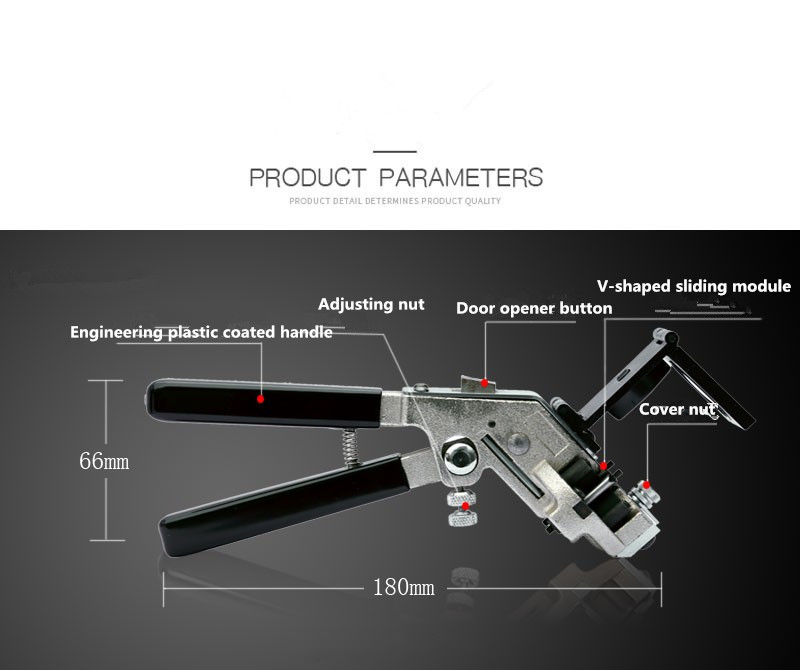

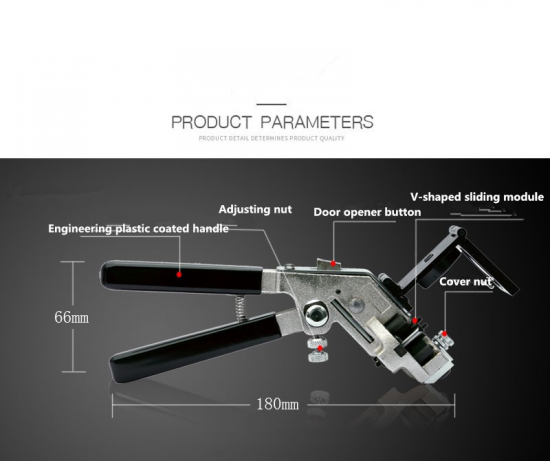

Machine size |
190x50x60mm |
|
Machine Weight |
0.7KG |
Ollital Technology would like to establish win-win business cooperation with distributors all over the world.

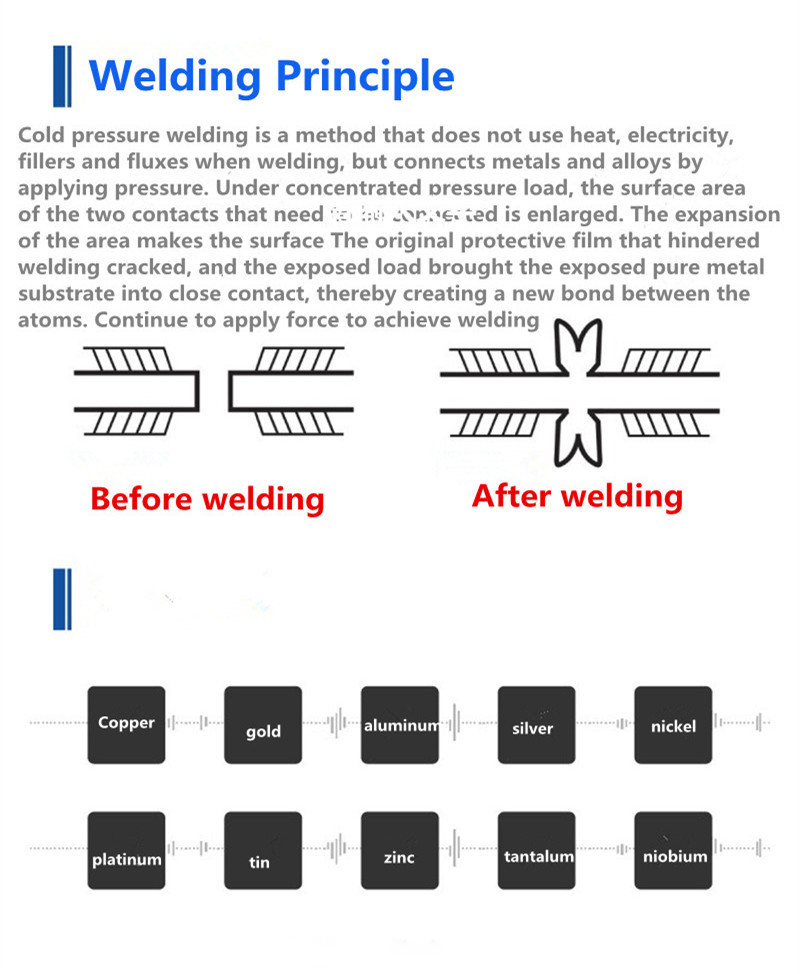

Principle of cold welding:Cold-pressure welding is a method of connecting metal and alloy by exerting pressure instead of using electricity, heat, fillers and fluxes. Under concentrated pressure, surface area of both contact surfaces expanded, thus cracking the original protective layer that hampering welding, and outer force enable close connection of exposed pure metal basis, hence generating new atomic combination, and welding is realized by continuously increasing force.
Scope of application of cold welder: Used for cold pressure welding of copper wire, aluminum wire and nonferrous metals such as gold, silver, nickel, platinum, zinc, tin, tantalum and niobium and some alloy wires.
Principle of cold welding:Cold-pressure welding is a method of connecting metal and alloy by exerting pressure instead of using electricity, heat, fillers and fluxes. Under concentrated pressure, surface area of both contact surfaces expanded, thus cracking the original protective layer that hampering welding, and outer force enable close connection of exposed pure metal basis, hence generating new atomic combination, and welding is realized by continuously increasing force.
Scope of application of cold welder: Used for cold pressure welding of copper wire, aluminum wire and nonferrous metals such as gold, silver, nickel, platinum, zinc, tin, tantalum and niobium and some alloy wires.
