Lead Time:
3-5 daysModel Number:
A730Compliance:
CE CertifiedMinimum Order Quantity:
1Capacity:
15kgWarranty:
1 yearDry ice blasting is a revolutionary blasting method that uses small, compact dry ice pellets as the blasting material. The dry ice pellets are accelerated in a jet of compressed air similar to that used in traditional blasting methods. Dry Ice Blasting will often allow a company's production equipment to be cleaned while in operation without the need for dismantling and costly downtime. Dry Ice Blasting is non-abrasive, and surfaces are therefore treated gently. The system can thus be used on easily-damaged surfaces like nickel, chromium and soft aluminum. The process is dry, and no waste materials are produced. This means that cleaning can be carried out even during short production shutdowns.
Parameter
Model
A625
A730
B3
B3+
T6
Voltage
AC220V
AC220V
AC220V
AC220V
AC220V
Airflow
1-12.0m3/min
2-12.0m3/min
1-4.0m3/min
0.5-4.0m3/min
0.5-4.0m3/min
Pressure
0.2-1.6Mpa
0.2-1.6Mpa
0.1-0.8Mpa
0.1-0.85Mpa
0.1-0.8Mpa
Dry ice blasting volume
0-2kg/min
0-4kg/min
0-1.2kg/min
0-1.2kg/min
0-0.6kg/min
Capacity
15kg
25kg
10kg
13kg
10kg
Power
0.75Kw
0.75Kw
0.37Kw
0.37Kw
0.37Kw
Equipment weight
56.5kg
75kg
40kg
55kg
50kg
Overall dimensions
44* 68* 78cm
40*77*92cm
51*30*71cm
60*40*85cm
51*30*71cm

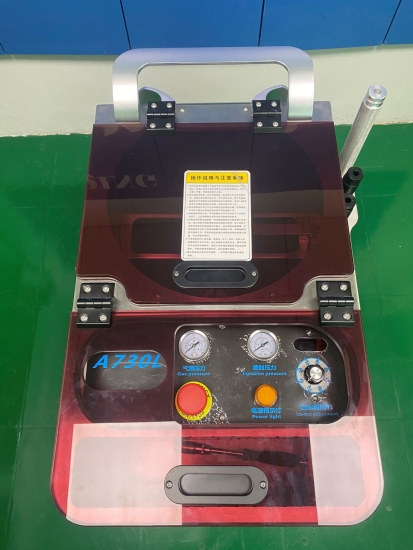

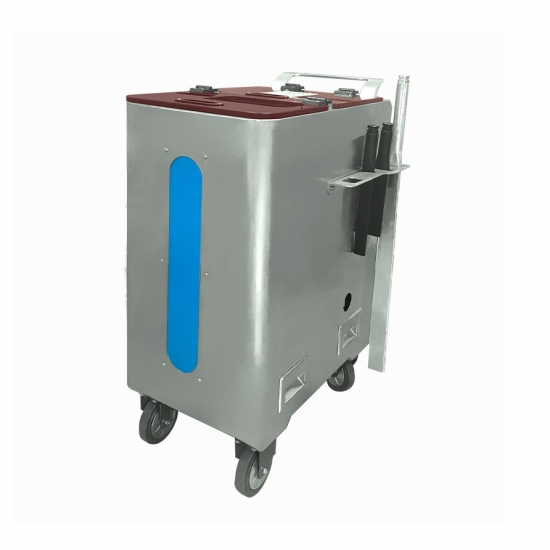

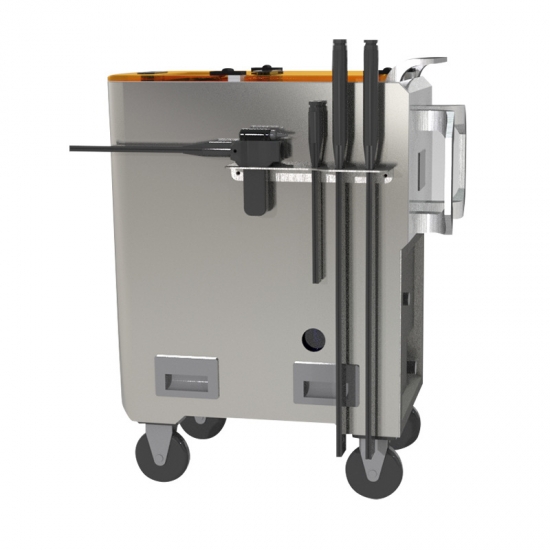

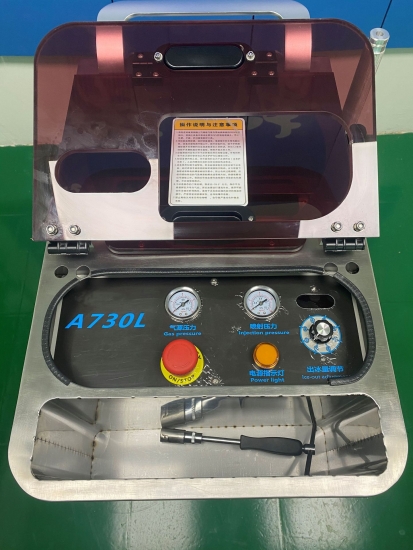

Detailed Images
Feature
Using the most advanced dry ice air pressure mixing feeding system, the industry's unique quick-change rollers are matched with different caliber nozzles, which can be applied to: EVA molds in the printing industry, petrochemical industry, foundry industry, vulcanization molds, motor power, aviation and aerospace industries, Heating industry, metal surface rust and paint removal, fan impeller surface coating, second-hand refurbishment and other industrial cleaning.
Working Principle
Dry ice blast cleaning (dry ice blast cleaning), also known as cold spray technology, uses compressed air as a power and carrier, and uses dry ice particles as accelerated particles. The dry ice particles are sprayed out at a rate close to the speed of sound through a dedicated dry ice blast cleaning machine. , And carry a large amount of kinetic energy. When it collides with the surface of the dirt, the above-mentioned kinetic energy is transferred to the dirt. The dry ice instantly expands about 800 times the volume of the body, forming a physical cleaning method that embrittles the dirt and peels off the surface of the object. Because dry ice blasting volatilizes and sublimates instantaneously, it will not cause any damage to the surface of the object.
