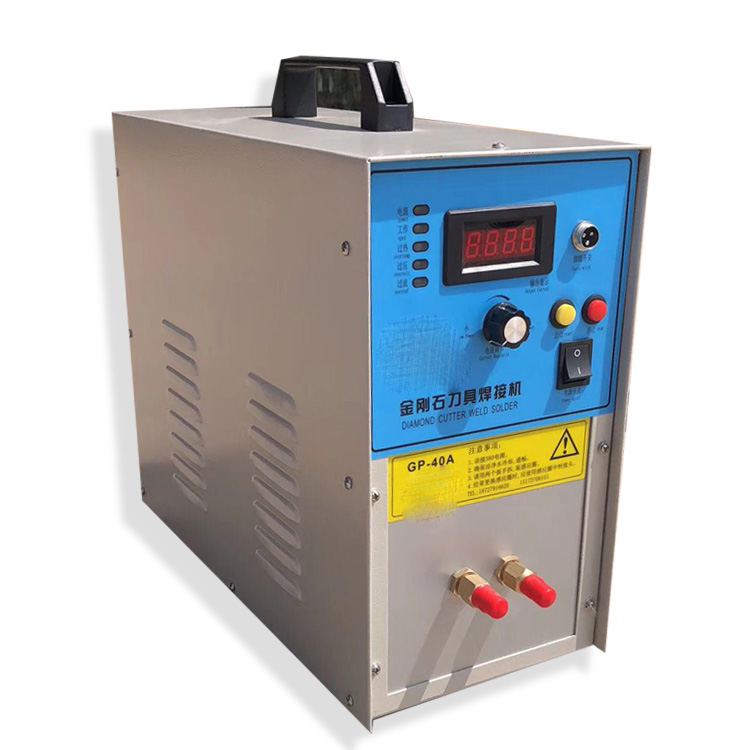

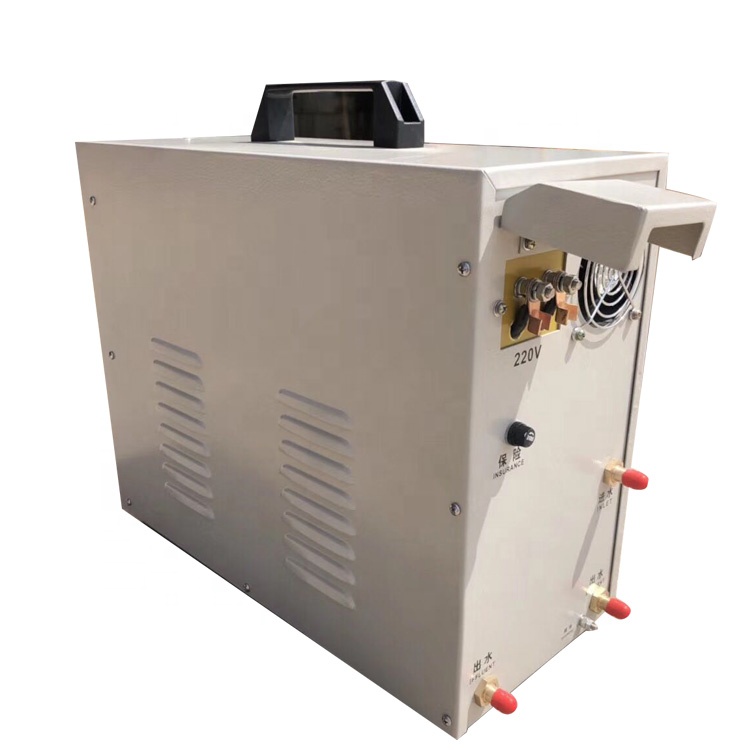

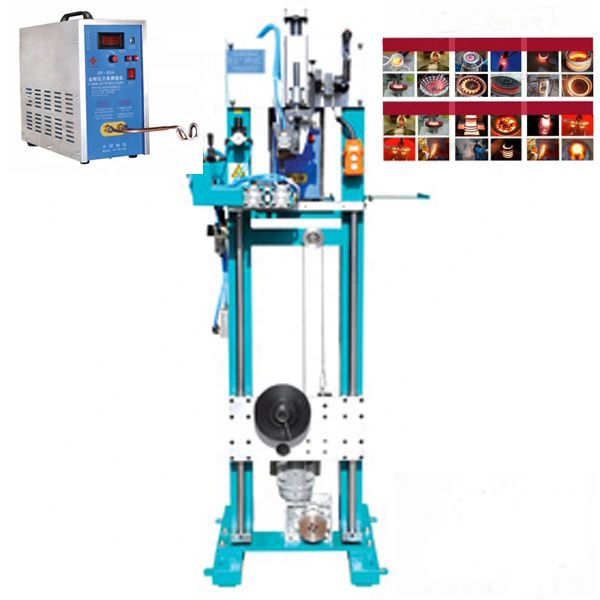

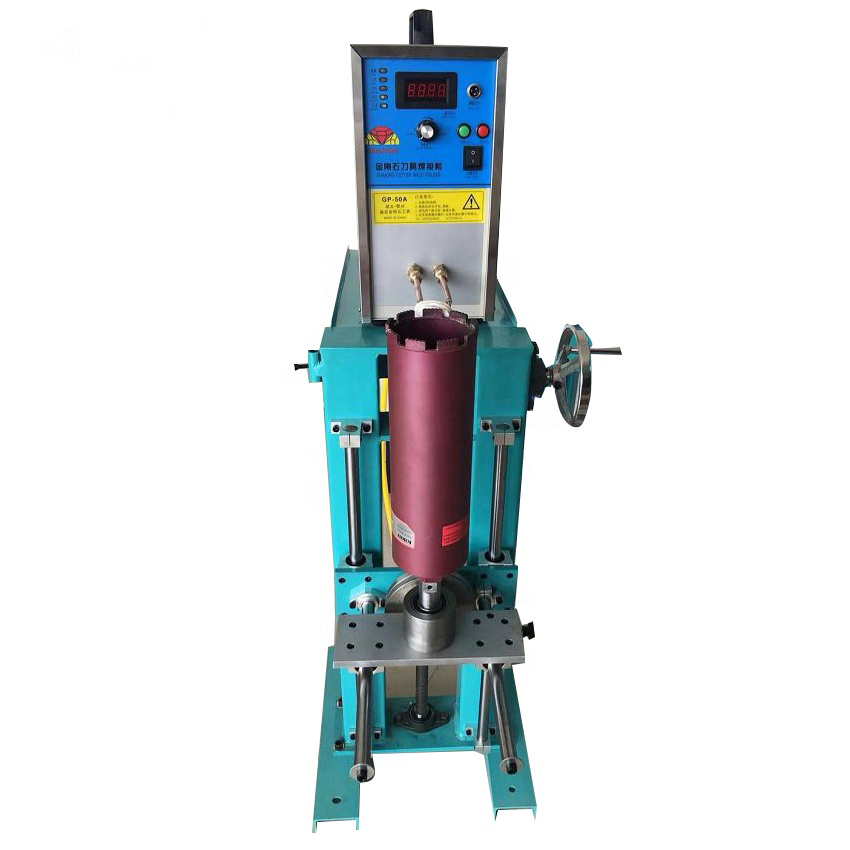

Frequency Induction Copper Brazing Machine

High frequency, heated quickly, its power consumption is only 20%~30% of eletronic tube induction heating machine and other heating style.
  • Item NO.:

    AB-WELDM
  • Lead Time:

    7days
  • Shipping Port:

    XiaMen
  • Product Details


Main characteristics:


1. Adoping MOSFGT and IGBT inverting device, tracking frequency automatically

2. High frequency, heated quickly, its power consumption is only 20%~30% of eletronic tube induction heating machine and other heating style.

3. Security and reliability, the equipment have the secure voltage and it's secure to operate

4. Manual, automatic regulating automatically, it can protect itself from over voltage, over current, lack of water, phase fail, over hot, etc

5. It has no open-fire, noise and pollution, be suit for the environmental protection and fire, improve the image of the company

6. Recommend usage: Weld, forging, hot cooperate, melting, quenching, anneat etc

7. Simple Installation: Power connection, water connection, switch the power on , no need professional work to install.





Specification

Model
TLSGP-10KVA
TLGP-40A
TLGP-50A
TLGP-70A
Input Voltage
3 phase 380V 50/60HZ
180--250V
50--60Hz
180--250V
 50--60Hz
 180--250V
 50--60Hz
Oscillate power max
26KWA
9KWA
12KWA
15KWA
Max input current
1500A
1200A
1300A
1400A
Oscillate frequency
30-100KHZ
30-100KHz
30-100KHz
30-100KHz
Cooling water desire
>0.2MPa 2-5L/Min
>0.2MPa 2-5L/Min
>0.2MPa 2-5L/Min
>0.2MPa 2-5L/Min
Duty cycle
100% 40°C
100% 40°C
100% 40°C
100% 40°C
Dimensions(L*W*H)
580mm*300mm*460mm
580mm*300mm*460mm
580mm*300mm*460mm
580mm*300mm*460mm
Net weight
30kg
29KG
29KG
29KG
Copper Cable wire
6-10 (squaremeters)
6-10 (squaremeters)
6-10 (squaremeters)
6-10 (squaremeters)

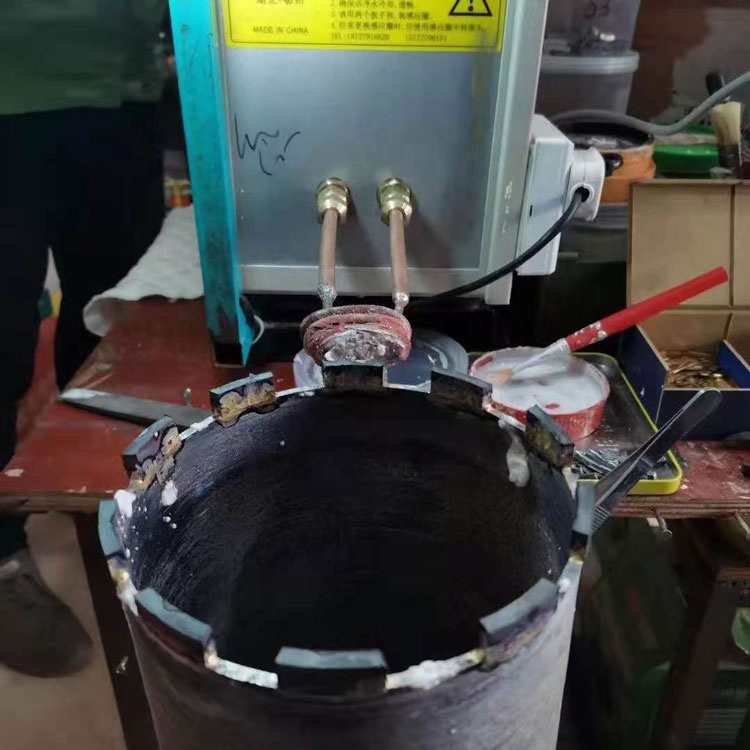

Suitable for welding
all diamond segment
diamond core bit segment and ø300mm diamond segment
ø300-800mm diamond segment
ø1000-3000mm diamond segment
Power source
380V electricity
180-250V
180-250V
180-250V

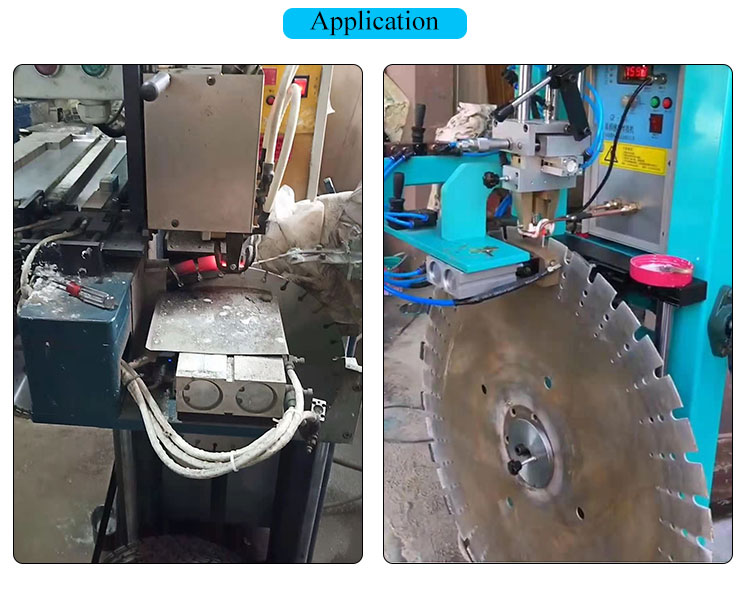

Application
