Lead Time:
1-3 daysModel Number:
OLT-A45Minimum Order Quantity:
1Voltage:
380V,50HZ,3PHASEWarranty:
1 yearThe machine body is made of square steel, with frequency converter controlled traction, friction single winder and elevator, which is suitable for blowing HDPE/LDPE industrial and agriculture film.
Parameter
Model
DP-L45
DP-L50
DP-L55
DP-L60
DP-L65
DP-L70
Suitable material
HDPE,LDPE,LLDPE
Reduced diameter of film(mm)
200-500
300-600
400-800
300-900
300-1000
400-1200
Film thickness of (mm)
HD:0.009-0.05 LD:0.02-0.15
Max.output(kg/h)
HD40
HD 45
HD 55
HD 60
HD65
HD70
LD45
LD 50
LD 60
LD65
LD70
LD75

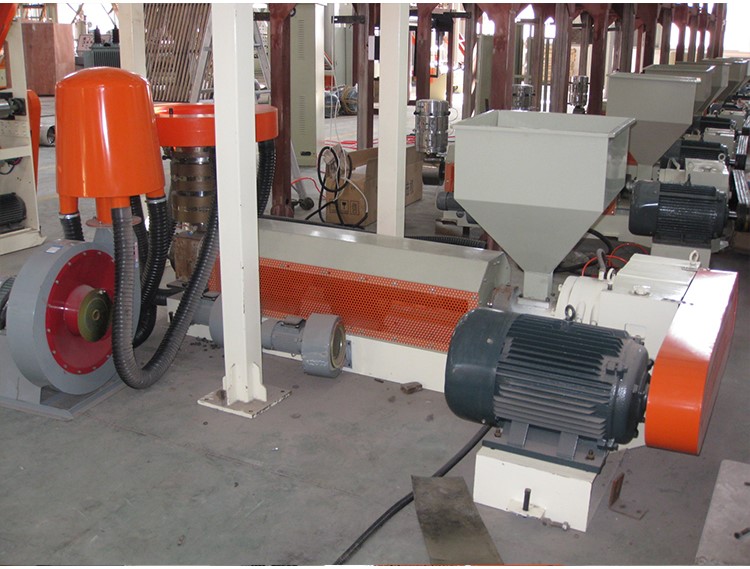

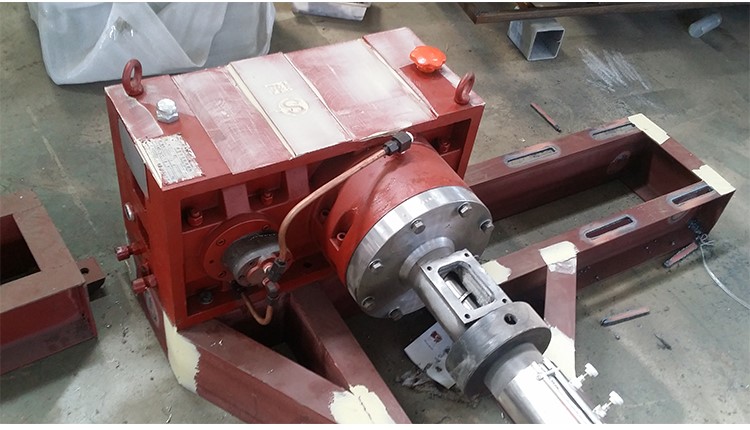

Extruder
Screw diameter
45
50
55
60
65
70
Screw L/D
28:1/30:1
Screw material
Sacm-645/38 crmoala
Cylinder material
Sacm-645/38 crmoala
Cylinder cooling(w)
250*2
250*2
370*2
550*2
550*3
550*3
Main motor(kw)
7.5
11
15
18
22
25
Cylinder temperature control
3
3
3
3
3
3
Average power consume(kw)
10
12
18
25
30
32
Type of die
Die size(mm)
HD60/80 LD100/120
HD60/100 LD120/150
HD80/100 LD180/200
HD100/120 LD200/220
HD120/150 LD220/250
HD150/180 LD250/280
Temperature control
3
3
3
3
3
3
Air ring
1
1
1
1
1
1
Air blower power (kw)
1.5
2.2
3
3.2
4
4.5
Center steady stick
1
1
1
1
1
1
Take up unit
Roller width(mm)
160*650
160*850
165*1100
165*1200
165*1400
160*1800
Effective width(mm)
500
600
800
1000
1200
1500
Height adjustable Type(mm)
800
800
800
800
800
800
Take-up speed(m/min)
10-100
10-100
10-100
10-100
10-80
10-80
Take-up motor(2.2)
0.75
0.75
1.1
1.1
1.5
1.5

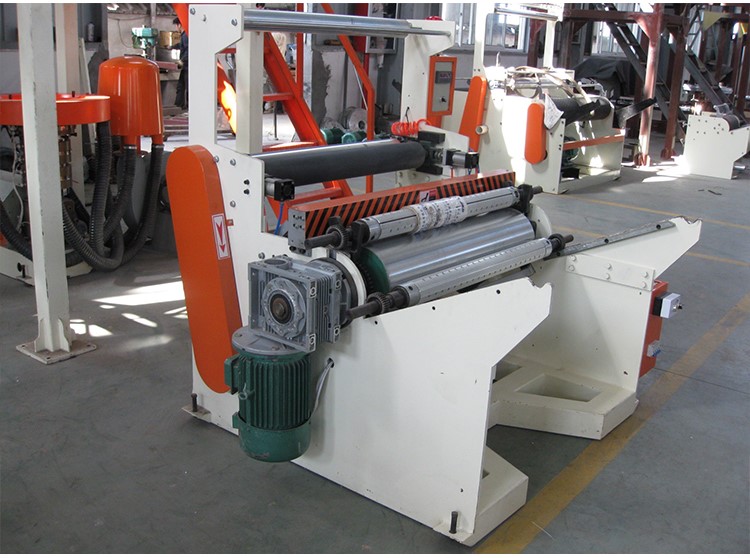

Winding Unit
Type
Surface friction type
Winding motor(N.m)
10
10
10
10
10
10
Winding speed(m/min)
10-100
10-100
10-100
10-80
10-80
10-80
Voltage
380V,50HZ,3PHASE
Outline diameter(L*W*H)(mm)
5000×1800×4200
5500*2200*4500
5500*2500*5200
5000*2400*4200
5500*2500*5200
5800*7800*6300
Weight(kg)
2000
2200
2500
2800
3000
3200
Optional Parts
1. Auto Loader

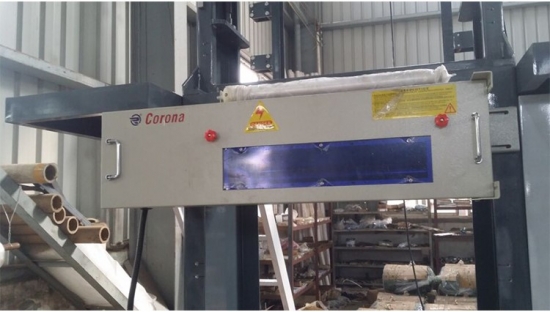

2. Film Corona Surface Treater
3. Rotary Die Head
4. Air Compressor
5. Mechanics Screen Changer
6. Double Winder
7. Air shaft

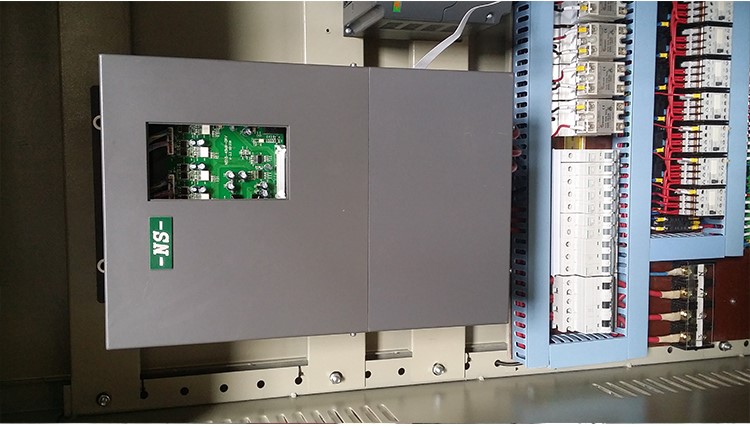

Detailed Image
