High Efficient Coal Charcoal Crusher Machine

Good Quality Germany Congo Industrial Wet Coal Limestone Small Hammer Mill Crusher Pulverizer Pc400X300 Hammer Crusher for Sale
  • Item NO.:

    11-115KW
  • Lead Time:

    7days
  • Shipping Port:

    XiaMen
  • Product Details

Good Quality Germany Congo Industrial Wet Coal Limestone Small Hammer Mill Crusher Pulverizer Pc400X300 Hammer Crusher for Sale

Product introduction:

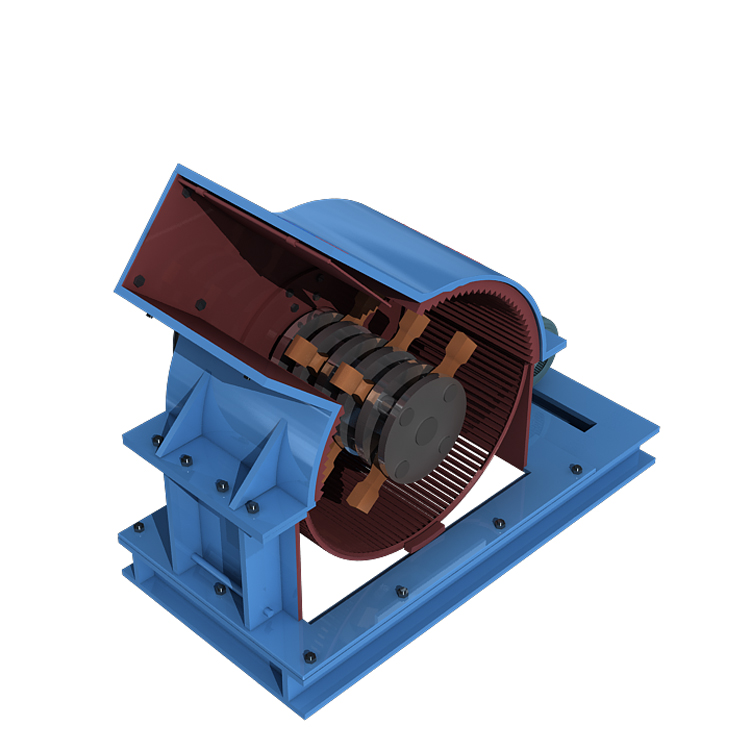

Hammer crusher is a crusher which can directly crush the materials with the big particle size to very fine particle. Hammer crusher is suitable for crushing medium hardness materials in cement, chemical industry, electric power, metallurgy and other industrial sectors, such as limestone, slag, coke, coal and other materials in the crushing and fine crushing operations.

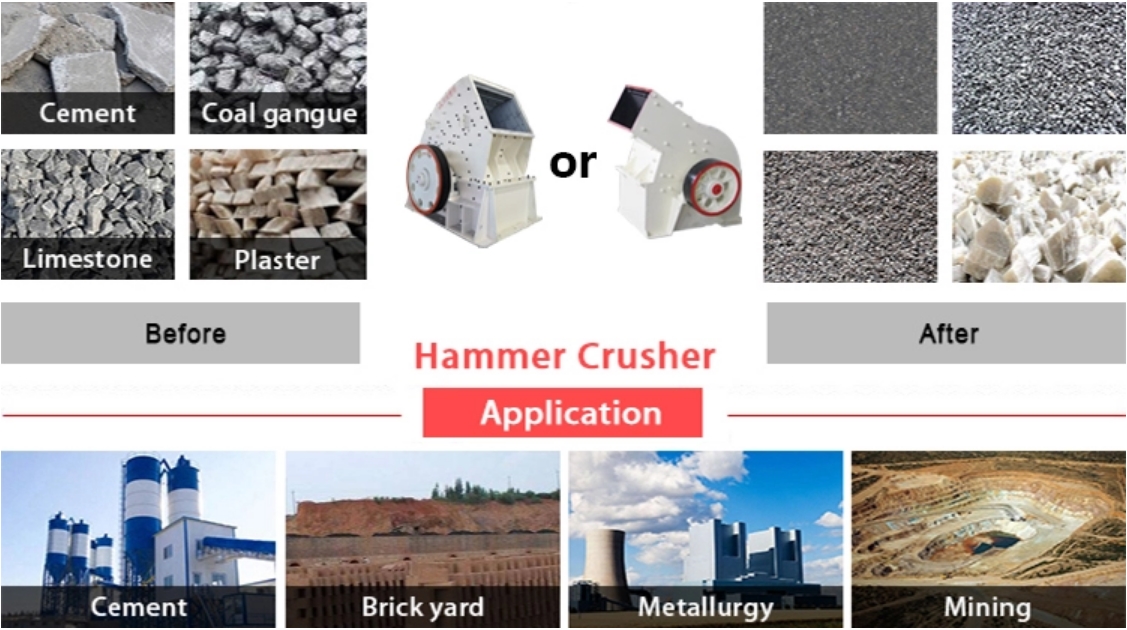

Application field:

Mainly used in cement, chemical, electric power, metallurgy and other industrial sectors broken medium hardness materials. Suitable for crushing limestone, coal gangue, gypsum, shale and other kinds of medium and hard brittle materials with compressive strength up to 180MPa Coarse, medium and fine operation.




Principle of Operation:

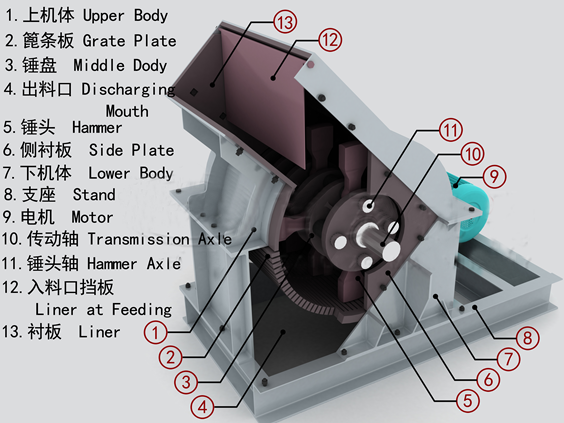

Hammer crusher mainly relies on the impact energy to complete the crushing material operations. When hammer crusher is working, the motor drives the rotor high-speed rotation, the material evenly into the crusher cavity, high-speed rotary hammer impact, shear tearing material, to the material being broken, and at the same time, the material's own gravity makes material from the high-speed rotating hammer head to the body panel and sieve, sieve plate at the bottom of the rotor, crushing material is less than the screen hole size in graded through the sieve plate, resistance is greater than the screen hole size of materials on the sieve plate continues to hit by the hammer and the grinding, crushing to the discharging granularity until the final through the sieve plate outside.

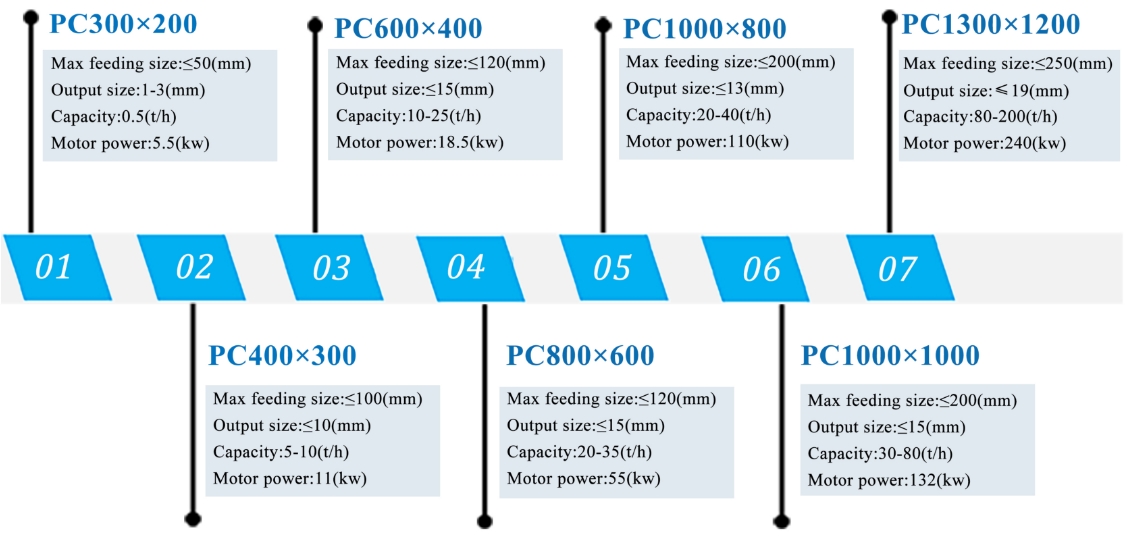

Parameters of Hammer Crusher

Model
speed(rpm)
feeding particle size(mm)
the grain size(mm)
capacity(t/h)
weight(t)
power(kw)
PC-400*300
1450
<=200
10
3-10
0.8
11
PC-600*400
1000
<=220
15
5-25
1.5
22
PC-800*600
980
<=350
15
10-50
3.1
55
PC-800*800
980
<=350
15
10-60
3.5
75
PC-1000*800
1000
<=400
13
20-75
7.9
115

Performance characteristics:

1. Advanced design technology, strong structure and impact resistance.
2, Large feed size, high yield, good shape.
3. Super crushing, coarse, medium and fine crushing in one step.
4. Compared with the same period last year, the output increased by 30%, and the needle flake (powder) decreased by over 20%, more energy saving.

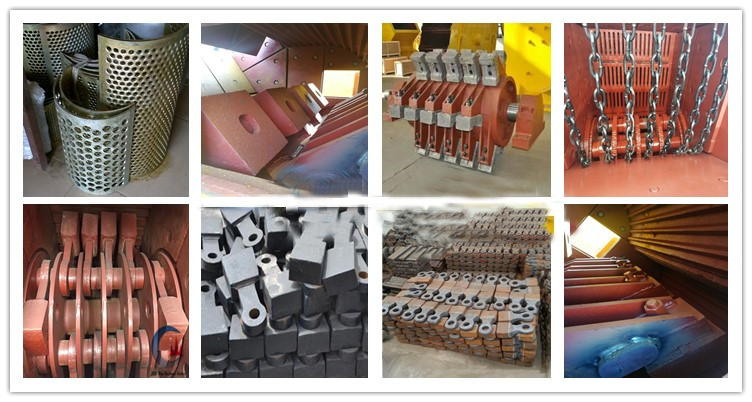

5, Hammer head, screen plate using chromium manganese alloy material, impact resistance, abrasion resistance is stronger.

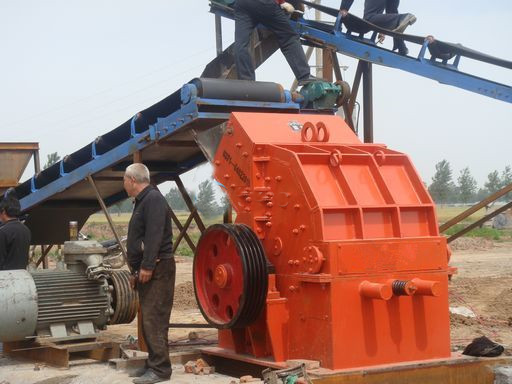

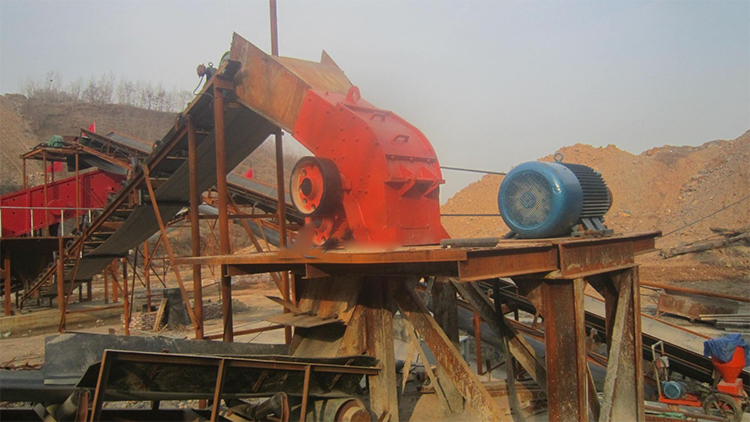

Successful case:

Packing&Shipping
