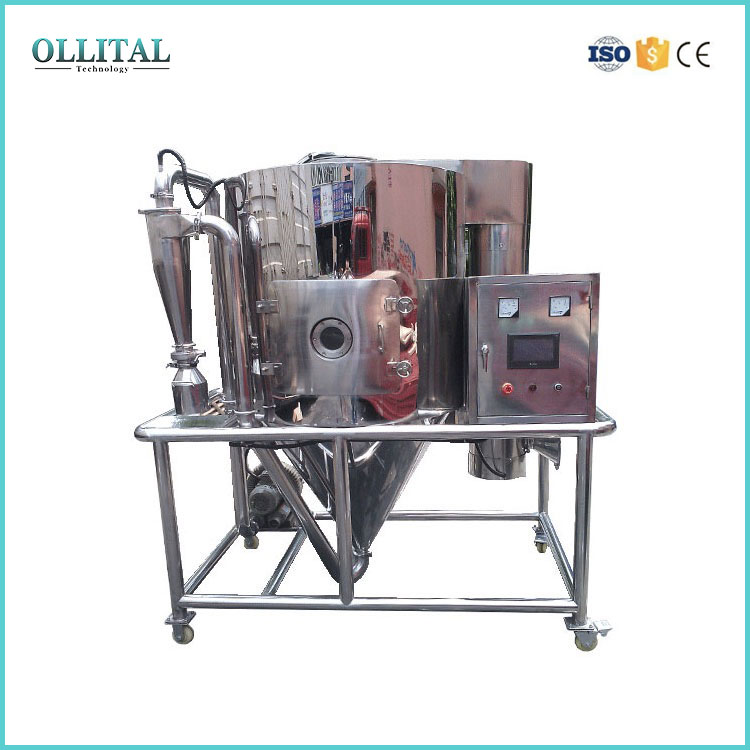

High-Speed 10L Stainless Steel Centrifugal Spray Dryer

Model Number:
OLT-SD-10L
Compliance:
CE Certified
Minimum Order Quantity:
1
Capacity:
10L
Voltage:
108V-240V 50/60HZ
Dimension(L*W*H):
2500*1600* 2800mm
Packaging Details:
Standard export wooden box
Delivery Time:
6-8 day

Contact Now

email：kevin@ollital.com email：kevinollital@gmail.com

Product Details

Item	Unit	OLT-SD8000B	OLT-SD-3L	OLT-SDS-3L	OLT-SD-5L	OLT-SD-10L
Max capacity	ml/h	1500-2000	3000	3000	5000	10000
Temperature range of inlet air	℃	40℃ ~ 300℃	30℃ ~ 300℃	30℃ ~ 300℃	140°C ~ 300°C Adjustable	50°C ~ 300°C
Temperature range of outlet air	℃	40℃ ~ 140℃	30℃ ~ 140℃	30℃ ~ 140℃	80°C ~ 90°C	30°C ~ 150°C
Temperature range of outlet air	℃	40℃ ~ 140℃	30℃ ~ 140℃	30℃ ~ 140℃	80°C ~ 90°C	30°C ~ 150°C
Spray system	/	Two-fluid nozzle	Two-fluid nozzle	Centrifugal nozzle	Centrifugal nozzle	Centrifugal nozzle
Precision of temp	℃	±1
Dryer time	S	1.0 ~ 1.5
Speed of squirt pump	ml/h	50 ~ 2000	3000	3000	5000	10000
Nozzle size	mm	0.5/0.7/0.75/1.0/1.5/2.0		\	\	\
Spray direction	/	Downwards co-current
Heater Power	/	3KW 108V-240V
Total power	/	10KW 380V
Heat source	/	Electric
Air compressor	/	Built-in oil-free air compressor
Dried powder restoring rate	%	≥95				≥98
Dimension	mm	940850 1500	17001100 150	17001100 150	1800930 2200	25001600 2800
Maximum moisture evaporation	Kg/h	2	3	3	5	10

1.Stainless steel material, arc corner design and polyester powder coated shell, prevents corrosion of acidity and alkaline air effectively.
2. Imported Schneider electrical components which is more stability.
3. PLC control system, make your research more easier and efficient.
4. Build in oil-free air compressor, without any noise.
5. Self-priming peristaltic pump, avoid secondary pollution, make sure whole process conducted steady and smoothly.
6. Narrow size distribution, more than 95% of the dry powders are in the same range of particles.
7. Innovative tower wall purging device, improves the material recycling rate.
8. High speed of drying, after spraying of the material liquid, the surface area of material will be increased greatly, make your research more efficient.
9. In the hot-air flow, 95%~98% of water can be evaporated at a moment. You can finish material drying only in several seconds.
10. Especially suitable for drying the heat sensitive materials, after drying, there's no need for smashing and sorting, so as to reduce the operation procedures and save your time.

Working principle and Working Process:

Air through filtering and heating, enter the hot air distributor which is at the top of spray dryer, hot air spiraling evenly into the drying chamber. Liquid through the high-speed centrifugal automizer which is at the top of drying chamber, (rotating) centrifugal spray into tiny fog droplet, then contact with the hot air flow, drying finish product in a very short time and whereabouts. Finished product output continuously between the drying tower bottom and cyclone separator, exhaust through dust catcher emptying by induced draft fan.

Pre-Sales Service:
1. Inquiry and consulting support.
2. Quick response with detailed quotation
3.Confirm price, quantity, shipment, lead time and payment terms)
4.Make order and sealed PI. (Trade assuranceorder is recommend to new clients for securing payment)

After-Sales Service:
1. One year warranty for the products described here.
2. Beyond the warranty period, product problems can also be solved by our company, but charge component cost and maintenance cost properly.
3.Reliable quality and thoughtful after-sale service: If you encounter problems when using our products, please contact us by telephone or e-mail, we will be ready to provide consulting, maintenance and other services immediately.
