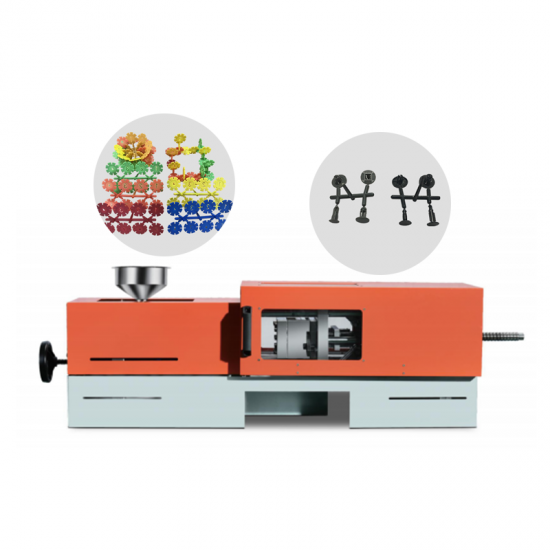

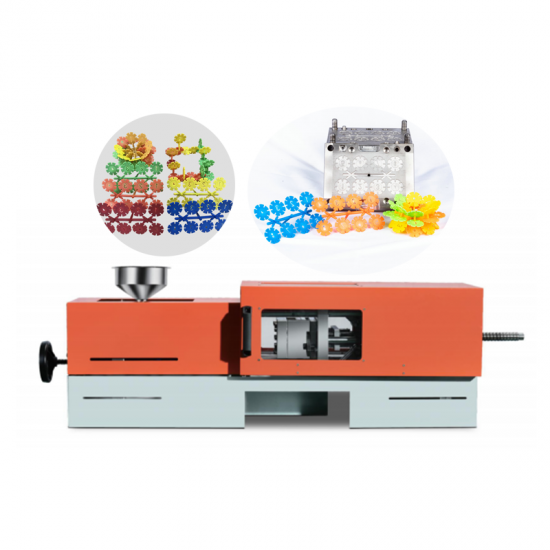

Horizontal Type Plastic Spoon Injection Moulding Machine

Lead Time:
3-5 days
Model Number:
XPM-12
Minimum Order Quantity:
1
Operation method:
PLC control
Screen:
Touch Screen
Warranty:
1 year
Packaging Details:
Export wooden package

Contact Now

email：kevin@ollital.com email：kevinollital@gmail.com

Product Details

This machine is small version of production machine. It is small, Easy to move, suitable for classroom teaching and small sample making.
The product includes mold clamping parts, sol injection parts, the host body, heating system, control system and feeding charging device.
This machine has the advantages of simple structure, easy handling, electricity and raw material saving, non-noise and non-pollution, can be used at any places with 220V power supply.

Technical Parameters

Model	XPM-12-X	XPM-12	XPM-17
Product Name	Small desktop injection molding machine
Clamping force	12T		15T
Voltage	Single phase, 220V 60Hz
Machine Size	14004751200mm	1300400450mm	1400475550mm
Machine weight	180kg	145kg	225kg
Screw diameter	18mm	18mm	22mm
Nozzle diameter	2mm	2mm	2mm
Mold opening stroke	85mm	75mm	125mm
Max. production weight	30g	30g	40g
Maximum mold installation size	200120150mm	200120150mm	175250170mm
Temperature range	0-400C
Applicable materials	PP, PE, PVC, ABS, PC, PA6, PS, PEI, PIMMA, TPU, PTE etc.
