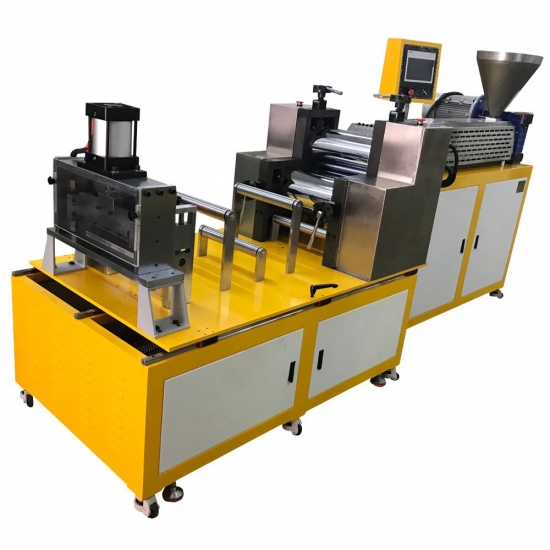

Lab Cast Film Machine with Calendering Tester

Lead Time:
1-3 days
Model Number:
OLT-432
Minimum Order Quantity:
1
Mixing method:
Touch Screen
Power:
3∮, AC380V
Warranty:
1 year

Contact Now

email：kevin@ollital.com email：kevinollital@gmail.com

Product Details

The casting unit is a new type of equipment developed by our company, mainly composed of a small casting machine. The casting machine is a mechanical equipment for the molding of rubber and plastic material cast film products. It is mainly used in the fields of casting film product molding, casting material formulation development, and casting material performance research, such as conveying materials to flow The casting machine is made of cast film products. Its advantage is light and practical. During use, the rotation speed of the casting roller and the traction roller can be controlled by the frequency conversion motor, so that the conveying speed of the material can be adjusted to produce various sheet products that meet the requirements of users. This machine is mainly composed of main drive motor, transmission device, extrusion device, feeding hopper, electric control system, casting die, two-roll calendering and so on. Its working principle is: the material flows from the hopper into the plasticizing and extruding through the extruding device into a casting state, and then comes out from the host through the die, and is calendered by a two-roll calender.

Parameter

Model	OLT-432(Single layer)	OLT-432-2(Double layers)	OLT-432-3(Three layers)
Screw diameter (mm)	25	25	25
L/D	1:33	1:33	1:33
Screw speed (Speed Adjustable)	0~95rpm	0~95rpm	0~95rpm
Main Motor power (KW)	2.2	2.2*2	2.2*3
Die	Hanger Type	Hanger Type	Hanger Type
Die lip width	300 or cunstomzied	300 or cunstomzied	300 or cunstomzied
Volume(HWD)mm	25008001700	26009602100	320012002100
Power Supply	3∮, AC380V
Special models can be desighed according to cunstomers' requirements
