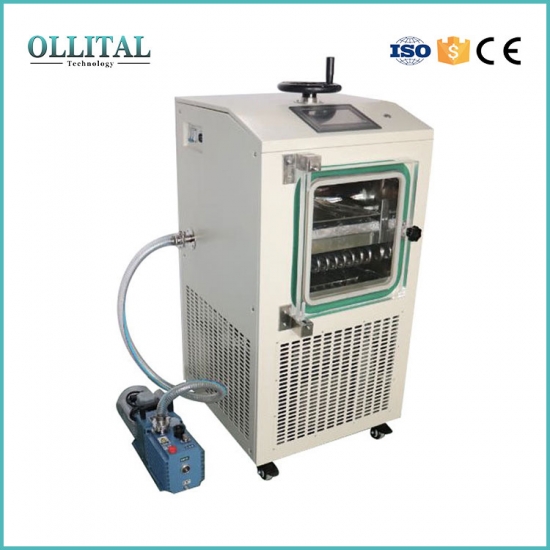

Lab Ordinary Type Top-Press Vacuum In-situ Freeze Dryer

  • Model Number:

    TPV-200F
  • Compliance:

    CE Certified
  • Minimum Order Quantity:

    1
  • Capacity:

    4-6L
  • Voltage:

    108V-380V 50/60HZ
  • Warranty:

    1 year
  • Dimension(L*W*H):

    1200x2100x1700mm
  • Weight:

    2300kg
  • Packaging Details:

    Export wooden package
  • Delivery Time:

    6-8 day
  • Product Details

           Lab Ordinary Type Top-Press Vacuum In-situ Freeze Dryer

For this series, pre-freezing and drying process are completed on shelf. It changes traditional complicated operation and prevents product from pollution.

Types: standard type and top press type

2 .jpg

Model Unit  TPV-200F
  Standard top press
Drying area m2 2.25 1.98
shelf layer 5+1 4+1
Shelf spacing mm 80 100
Shelf size mm 500x900x20 610x810x20
Bulk capacity Liter 22 20
Condenser capability kg/24 hours 40
Shelf temperature -50 ~ +70
Vacuum degree Pa ≤10
Condenser temperature Min. ≤-70
Voltage V, Hz 380v ,50/60 Hz
Cooling - Air,draughty, ambient temperature≤25℃
Defrosting - Water soaking
Vial capacity Φ12mm Pcs 14400 12600
Vial capacity Φ16mm Pcs 7800 6800
Vial capacity Φ22mm Pcs 4100 3600
Style of press - N/A Hydraulic
Dimension mm 1200x2100x1700 1300x3300x2500
Weight Kg 2300 2600
Power KW 13.5 15

3 .jpg

1. PLC control standard, freeze-drying curve is programmable
2. 32 groups programme can be stored, each programme can be set up 36 segments
3. With organic glass observation window, the whole process is easy to view
4. The temperature accuracy of shelf is ≤ 1℃
5. Silicon oil fills hollow shelves, with most uniform shelf temperature, with consistent and repeatable drying effect
6. Condenser separated from drying chamber ,better water capture capability and shorter drying time
7. Big touch screen, LCD display , English interface, display of drying curves
8. Internal surface of rectangular chamber and product trays are constructed of stainless steel
9. Air-let-in valve with nitrogen is available
10. Eutectic point test device is optional
11. PC software is optional to achieve remote control

4 .jpg
