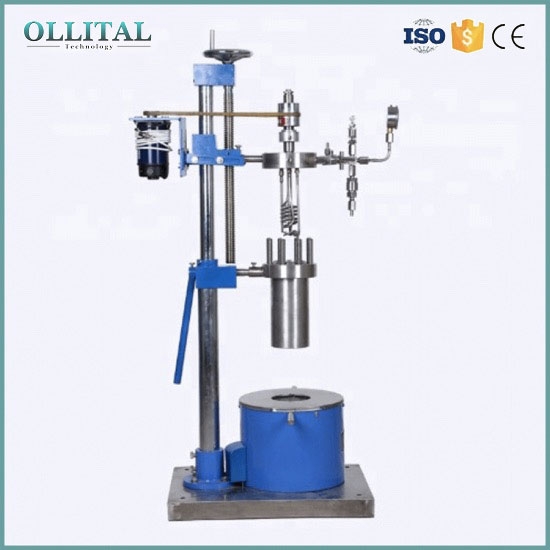

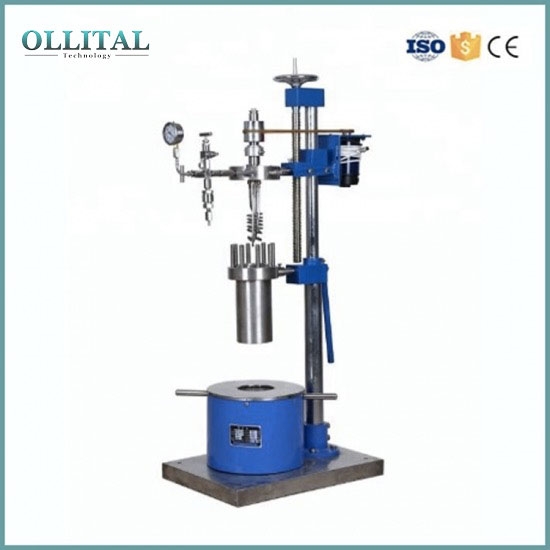

Small Chemical Ceramic Liner High-pressure Pyrolysis Reactor

  • Model Number:

    OLT-PF-6
  • Minimum Order Quantity:

    1
  • Compliance:

    CE Certified
  • Voltage:

    108V-220V 50/60HZ
  • Power(W):

    1.5kw
  • Capacity:

    0.1-3L
  • Use pressure:

    22Mpa
  • Service temperature:

    -10℃-180℃
  • Weight:

    130kg
  • Dimension(L*W*H):

    810*570*1630mm
  • Lead Time:

    6-8day

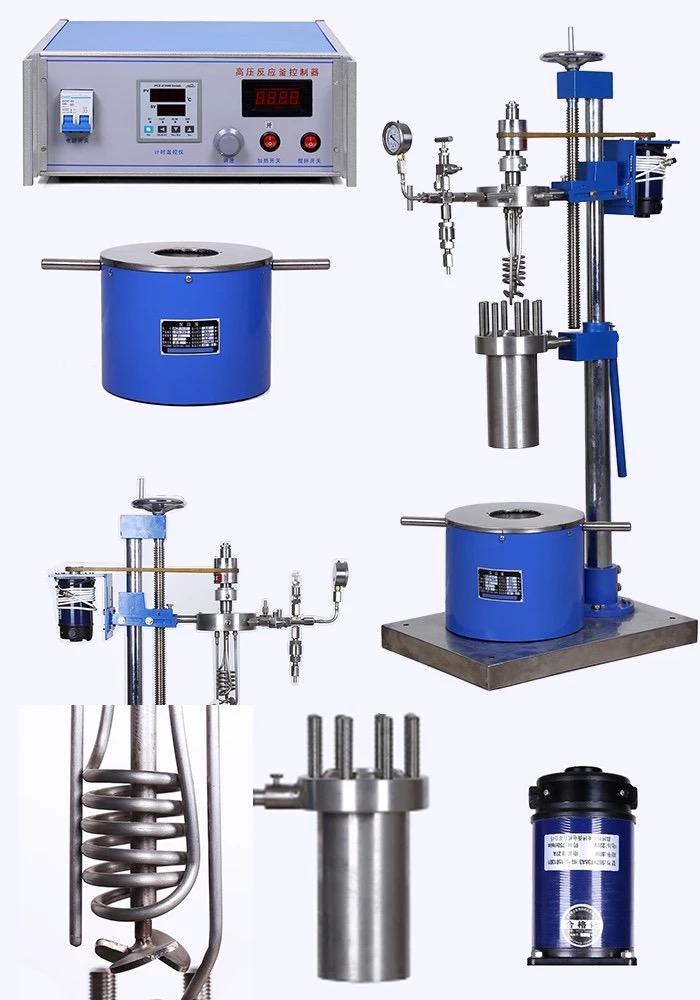

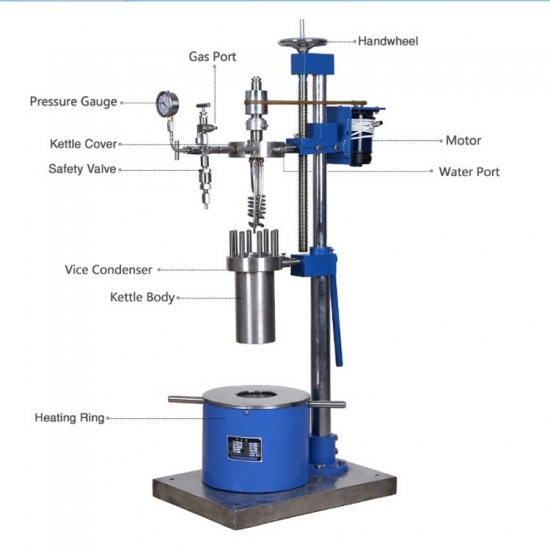

  • Product Details
1. Static sealing structure.
2. The mixer bath electrical machinery transmission uses the magnetic force couple connection.
3. No-touch passing moment, solving the stirred leak problem.
4. Medium and the stirring member is in sealing state to work.
5. Cooling function is also available.
6. We can also add another discharge valve according to your requirements.
7. Safety valve is also optional.
8. We can also customize big volume according to your needs.

Model

Capacity (L)

Working pressure (Mpa)

Settingtemp. (℃)

Stirring torque (N.cm)

Stirring speed (rpm)

Heating methods

 Small Test Reactor

0.1-3

-0.1-30.0

10-180

50-180

20-1500

Electricity

Oil

Steam

 Small Test Reactor

0.1-25

-0.1-35.0

10-300

50-1000

20-750

 Small and Medium-sized Test Reactor

25-1000

0.1-10.0

10-300

80-820

20-500

 Transparent Glass Kettle

1-100

0-0.6

10-180

50-1200

20-500

 Annular Permanent Magnet Drive Stirrer

50-1000

-0.1-35.0

10-300

50-820

20-500

Packaging:

-The glass parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
Shipping:
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent.

Shipping method Note

Express

Door to door, very convenient, don't need to clearance or pick-up
By air

Airport to airport, you need to do the customs clearance and pick up  the

goods at your local airport, which you can have a local shipping agent to do for you.

By sea Port to port and you need to do the customs clearance and pick-up the goods

at your local port, which you can have a local shipping agent to do for you.
