Item NO.:
XPELead Time:
7daysShipping Port:
XiaMen
Processing capacity:0.04-3t/h
Output size:1-40mm
Applied material:for laboratory using
Brief Introduction :

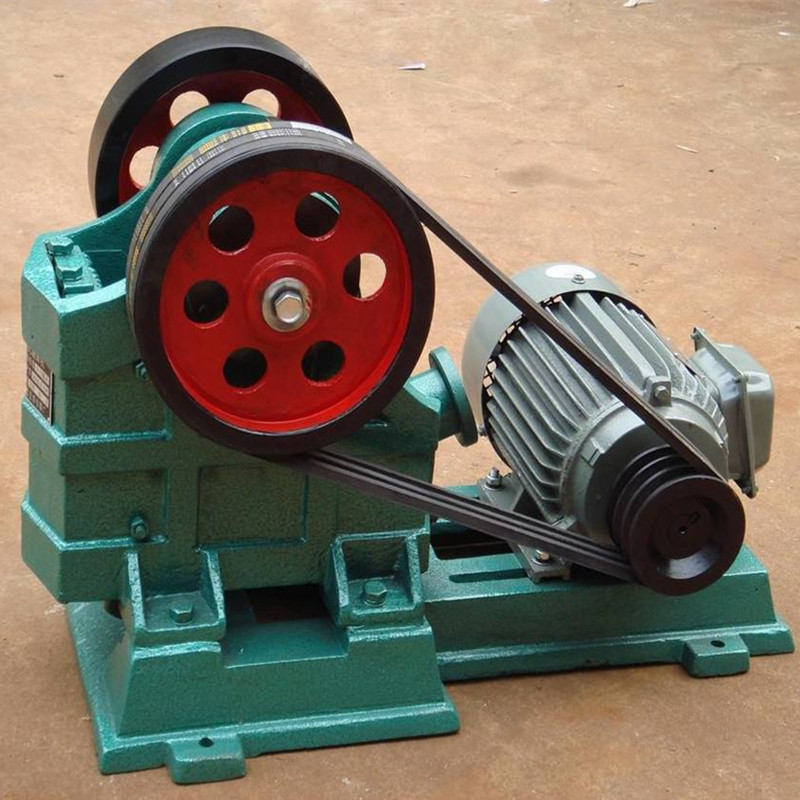

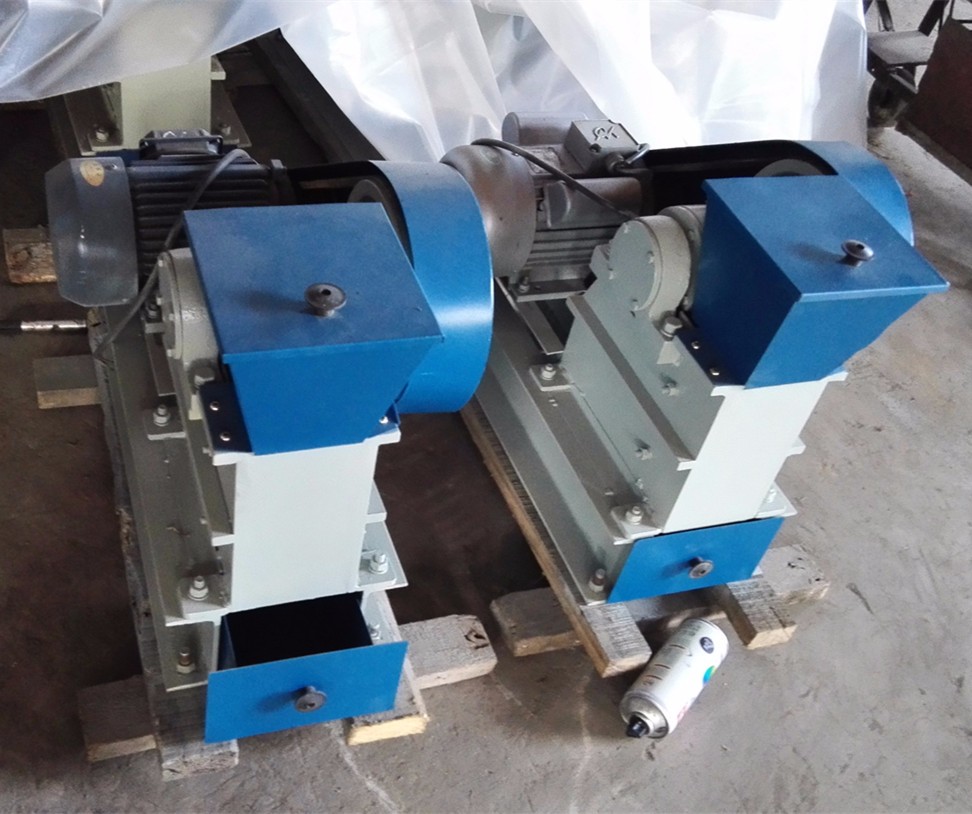

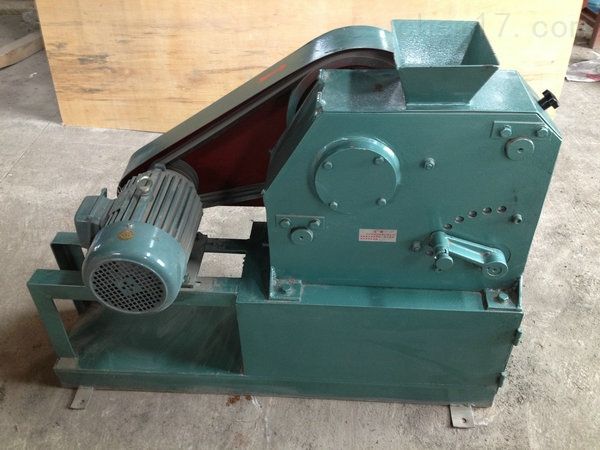

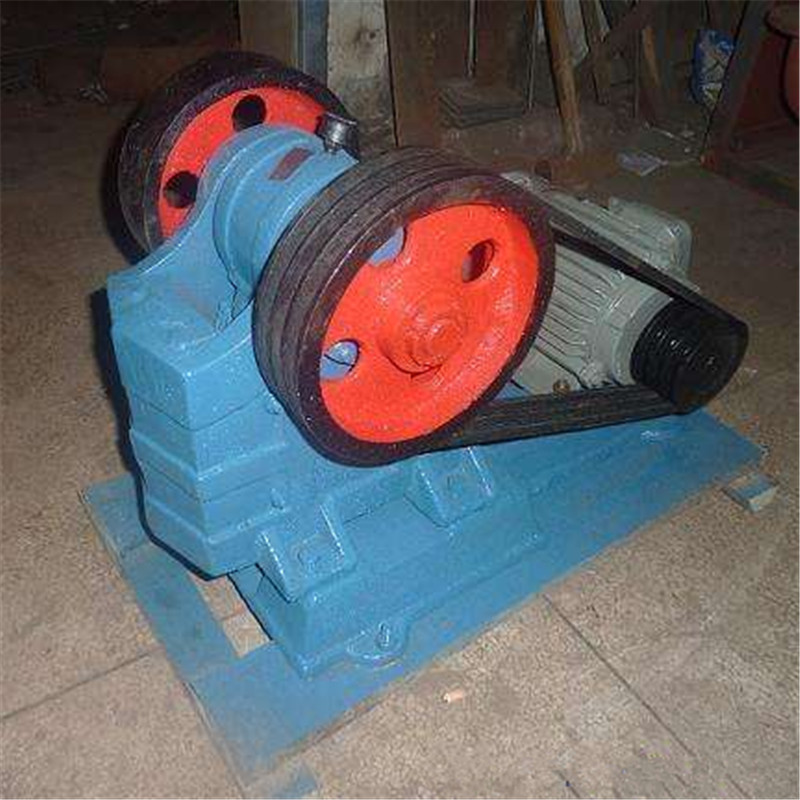

Lab jaw smallest crusher is ideal crusher for laboratory using. Lab Jaw Crusher is a new generation of crushing equipment with easy open of dynamic and static jaws, convenient clean up and no blending of samples. It is capable of fine and medium crushing a variety of ores and materials with compressive strength of 24kg/cm2 and below. Have the performance of great crushing ratio, uniform particle size and adjustment of output size.
Working Principle :

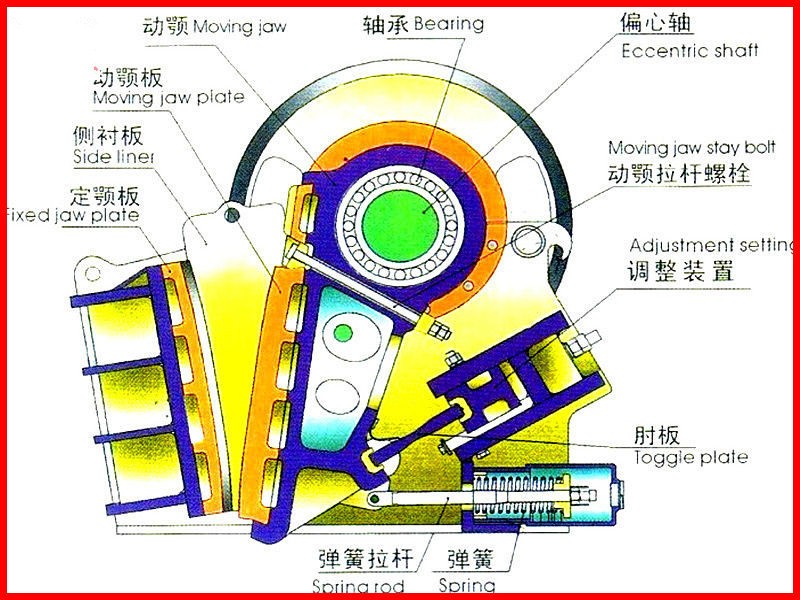

Lab jaw crusher uses the motor to drive belt and pulley, through the eccentric shaft to make the jaw move up and down, when movable jaw falls, the angle between the fixed jaw and the movable jaw become smaller, the materials are crushed to achieve crushing the purpose; when movable jaw rises, the angle between the movable jaw and the fixed jaw become larger, the movable jaw plate leaves the fixed jaw plate under the action of a pull rod. At this time materials broken discharge from the crushing chamber.
Features :
1: Simple structure, easy maintenance.
2: Smart body, easy taking.
3: Safe operation.
4: Low cost of production.
Specifications :
Model
Capacity(kg/h
Inlet size(mm)
Feed size(mm)
Output size(mm)
Rotating speed(r/min)
Power(kw)
XPC60/100
40
100/60
50
1-12
500
1.5
XPC100/150
1800
150/100
90
5-25
380
2.2
XPC100/125
600
125/100
80
1-6
380
3
XPC150/125
200
125/150
100
6-38
375
3
XPC150/200
2000
200/150
120
5-30
370
5.5
XPC150/250
3000
250/150
120
10-40
370
5.5
