Item NO.:
JQ-HW-1000wLead Time:
7daysShipping Port:
XiaMen

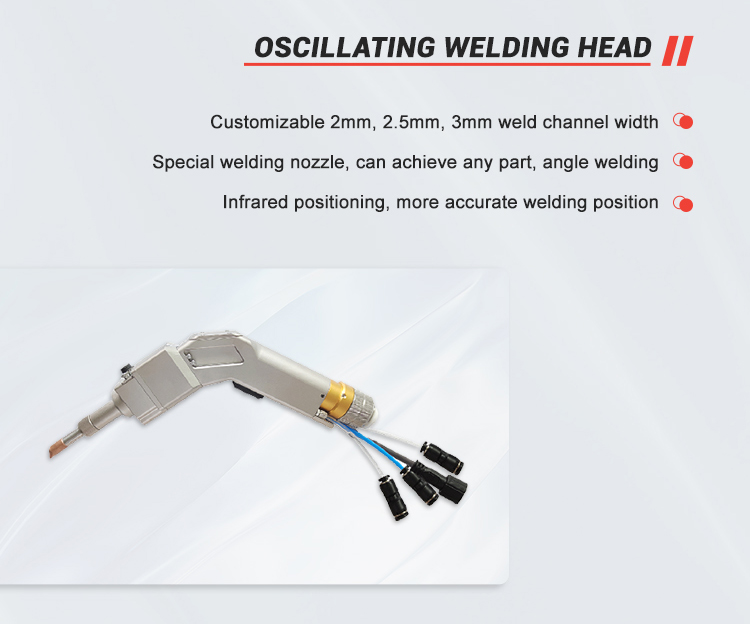

Adopting hand - held swing welding head, the welder can be easily used without professional welding skills, which is suitable for small volume and multiple batches welding work.
Product Show
Product Paramenters
|
NO. |
Item |
Parameter |
Unit |
| 1 |
Model name |
Handle laser welding machine |
|
| 2 |
Model type |
JQ-HW-1000W |
|
| 3 |
Laser Power |
1000 |
W |
| 4 |
Laser wavelength |
1070 |
nm |
| 5 |
Fiber core diameter |
50 |
μm |
| 6 |
Fiber length |
10 |
m |
| 7 |
Laser working mode |
Continuous / Modulation |
|
| 8 |
Galvanometer width |
0.5-6 |
mm |
| 9 |
Galvo scan speed |
≤8000 |
mm/s |
| 10 |
Welding speed |
0-120 |
mm/s |
| 11 |

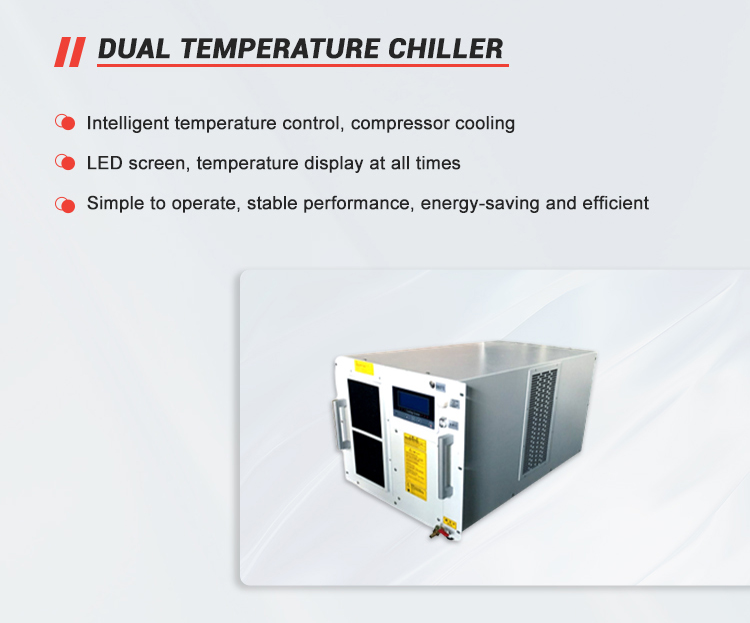

Refrigeration unit |
Intelligent dual temperature chiller |
|
| 12 |
Working environment temperature range |
15-35 |
℃ |
| 13 |
Humidity range of working environment |
＜ 70% non-condensing |
|
| 14 |
Welding material thickness |
≤5 |
mm |
| 15 |
Welding gap requirements |
≤0.5 |
mm |
Ollital Technology would like to establish win-win business cooperation with distributors all over the world.
Advantages of laser welding：1. The heat output is stable and safe 2. Even and beautiful solder joints without sanding 3 .Infrared positioning, easy to learn and operate
Handheld Laser Welding Machine Stainless Steel Welding Master, Smooth Welding joint, No need further polishing Small heat affected zone, No deformation.

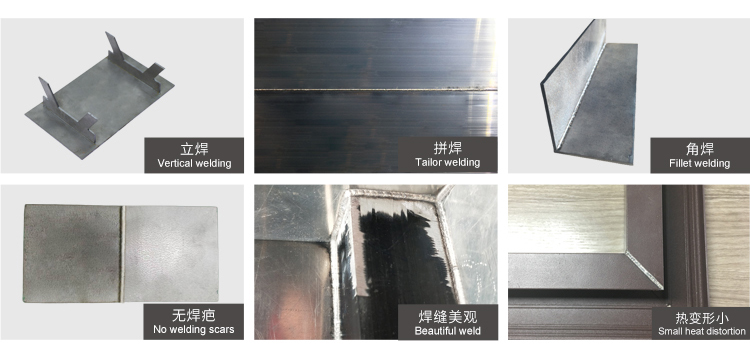

Stainless steel, carbon steel 0-2mm, Galvanized sheet, aluminum 0-1.5mm
It is to use high energy pulse laser to weld the workpiece, the weld is deep and narrow, the weld is bright and beautiful.

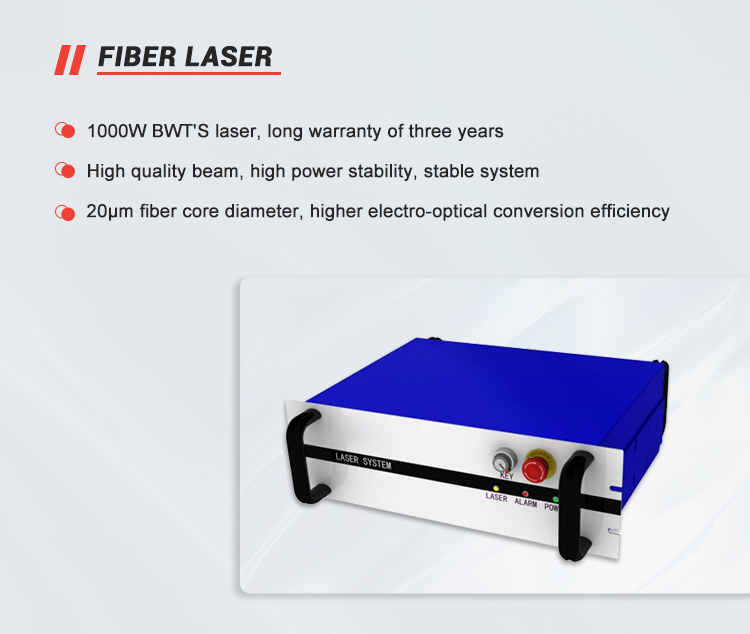

Using the latest generation fiber laser source and Independently developed , hand-held laser welding machine Filled in the blank of hand-held welding in laser equipment industry.
One key operation: one key switch, simplify the starting process , convenient use process Cumbersome Process.
