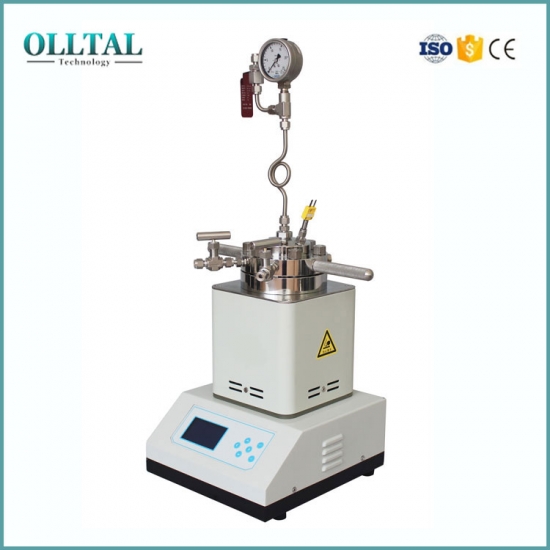

Micro High Pressure Chemical Reactor

  • Model Number:

    OLT-HP-52
  • Minimum Order Quantity:

    1
  • Compliance:

    CE Certified
  • Voltage:

    AC108V~240V
  • Power(W):

    1.2KW
  • Capacity:

    100ml
  • Use pressure:

    Standard Configuration 10Mpa,other 20Mpa or 30Mpa is optional
  • Service temperature:

    250°C
  • Mixing speed:

    0-1200rpm
  • Weight:

    20KG
  • Dimension(L*W*H):

    250*250*450MM
  • Lead Time:

    6-8 Day
  • Warranty:

    1 Years

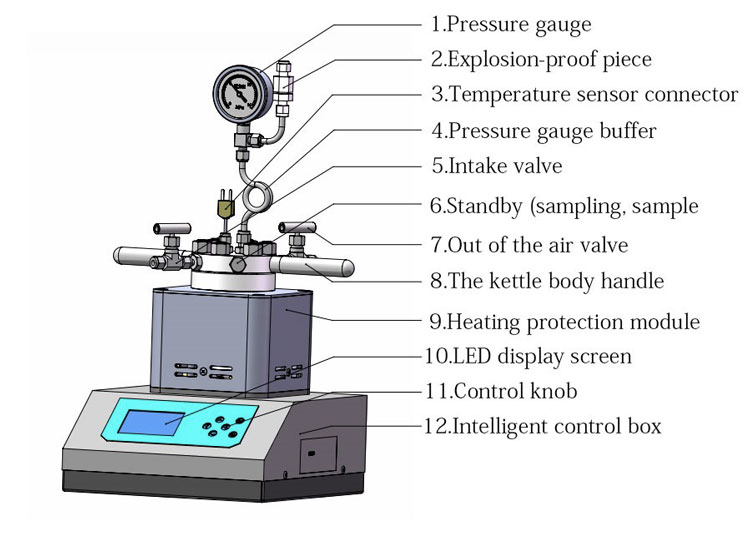

  • Product Details
  1. Small and exquisite dimensions with simple but reliability structure;
  2. Imported DCM (dc.motor) with high speed and reliability, pressure gauge, Ex device, inlet valve, sampling valve and temperature probe.
  3. Inner magnetic stirring to assure without leakage and do the experiment safety.
  4. Credible quality of needle inlet valve.
  5. Sampling and analysis reactions progress at any moment.
  6. Convenient to do vacuum treatment and gas replacement and discharge material when finished the reaction.
  7. Real-time to monitor reaction pressure.
  8. Detect into the inner of reactor body, and real-time to monitor the reaction temperature.
  9. Block heating with the character of fast heating and precise control.


Model

OLT-HP-52

Capacity

100ml

Max, Working Temperature

250°C

Heating Method

Block Heating

Heating Power

1.2KW

Stirring Speed

0-1200rpm

Stirring Method

Inner Magnetic stirring

Max. Working Pressure

Standard Configuration 10Mpa,other 20Mpa or 30Mpa is optional

Structure Material

Stainless Steel 316L


Micro Reactor has the behind several name according to different function of purpose. Such as Micro- high pressure hydrogenation kettle, Micro- high temperature and high pressure reactor, Catalytic Micro- high pressure reactor, Micro- experimental Reactor and etc;


Micro high pressure reactor with the character of high temperature resistance, anti-corrosion and strong production capacity features. Wide range used for pharmaceuticals, beverage, chemical industry, resin, Scientific research and etc industrial filed.



Packaging:

-The glass parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
Shipping:
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent.

Shipping method Note

Express

Door to door, very convenient, don't need to clearance or pick-up
By air

Airport to airport, you need to do the customs clearance and pick up  the

goods at your local airport, which you can have a local shipping agent to do for you.

By sea Port to port and you need to do the customs clearance and pick-up the goods

at your local port, which you can have a local shipping agent to do for you.
