Item NO.:
TMAX-12QHydrogenLead Time:
7daysShipping Port:
XiaMen

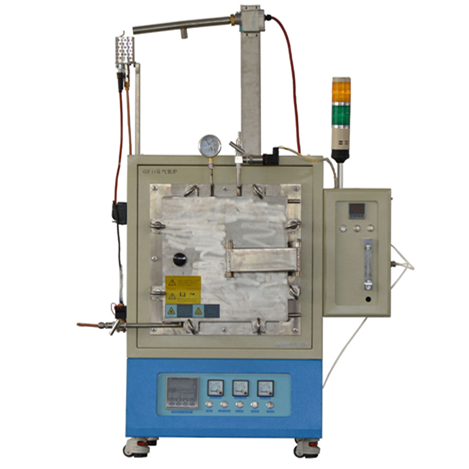

Lab High Temperature 1200C-1800C Hydrogen H2 Atmosphere Sintering Box Muffle Inert Gas Furnace With Optional Sizes
Features

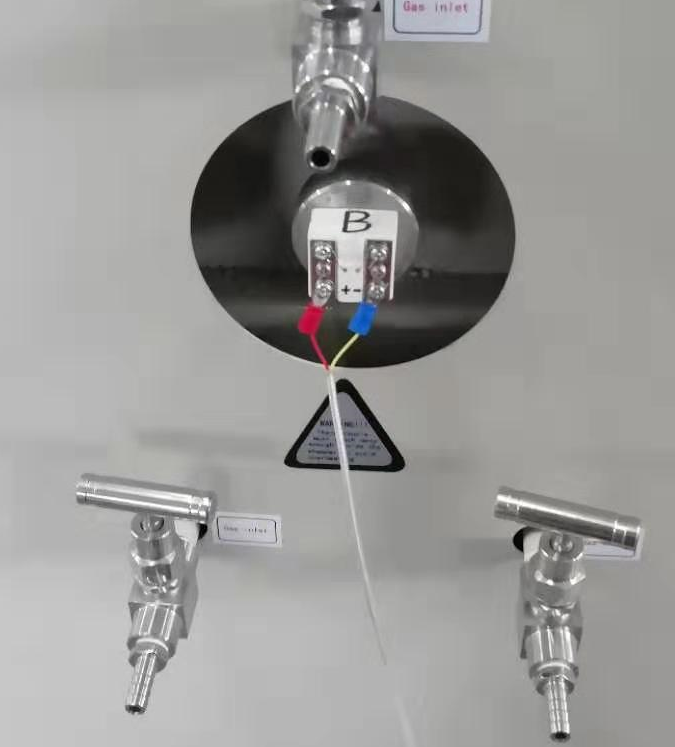

This stainless steel inner hydrogen atmosphere furnace is equipped with a stainless steel inner tank in the furnace. The furnace door is sealed with a silicone O-ring. In order to reduce the O-ring sealing temperature, a water cooling system is installed at the door of the furnace. Thermocouples, intake valves, air outlet valves, pressure gauges, etc. are installed on the inner casing. The furnace is equipped with a hydrogen detector, a burner, a combustion controller, an alarm lamp, an igniter, an explosion-proof valve, and the like. After the gas passes through the flowmeter, it enters and exits from the rear, and the exhaust gas is cooled by the water cooling system and discharged from the furnace door. It can pass gas such as hydrogen, argon, nitrogen, oxygen, carbon monoxide or ammonia. The furnace has the advantages of equal temperature field, low surface temperature, fast temperature rise and fall, energy saving, clean furnace and no pollution. It is an ideal product for universities, research institutes, industrial and mining enterprises to do atmosphere protection and sintering, atmosphere reduction and degreasing.
Detailed Technical Parameters
UAV program temperature control instrument (standard)
1, 30-stage program temperature control intelligent PID adjustment.
2, with over-temperature protection, the electric furnace heating circuit is automatically cut off when the break-up protection is over-temperature or broken, (when the electric furnace temperature exceeds 1200 degrees or the thermocouple is blown,
The AC relay on the main circuit will be automatically disconnected, the main circuit will be disconnected, the ON light on the panel will be off, the OFF light will be on, and the electric furnace will be limited.
3, with 485 communication interface (standard when purchasing software)
4, with power-off protection function, that is, when the power is turned on after the power is turned off, the program does not start from the starting temperature, but the furnace temperature rises from the time of power failure.
5, the meter has the function of temperature self-tuning
1. High-quality high-purity alumina polycrystalline fiber curing furnace formed by vacuum suction filtration.
2. Formed by Japanese technology.
3. The spacing and pitch of the resistance wires in the furnace are all arranged according to the best thermal technology in Japan, and the temperature field is simulated by the thermal software.
Model
1200C-I
1200C-II
1200C-III
Power
4KW
9KW
16KW
Chamber size(mm)
300X200X200
400X300X300
500X400X400
Dimension(mm)
520X610X765
700X 700X880
810X850X1060
Supply voltage
220V
380V
Phase
single phase
three phase
Heating element
Resistance wire Sweden (resistance wire can promise 2 years warranty)
Control mode
Chamber material
Control precision
+/- 1 ℃
Trigger
Phase-shifted trigger
Electric appliance
Zhejiang chint
Silicon controlled
106/16E SEMIKRON
Maximum temperature
1200 ℃
Rated temperature
1100 ℃
Standard packing
Heating rate
≤20 ℃/ Min (it can be modified as required)
Recommended rate of temperature rise
≤15 ℃/ Min
Thermocouple model
K Type
Certification
CE
Peripheral surface temperature
≤45℃
Open cover protection system
The furnace is equipped with a travel switch, which automatically cuts off the main power when the cover is opened, effectively ensuring the safety of the user.
Item
Qua
Atmosphere furnace
1
K type thermocouple
1
Alumina thermal cushion block
1
Furnace door block
1
Stainless steel clamp
1
Thermal gloves
1
Alumina crucible
1
485 computer interface port (optional)
1
Immersible pump
1
