Model Number:
TOP-UV300Compliance:
CE CertifiedMinimum Order Quantity:
1Voltage:
108V-240V 50/60HZPower:
150 ~ 300W continuous adjustableWarranty:
1 yearPackaging Details:
Export wooden packageDelivery Time:

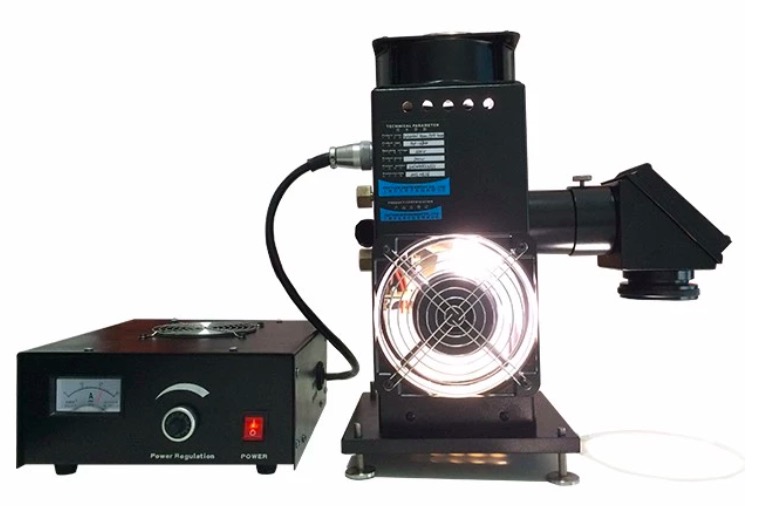

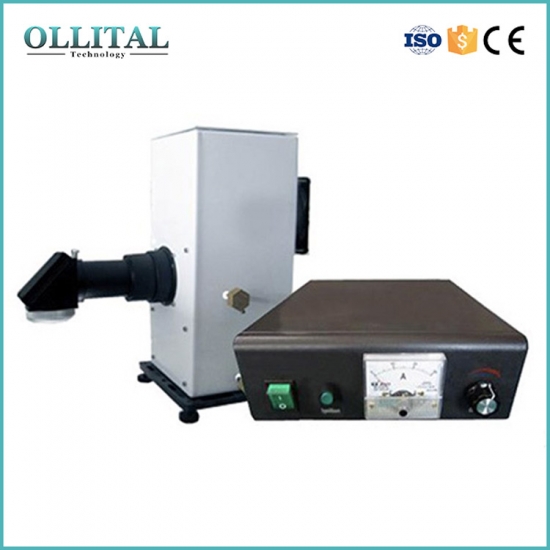

2-5 daysPhotochemical Reaction Apparatus Photochemical Reactors With Xenon Lamp
★ Spectral range from UV to VIS(200-2500nm).
★ Optical axis height is 157-193mm.
★ Output beam diameter is 46mm.
★ Supports wide range of accessories.
★ Fan cooled housing
Short arc xenon lamp source
Lamp bulb power
300W (imported)
Power adjusting range
150 ~ 300W continuous adjustable
Lamp bulb life
no less than 1500 h (full power operation)
Maximum current
22A
Total light power
50W
Parallel light spot diameter
30 ~ 52 mm (according to the shot distance)
Parallel light divergence Angle
the average 6
Cooling methods
import metal fan + metal cooling block
Light collection methods
ellipsoid total reflection
Optical window diameter
24.0 mm (round spot)
Work spot diameter
40-52 mm (round spot)
Light output form
horizontal, vertical irradiation or arbitrary Angle exposure
(along the optical axis can be free rotation)
Infrared transmission
transmission rate ≥ 80%;Wavelength range:800 nm - 1100 nm
Visible reflection
reflectivity ≥95%;Wavelength range:350 nm - 780 nm
Optical filter placed positon
yes, diameter for 52 mm
Standard configuration
special 300 w xenon lamp stability
OLLITAL series is mainly applied to research gas / liquid phases, fixed / simulated visible light, could reaction vessel load TiO2, Photochemical reaction under conditions of photocatalyst and so on. This series can provides samples of analytical reacting product and free radical, and to measure reacting kinetic constant, quantum yield; it is widely used in fields of Chemosynthesis, environment protection, and life science, etc.
Ollital Technology would like to establish win-win business cooperation with distributors all over the world.
