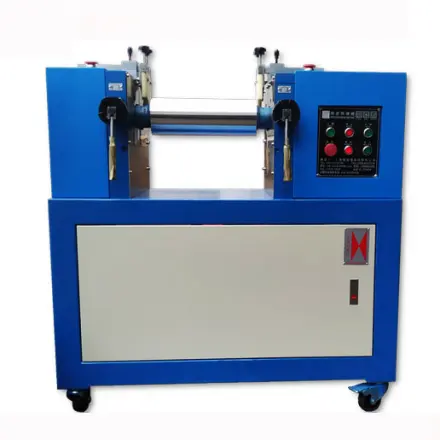

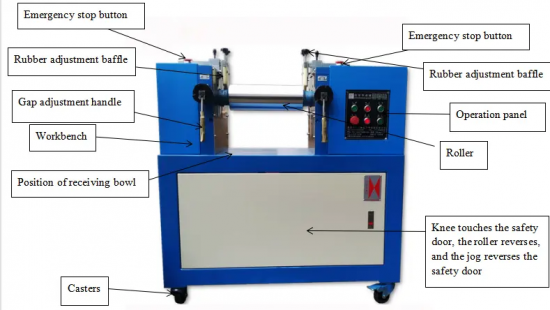

Plastic Open Roll Mill Open Rubber Mixing Machine Two Roll Mill

  • Lead Time:

    1-3 days

  • Model Number:

    ZS-401A-120

  • Minimum Order Quantity:

    1

  • Power:

    380V 3 phase 50-60hz

  • Warranty:

    1 year
  • Product Details

Open Rubber Mixing Equipment suitable for plastic industry polymer material mixing and processing  such as, PVC, color master batch. Making the raw material and compound mixing, and achieve the required  color and quality. The machine adopts special heated mold, roll surface temperature uniformity, never take  off a layer, sample thickness can be mixed, the machine safety protection device, convenience to use.


Parameter

Model

ZS-401A-120

ZS-401B-120

ZS-401C-120

Size of roll (mm)

120X350 or customized

Heating mode

Electrical heating or oil heating

Cooling mode

Tap water cooling/oil cooling (optional)

Roller speed

Constant speed

Single speed regulator

Double frequency modulation

Motor power (Kw)

0.75X1®or customized

0.75X1® or customized

0.75X2or customized

Volume (mm)

1000X550X1200

1000X550X1200

1000X550X1200

Weight (kg)

350

370

400

Power supply

3ph, AC380V

Special models can be designed according to customers requirements

Feature:
1. Construction of mill rolls: drilled roll, bored roll, grooved roll

2. We can design speed ratio as per customers' formula and processing requirements.

3. Frame, frame cap and base are welded and treated by annealing for stress relieving.

4. Rolls material is chilled cast alloy iron which hardness is reach to 70HB.

5. Brake and emergency stop device can ensure the safety of personnel and equipment.

6. Auto feeding oil or grease lubrication, it is easy to maintain and protect machine.

7. Human nature designed controlling system ensure labor safety.

8. Methods of adjusting roll nip: manual or electric

Intelligent control panel and PLC control system:
1. Real-time data record and export of kneading time, temperature (mixing chamber and front/rear rotors), ram pressure, current,
torque and recipe code.
2. The control system can be set up to 20 mixing steps, save 20 recipe spaces.
3. The control system is capable of remote import of the process recipe and data monitoring, communicating with MES via Ethernet
communication interface.
4. An Ethernet communication interface and 20% of the control points are reserved. Touch screen is provided.
Packing & Shipping
