Item NO.:
SKZ1052BLead Time:
7daysShipping Port:
XiaMen

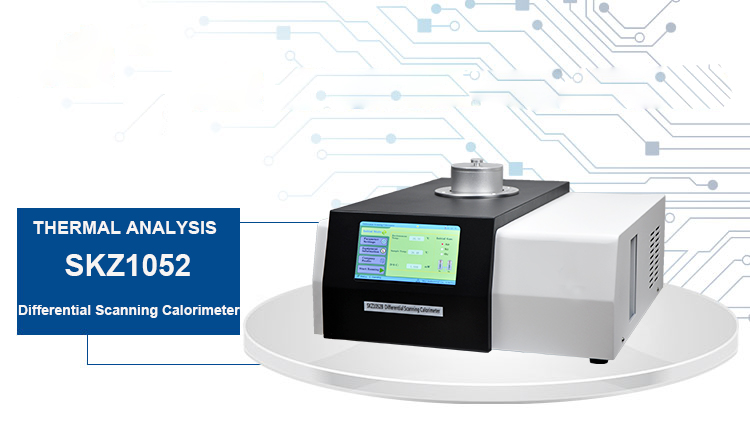

high quality 550C differential scanning calorimeter dsc oit analysis
DSC is designed to determine the inner heat transition relating to temperature and heat flow, it is widely used in the field of polymer development, performance testing & quality control. DSC research and development includes the following field: glass transition temperature, melting point, cold crystallization, crystallization, phase transition, oxidation induction time (OIT).
Standards:
ISO/TR10837:1991, ASTM D3895-1998, ASTM E 967, ASTM E 968, ASTM E 793, ASTM D 3895, ASTM D 3417, ASTM D 3418, ISO 11357-6
Main Features:
1. The industrial-grade 7-inch touch screen displays rich information.
2. Brand-new metal furnace body structure, with better baseline and higher accuracy. The heating adopts indirect conduction method, which has high uniformity and stability, reduces pulse radiation, and is better than traditional heating mode.
3. USB communication interface, strong versatility, reliable and uninterrupted communication, supports self-recovery connection function.
4. Automatically switch the two-channel atmosphere flow, fast switching speed and short stabilization time. At the same time, a protective gas input is added.
5. The software is simple and easy to operate.
Technical parameters:
|
Temperature range |
RT~ 550 ℃ |
|
Heating rate |
0.1~80℃/min |
|
Temperature resolution |
0.001℃ |
|
Temperature fluctuations |
±0.001℃ |
|
Temperature repeatability |
±0.1℃ |
|
Constant temperature time |
Program setting ≤24h |
|
DSC range |
0~±60mW |
|
DSC noise |
0.01μW |
|
|
0.01μW |
|
DSC accuracy |
0.01mW |
|
Atmosphere control gas |
Nitrogen, Oxygen (instrument switch automatically) |
|
Gas flow rate |
0-300mL/min |
|
Gas pressure |
0.2MPa |
|
Control Mode |
Rising temperature, constant temperature(full automatic) |
|
Curve scanning |
Rising scan |
|
Gas flow control |
Built-in digital flow meter & Software control, automatic |
|
Display |
24 bit 7 inches LCD touch screen display |
|
Data interface |
standard USB connector |
|
Parameter standard |
With standard material, with calibration function, the user may correct temperature and heat enthalpy |
|
Software |
4 in 1 operating software, can switch to DSC, DTA, TGA, STA |
|
Thermocouples |
Total 3 sets of thermocouples for: 1). Test sample temperature 2). test furnace temperature, 3). Test internal ambient temperature |
|
Cooling device |
Air cool |
|
Power |
AC220V/50Hz |
Packing List
|
Host instrument |
1 |
|
CD |
1 |
|
Data Line |
1 |
|
Power Line |
1 |
|
Aluminum crucibles |
100 |
|
Ceramic crucibles |
100 |
|
pure tin grains |
1bag |
|
Fuse 4A |
5 |
Ollital Technology would like to establish win-win business cooperation with distributors all over the world.
Oxygen Bomb Calorimeter is suitable for the determination of water-free oil products (gasoline, jet fuel, diesel oil and fuel oil, etc.) and combustible material such as coal, coke, paraffin wax content determination of calorific value.
It is applicable in the industry such as electrical power, coal, papermaking, petrochemical, oil, cement, farming, medical research, and instruction to measure the Calorific Value of combustible materials.
This instrument is used to measure the calorific value of solid, liquid and other combustible materials (coal, petroleum food, wood, biomass).
Widescreen touch structure of industrial level, rich display information, including the set temperature, sample temperature, oxygen flow rate.
Function:Computerized usinf windos based software
