Stainless Steel Multi Bag Filter Used in Industrial

Bag filter is a widely used for liquid filtration,it can remove the particles of different size from liquid,in order to achieve liquid filtration,purification,separation,recovery purposes.
  • Product Orgin:

    China
  • Shipping Port:

    Xiamen/Shanghai

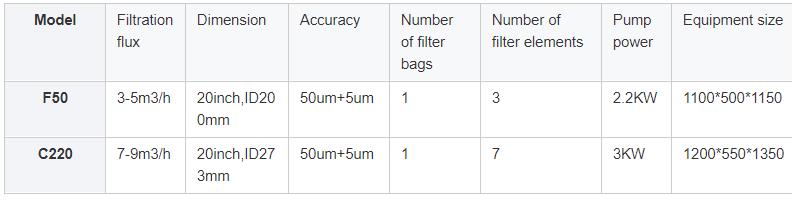

  • Model Number:

    F50
  • Product Details

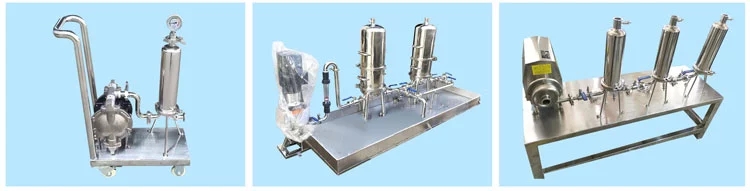

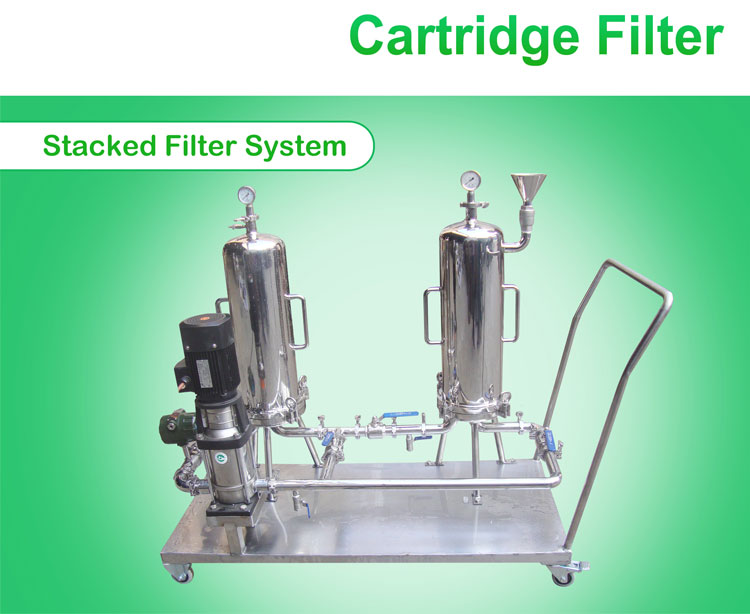

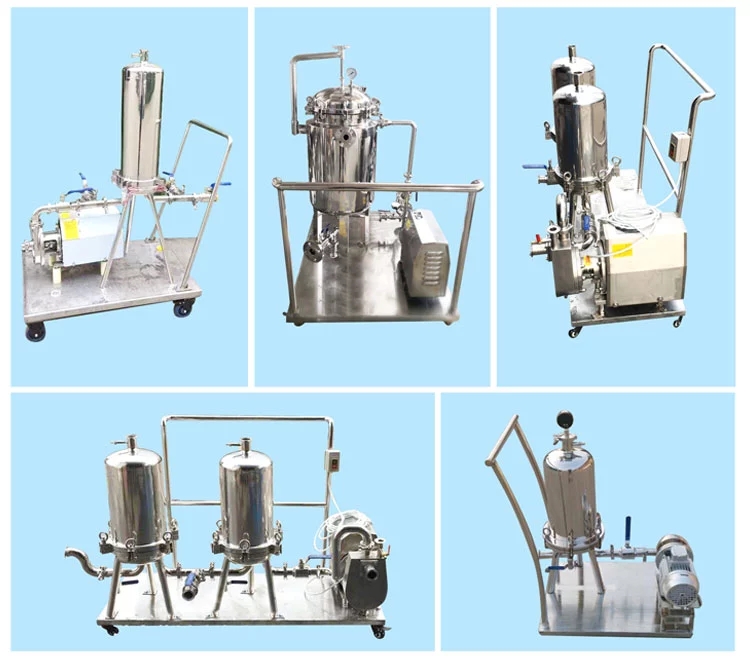

This stacked filter system consists of three parts: a centrifugal pump, a bag filter, and a precision cartridgefilter.



1. Integral stainless steel platform with moving wheels.2. Side entry structure for bag filter, bottom-in, bottom-out for cartridge filter.

3. Multi-stage filter element increases the filtering effect.

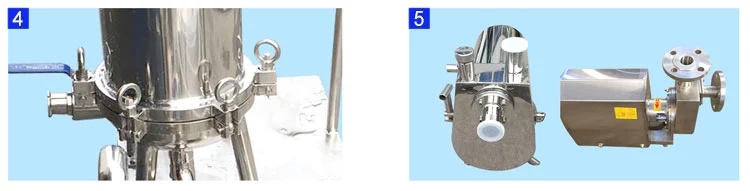

4. The quick-open design of the pipe fitting valve, the complete system design has a pressure gauge port, an exhaust valve port, a discharge valve, etc., which is convenient to operate and easy to clean.

5.Centrifugal pump,suitable for conveying suspension, its structure is simple and compact. For the same delivery volume, the centrifugal pump occupies a small area, is lightweight, and consumes less material.

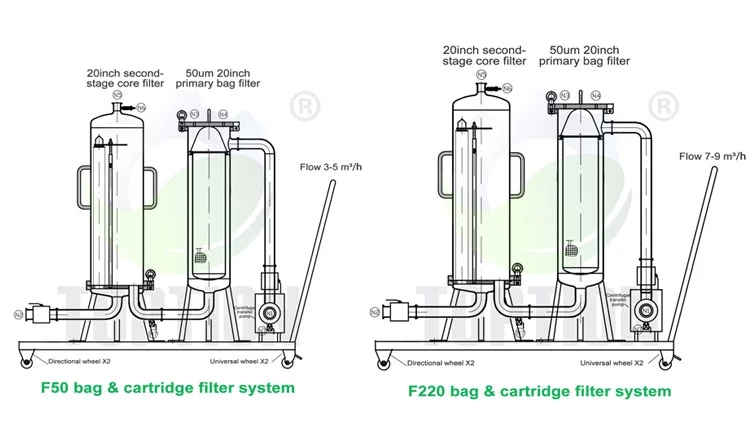

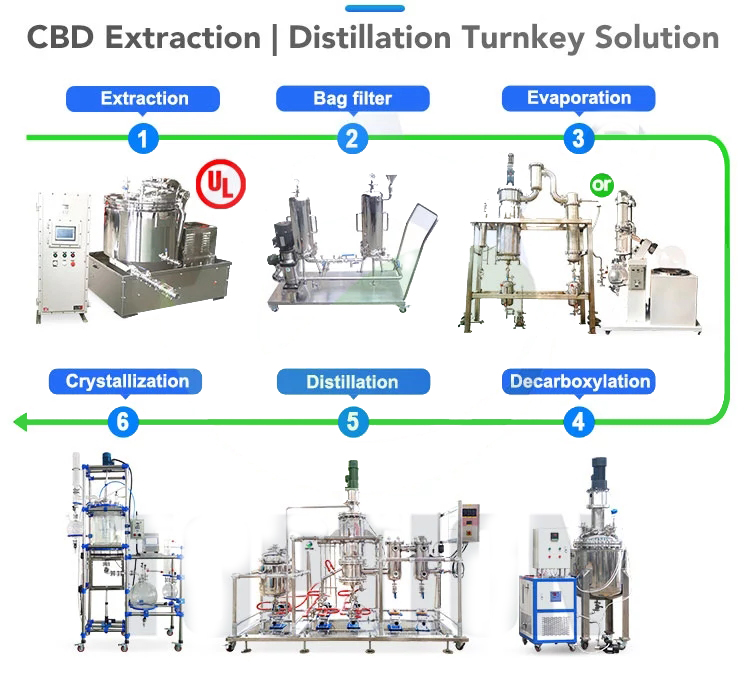

Note: F50 type filter system is suitable for TOP-C15, TOP-C30, TOP-C50 series ethanol extraction centrifuge.
F220 type filter system is suitable for TOP-C110, TOP-C160, TOP-C220 series ethanol extraction centrifuge. 1. Compact structure and reasonable size. Installation and operation are simple, convenient, and occupy a small area.

2. High filtration accuracy, suitable for any fine particles or suspended matter, the filtration range can be from 0.5 to 200 microns.

3. The processing flow per unit filtration area is large, the filtration resistance is small, and the filtration efficiency is high. The function of a system filter is equivalent to 5~10 times that of ordinary filters, which can greatly reduce costs.The design flow can meet the requirements of 1 ~ 500m3 / h, and the cost is low.

4. Wide application, it can be used for coarse filtration, medium filtration or fine filtration.

5. High filtration accuracy, large filtration processing volume, low cost and high efficiency.

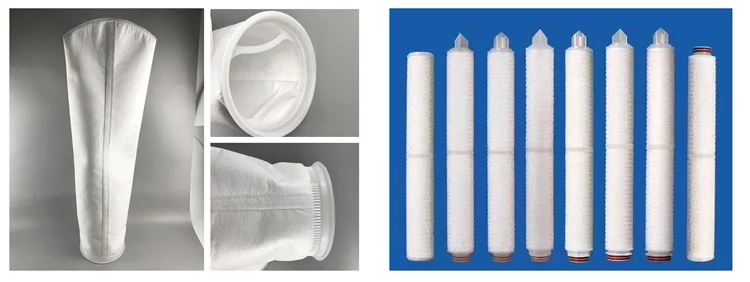

6. The filter is free of cleaning, and the replacement of the liquid filter bag or filter element can be completed in 30 seconds, which is convenient and fast, saving labor and time.

7.The bag filter material includes stainless steel SUS304, and stainless steel 316L can be optionally replaced.
