Lead Time:
1-3 daysModel Number:
OLT-406Compliance:
CE CertifiedMinimum Order Quantity:
1Mixing method:
LCDWarranty:
1 yearThe material is placed in the casting mold and clamped between the electric-heating flat plates to apply pressure and temperature,make the material shaping,testing and serving as the basis for the ingredient of mass production.
Parameter
| Model | OLT-406A |
OLT-406B |
OLT-406C |
OLT-407 |
| Control mode | Manual Type | Electric Type | PLC Control | Vacuum |
| Pressure (T) | 10/20/30/50/75/100 tons or customized | |||
| Temperature range | Room temperature -300 ℃ | |||
| Size of Working board (mm) | 300*300mm or customized | |||
| Volume (mm) | 750*400*800mm | 1000*600*1600mm | 1000*600*1600mm | 1100*600*1700mm |
| Weight (kg) | 210 | 750 | 750 | 800 |
| Power supply | 3∮,AC380 | |||
|
Special models can be designed according to customers' requirements |
||||
Main Features
1) Equipped with a high performance hydraulic system with automatic pressure compensation function;
2) High precision and high wear-resistant guide posts to support strong load force and stable lifting;
3) Electric heating and PID temperature control to fast heat and precisely control the temperature;
4) Adjustable molding time;
5) Automatically increase and release the pressure when reaching the set time.
6) PLC Control system
Put the raw material into cast die and clamp the die between the electric heating plates of the machine,then apply heat and compress it in order to mold the raw materials to get the specimens for testing inlaboratory.

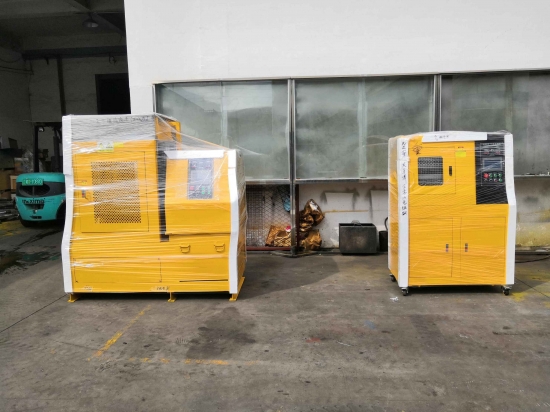

Packing & Shipping
