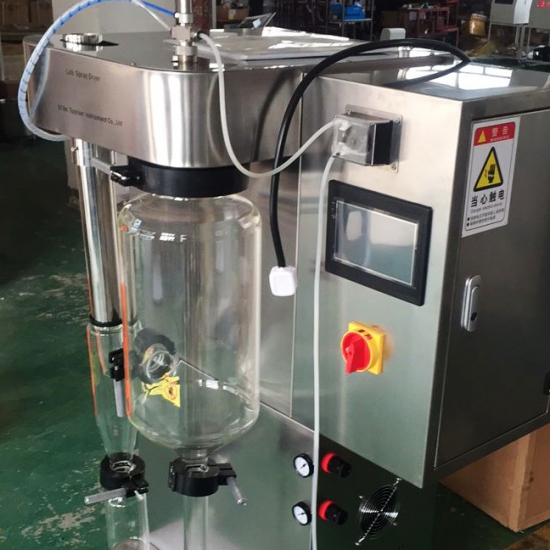

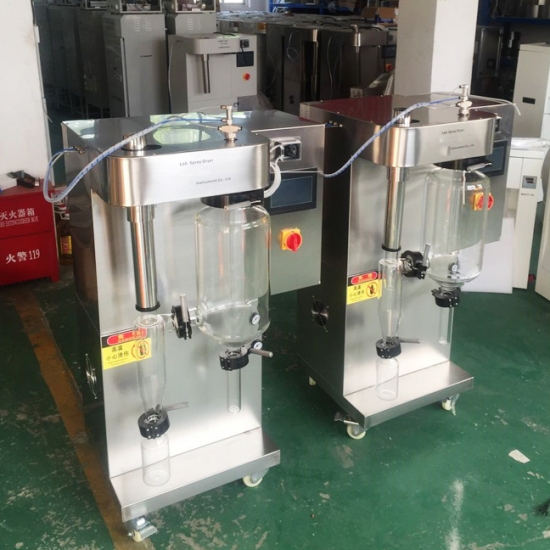

High quality 1.5L scale lab spray dryer equipment
Lab scale spray dryer is suitable for the production of in universities, research institutes and food and pharmaceutical chemical enterprises.
In laboratories, medical, pharmaceutical and food industries, every step of sterilization is related to quality and safety. As the core equipment for
In many professional fields such as material aging testing, photocatalytic experiments, and environmental weathering research, there are extremely hig
In the pharmaceutical, biological research, food processing and medical industries, sterilization is not only related to product quality, but also dir
Working principle The high-intensity physical force generated by high-speed vibration and beating is used to beat the sample, so that the cells or tis
Lead Time:
3-5 daysModel Number:
OLT-SD8000BCompliance:
CE CertifiedMinimum Order Quantity:
1Operation method:
PLC controlMixing method:
Touch ScreenCapacity:
2L/hWarranty:
1 yearSpray drying machine is especially suitable for drying the heat sensitive materials, after drying, there's no need for smashing and sorting, so as to reduce the operation procedures and save your time.
Parameter
Model
OLT-SD8000B
Max capacity
1500-2000ml/h
Temperature range of Inlet air
30C -280C
Temperature range of outlet air
40C -120C
Precision of temperature
± 1 C
Dryer time
1.0-1.5 S
Speed of squirmy pump
30-2000ml/h
Consume of dryer air
0-330m3 /h, max pressure: 686Pa
Consume of spray air
0-4.2m3 /h, spray pressure: 2-5bar

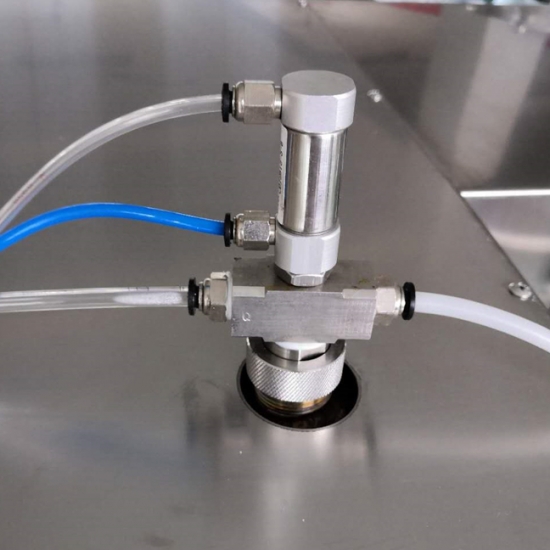

Spray system
2 liquid nozzles with standard 1.0mm jet
options of 0.5/1.0/1.5/2.0/2.5mm
Spray direction
downwards co-current
Power
3.5KW 220V-240V
Dimensions
750*900*1400 ( mm ) L * W* H
Min capacity
30ml
Powder size
1-120um
Gross weight
130kg
Cbm
0.945cbm
Packing & Shipping
Ollital Technology would like to establish win-win business cooperation with distributors all over the world.
Stainless steel spray dryer is designed to ensure that all functions are simple to select and adjust, to quickly achieve the optimum conditions for spray drying
