Lead Time:
3-5 daysModel Number:
OLT-SD-10LCompliance:
CE CertifiedMinimum Order Quantity:
1Capacity:
10KG/hWarranty:
1 year
Description
Parameters
|
Name |
OLT-SD10L |
|
Inlet air temperature control |
≤30-300 °C. |
|
Outlet air temperature control |
<30 ~ 150 °C. |
|
Maximum evaporation of water |
200-10L/h. |
|
Centrifugal spray head transmission form |
Electric. |
|
Speed |
40,000 rpm |
|
Spray disc diameter |
80mm |
|
Heat source |
Electricity |
|
Electric heating maximum power |
18kw |
|
Total power |
22kw |
|
Dimensions L*W*H(mm) |
2500*1600*2800 |
|
Dry powder recovery |
≥98% |
| S.N. | Name | Specification | Material | Quantity |

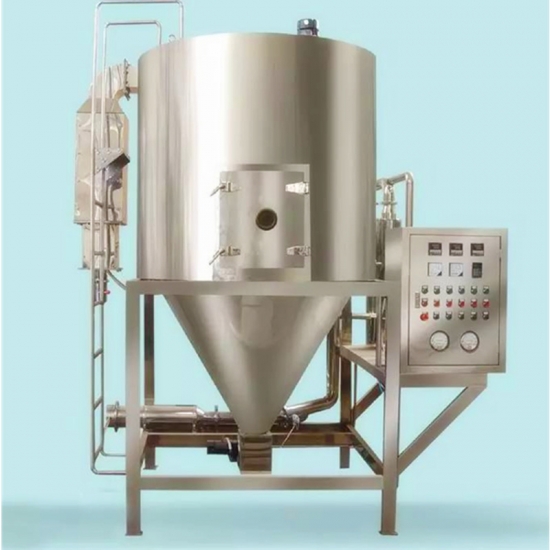

| 1 | OLT-SD10L spray dryer | 2500*1600*2800 | Stainless steel | 1 |
| 2 | Tower body | Φ1400*2600 | Stainless steel | 1 |

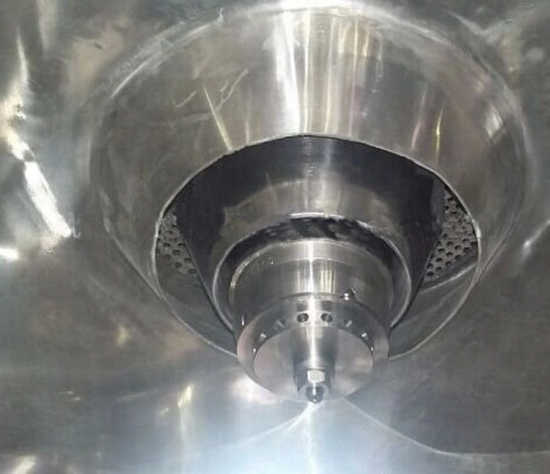

| 3 | Centrifugal nozzle atomizer | Φ80 10kg per hour | Stainless steel | 1 |
| 4 | Air compressor / vibrating air hammer | Matching | Stainless steel | 2 |
| 5 | Cyclone separator | Φ300 | Stainless steel | 1 |
| 6 | Peristaltic pump | 30-100L/h-0.55kw | Stainless steel | 1 |
| 7 | Induced draft fan | 4kw | Q235A steel | 1 |
| 8 | Electric heaters | 18kw | Stainless steel | 1 |
| 9 | air filter | Matching | Sainless steel | 1 |
| 10 | Electrical control box | PLC | Stainless steel | 1 |
| 11 | Inlet and out wind temperature detector | Matching | Stainless steel | 2 |
| 12 | Air duct | Matching | Stainless steel | 1 |
| 13 | Receiving cylinder | 10L | stainless steel | 1 |
| 14 | Cylinder insulation | 50mm | Insulation cotton | |
| 15 | support | 60*60mm | Stainless steel | 1 |
Application of spray dryer
Chemical industry
Sodium fluoride (pqtassium), alkaline dyestuff and pigment, dyestuff intermediate, compound fertilizer, formic silicic acid, catalyst, sulphuric acid agent, amino acid, white carbon and so on.
Plastics and resin
AB, ABS emulsion, uric acid resin, phenolic aldehyde resin, urea-formaldehyde resin, formaldehyde resin, polythene, poly chloroprene, etc.
Food industry
Fatty milk powder, protein, cocoa milk powder, substitute milk powder, egg white (yolk), food and plant, oats, chicken juice, coffee, instant sissoluble tea, seasoning meat, protein, soybean, peanut protein, hydrolysate and so forth.
Features of spray dryer
1.Finished products have high quality and purity, good uniformity,good flow capability and solubility advantages.
2.Simple and stable operation,convenient control and debugging,easy to achieve automatic operation.
3.Drying speed is rapid.When liquid raw material is atomized,the surface of the material will be enlarged greatly.In the hot airflow 95% - 98% of water can be evaporated instantly.time of completing the drying is several seconds.This is especially adapt to dry heating sensitive material.
4.Process of production is simple,it is an ideal choice for liquid material which contains 40%-90% of water and want to dry it to powder once,this type of machine can reduce the procedure of smash and sieve,the operational environment is superior,always clean,and under healthful condition,it also can avoid powder flying while drying.
Packing & Shipping
Ollital Technology would like to establish win-win business cooperation with distributors all over the world.
Stainless steel spray dryer is designed to ensure that all functions are simple to select and adjust, to quickly achieve the optimum conditions for spray drying
