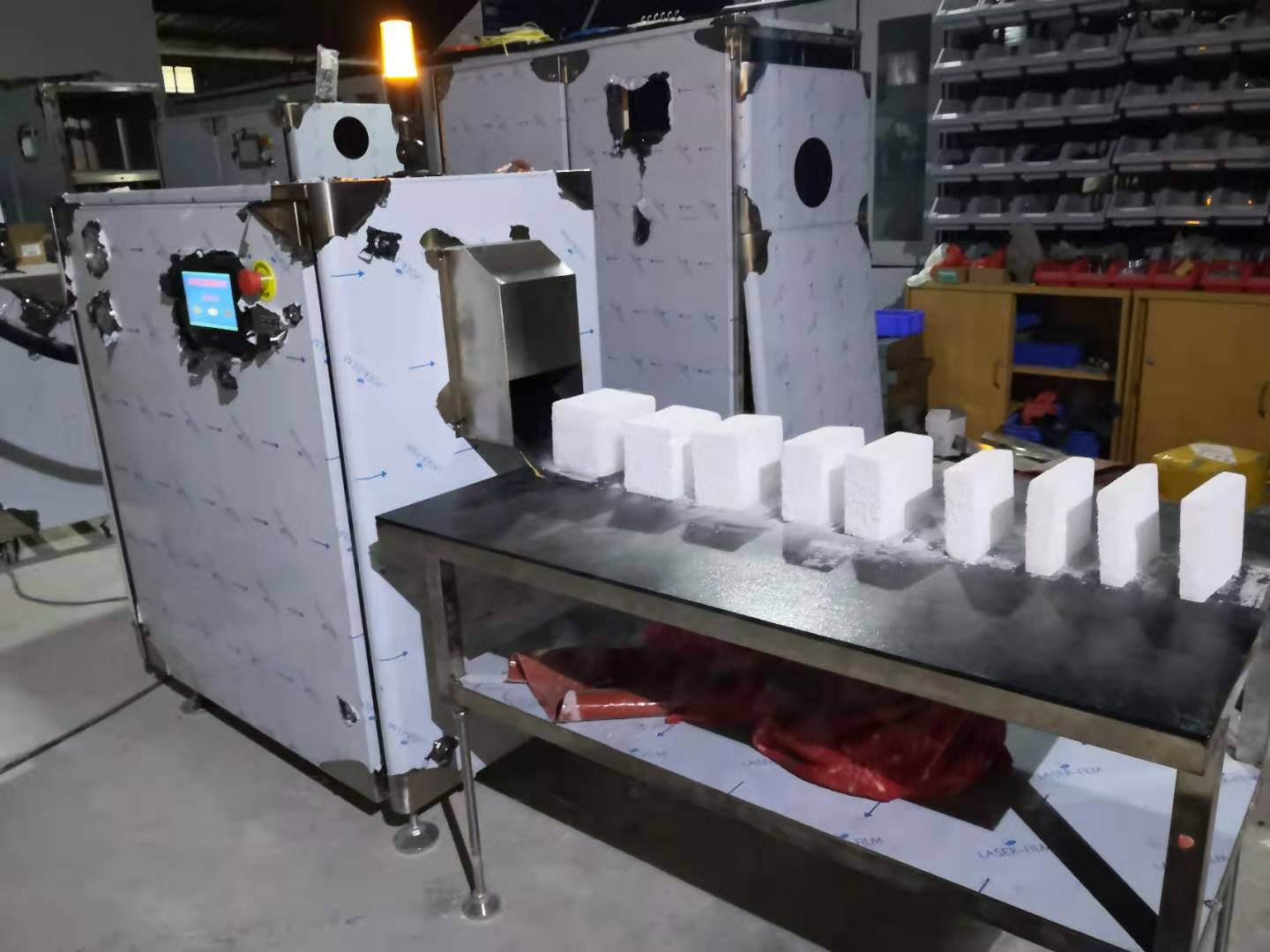

Factory Supply Commercial Dry Flake Ice Making Machine
Special design concept, high mechanical manufacturing precision, equipped control system, software and advanced measurement. This series of granular dry ice machine is widely used in dry ice cleaning, low temperature preservation and cold chain transportation, smoke effect and other industries. This machine is a fully automatic production equipment. It can be started by one-button button and can control all functions, which greatly improves production efficiency and saves production costs.
Specification
Model | HR-KZ-120 |
HR-KZ-240 |
HR-KZ-500 |
Production capacity | 120-190kg/h | 240-370kg/h | 300-500kg/h |
Dry ice specification | 105×125×(10-60)mm | 200×90×(10-60)mm |
210×180×(20-210)mm |
The density of dry ice |
1550kg/m³ |
1550kg/m³ |
1550kg/m³ |
Liquid and solid Co2 conversion ratio |
≥42% |
≥42% |
≥42% |
The total power | 5.5kg |
5.5kw |
11kw |
Equipment weight |
500KG |
1000KG |
1.8T |
Overall dimensions | 120cm×65×130cm | 132cm×120cm×165cm | 210cm×100cm×170cm |
Feature
1. The body is made of stainless steel, and the fully enclosed design makes the equipment more integrated, reduces the noise of the equipment when it is working, and prevents the danger caused by the accidental touch of the personnel during the work.
2. The core electrical parts are original.
3. The hydraulic pump station and the pellet forming module are all built-in. On the one hand, it reduces the footprint of the equipment, and on the other hand, it also makes dry ice production avoid the influence of dust.
4. Touch LCD panel operation, you can set the number of hydraulic cylinder purge, working time, etc., reducing the error rate of manual operation.
5. Optional food-grade configuration of the hydraulic system (using stainless steel parts and edible food oil as the hydraulic transmission medium)
