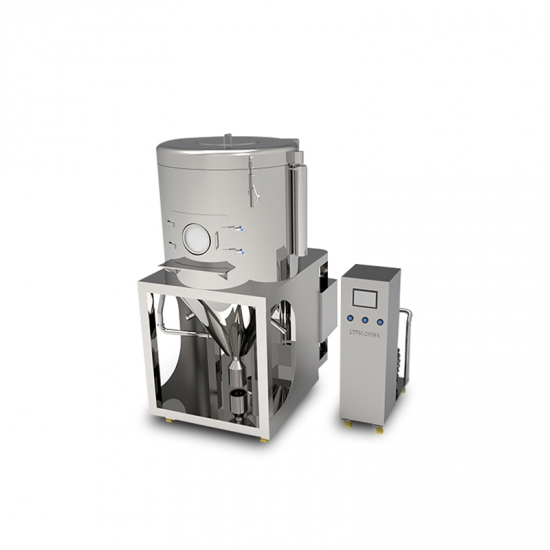

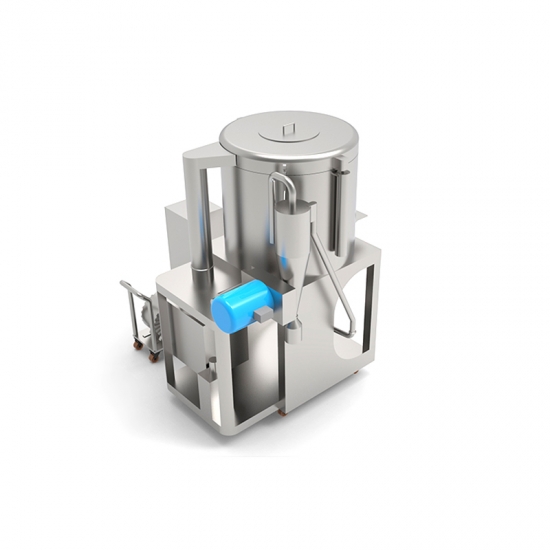

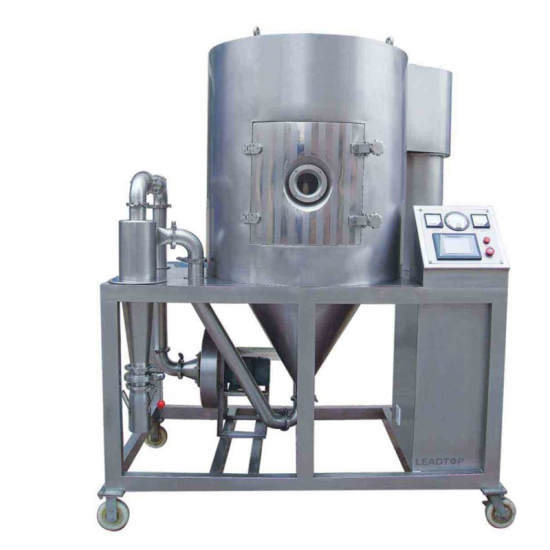

Centrifugal Spray Drying Machine atomizer Centrifugal Spray Dryer

Lead Time:
1-3 days
Model Number:
LTPG-5
Compliance:
CE Certified
Minimum Order Quantity:
1
Warranty:
1 year

Contact Now

email：kevin@ollital.com email：kevinollital@gmail.com

Product Details

Product Description

Spray drying is the widest used technology in the liquid shaping technology and in the drying industry. Centrifugal Atomizing (Spray) Drying Equipment is most suitable for producing powder, particles or solid block products from materials of solution, emulsion, soliquoid and pumpable paste states. Therefore, spray drying is useful to create the desired particle size, residual water contents, the stocking density, and the particle shape needed to meet precise standards.

Technical Parameters

Model	LTPG-5	LTPG-10	LTPG-25	LTPG-50	LTPG-100	LTPG-200
Water Evaporation (kg/h)	5	10	25	50	100	200

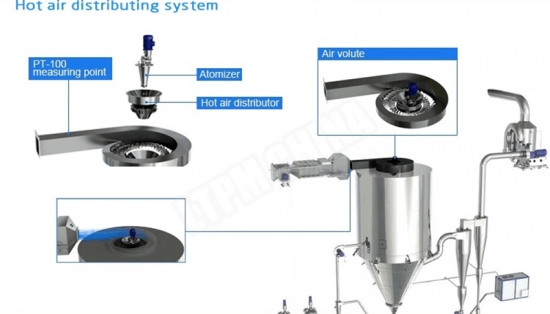

Method of Atomizing	High Speed Centrifugal Atomizer (mechanical drive or stepless frequency speed regulation is available)
Revolution of atomizer(rpm)	25000	22500	22500	21500	18000	16000
Diameter of Atomizing disc (mm)	60	60	60	120	120	150
Dried Powder Recovery Rate (%)	Around≥95
Air input Temp	160~200℃
Air output Temp	70~90℃
Hoisting height of Nozzle(m)	--	--	2.5	2.5	3.2	3.2
