Lead Time:
3-5Model Number:
LTPG-5Compliance:
CE CertifiedMinimum Order Quantity:
1Warranty:
1 year
Product Description
The device is specially aimed at organic solvents, and the inert gas medium formed by circulating nitrogen is used to replace the usual air medium for spray drying. In addition to recycling products, organic solvents can be recovered. In view of the characteristics of low flash point or micro toxicity of organic solvents, it is flammable and explosive. The closed cycle spray system is specially designed.
|
Model
|
LTPG-5
|
LTPG-10
|
LTPG-25
|
LTPG-50
|
LTPG-100
|
LTPG-200
|
|
Water Evaporation (kg/h)
|
5
|
10
|
25
|
50
|
100
|
200
|
|
Method of Atomizing
|
High Speed Centrifugal Atomizer (mechanical drive or stepless frequency speed regulation is available)
|
|||||
|
Revolution of atomizer(rpm)
|
25000
|
22500
|
22500
|
21500
|
18000
|
16000
|
|
Diameter of Atomizing disc (mm)
|
60
|
60
|
60
|
120
|
120
|
150
|
|
Dried Powder Recovery Rate (%)
|
Around≥95
|
|||||
|
Air input Temp
|
160~200℃
|
|||||
|
Air output Temp
|
70~90℃
|
|||||
|
Hoisting height of Nozzle(m)
|
--
|
--
|
2.5
|
2.5
|
3.2
|
3.2
|
Work principle

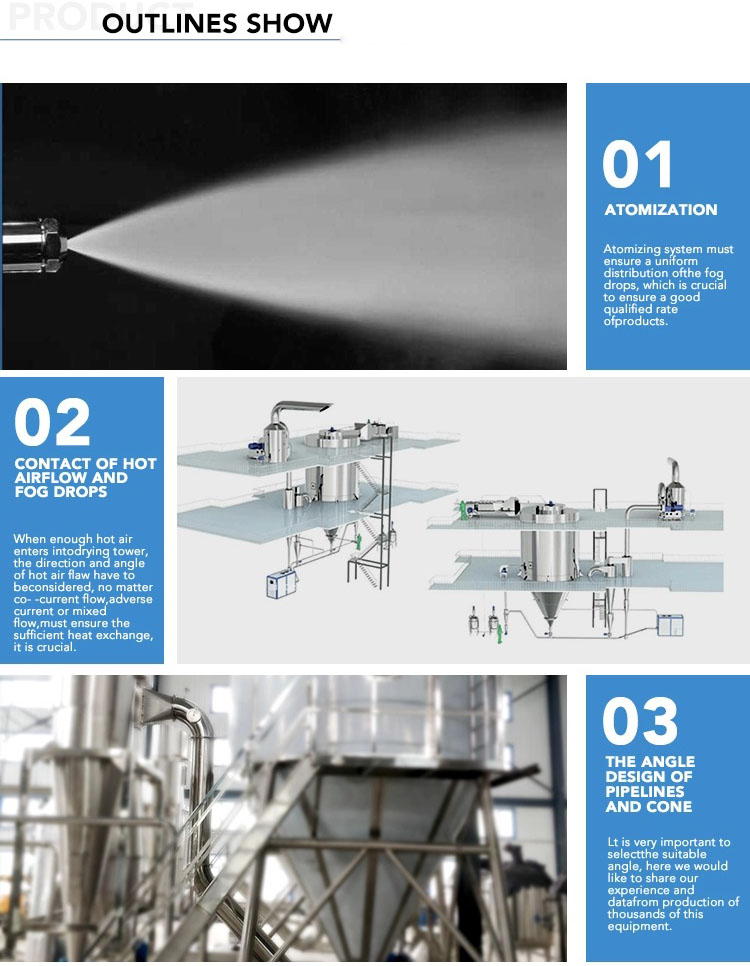

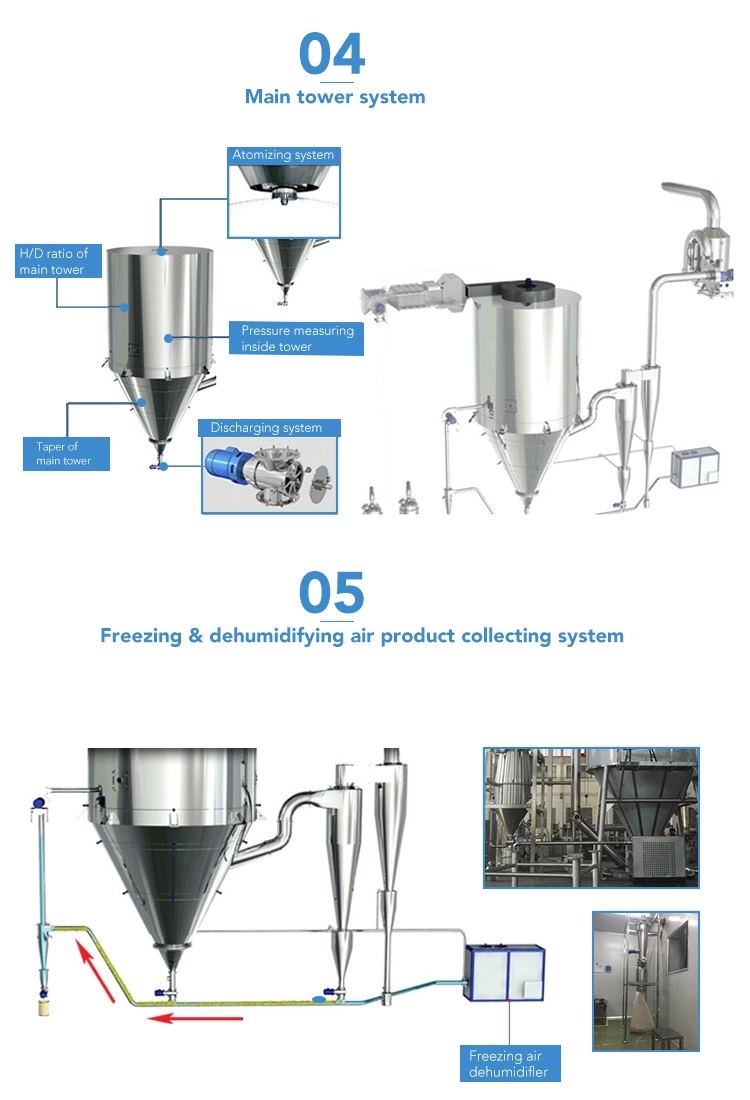

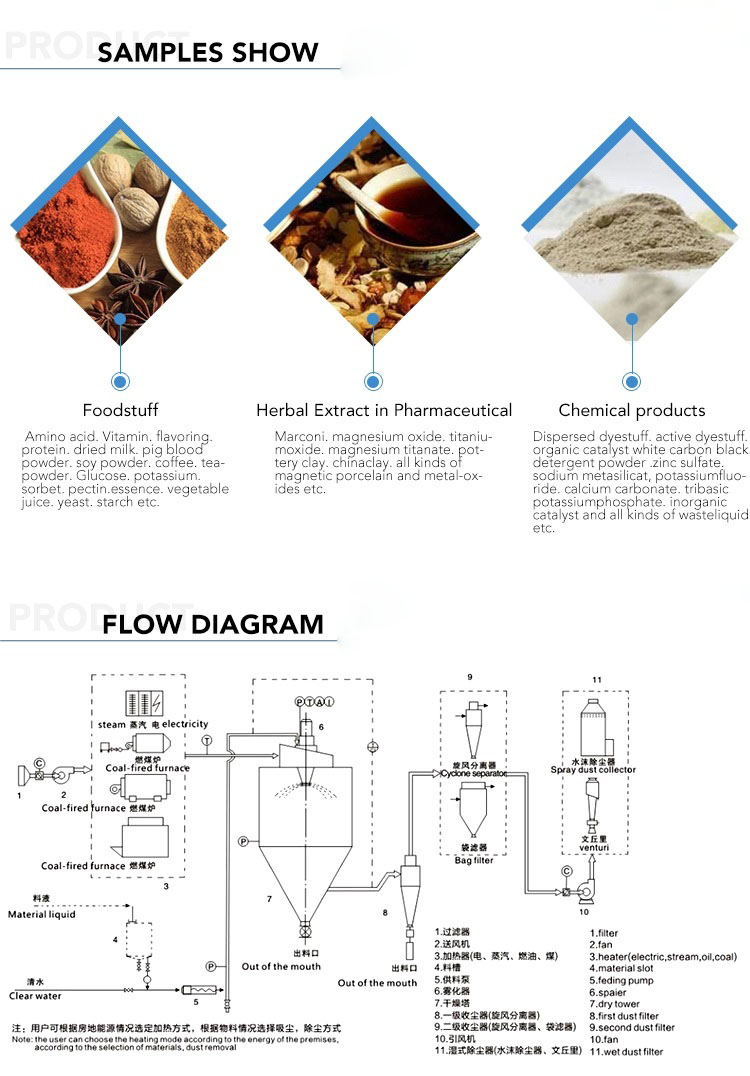

After filtering and heating, the air enters into the hot air distributor at the top of the centrifugal spray dryer, and the hot air will spirally and evenly goes into the drying chamber. The material liquid via high-speed centrifugal atomizer rotates into extremely thin vaporific liquid globule and parallelly flows with the hot air, and then the liquid will be dried into powdery products in a very short time (5-10 seconds). The waste gas after filtering will be expelled through the fan. For the wet organic solvent materials, the spray drying machine can be designed with closed cycle process. It can utilize cyclic nitrogen to dry the materials.
Features

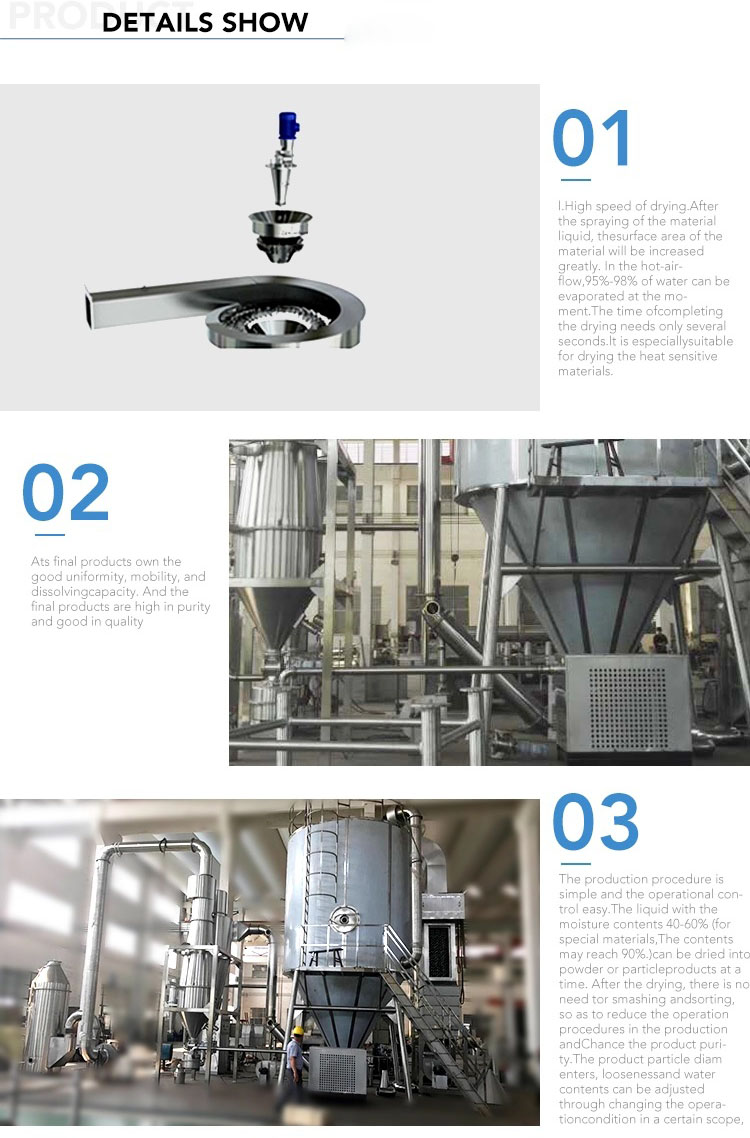

1.LPG centrifugal spray dryer with fast drying speed can constantly evaporate 95%-98% moisture. The drying time is about 5 seconds to 15 seconds. This drying equipment is especially suitable for thermosensitive substance.
2.This spray dryer has excellent uniformity, liquidity and solubility as well as high purity.Packing & Shipping
