Item NO.:
SX3-5-12Lead Time:
7daysShipping Port:
XiaMenUses:

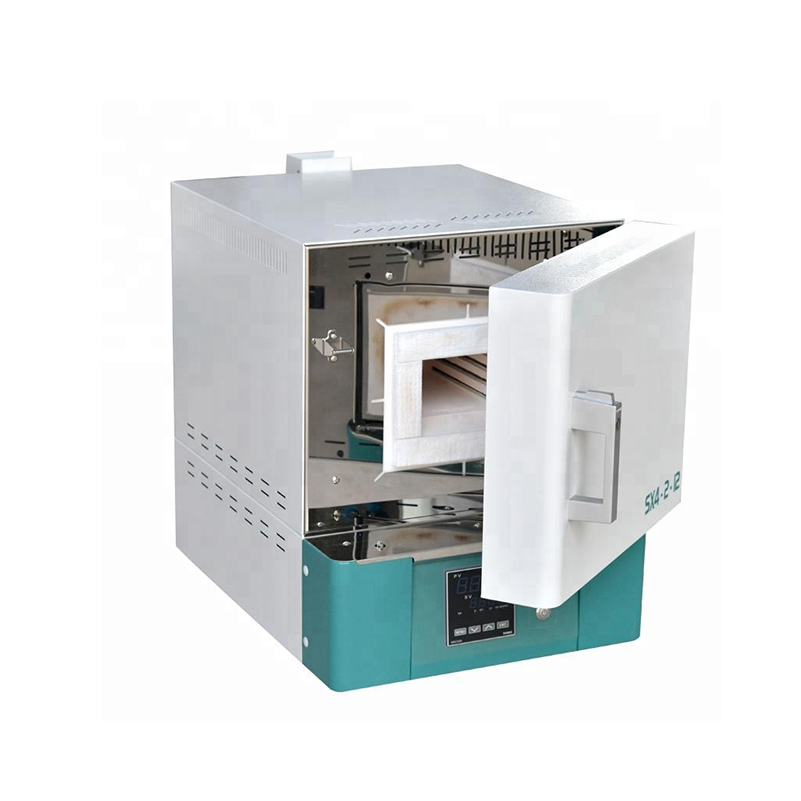

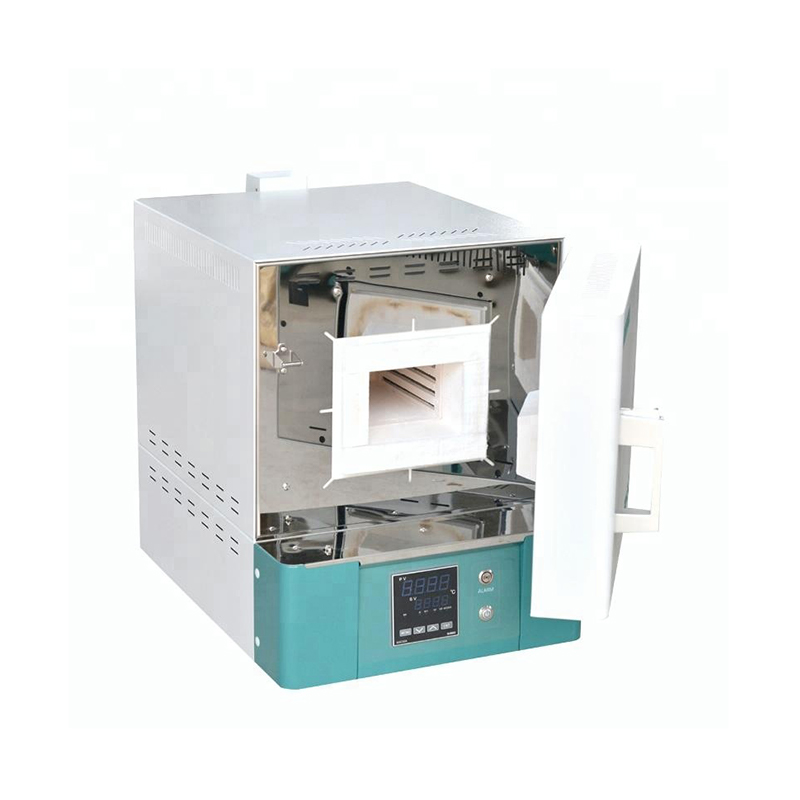

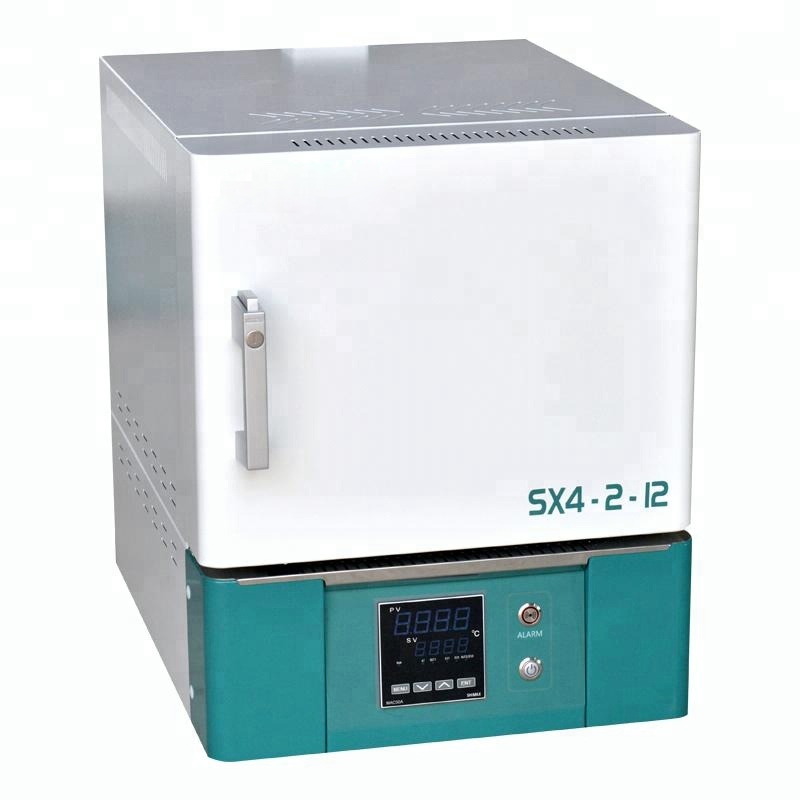

The product is used for elements analysis in colleges & universities, scientific research institutes, and laboratories of industrial and mining enterprises.
Characteristics:
1. Imported high density ceramic fiber.
2. It adopts the platinum rhodium thermocouple and import heating elements which has sensitive response, controls temperature with high precision and has good thermal endurance.
3. Dual Ceramic Inner Chamber, hollow heat insulation and good ventilation ensure that outer shell is not hot and the inner shell can cool down quickly, by which the temperature can go up and down quickly.
4. It has various safety protection measures as thermocouple failure and over temperature protection to avoid accidents occurring.
5. Heating rates is about 60 per min and Cooling rate is about 5 per min.
6. Furnace door and furnace mouth which adopt stainless steel material don't change color in
high temperature.
Parameters:
|
Model |
SX3-2.5-12 |
SX3-5-12 |
SX3-8-12 |
SX3-10-12 |
|
|
SX4-2-12 |
SX4-7-12 |
SX4-12-12 |
SX4-16-12 |
||
|
SX4-2-12P |
SX4-7-12P |
SX4-12-12P |
SX4-16-12P |
||
|
SX4-2-12PB |
SX4-7-12PB |
SX4-12-12PB |
SX4-16-12PB |
||
|
Heating mode |
Alloy wire heating in three sides left; right; top side. |
||||
|
Function |
Temp. Range |
100-1200℃ |
|||
|
Temp. Resolution Ratio |
1℃ |
||||
|
Temp. motion |
±1℃ |
||||
|
Temp.Rising time to max temp |
≤30min |
||||
|
Structure |
Chamber material |
Ceramic fiber |
|||
|
Outer shell |
cold rolling steel electrostatic spraying exterior; B model: stainless steel |
||||
|
Insulation layer |
Ceramic fiber |
||||
|
Heater |
Alloy heating wire |
||||
|
Power rating |
1.5kW |
3.0kW |
4.5kW |
6.0kW |
|
|
Exhaust hole |
φ30mm(chimney size 80*60mm) |
||||
|

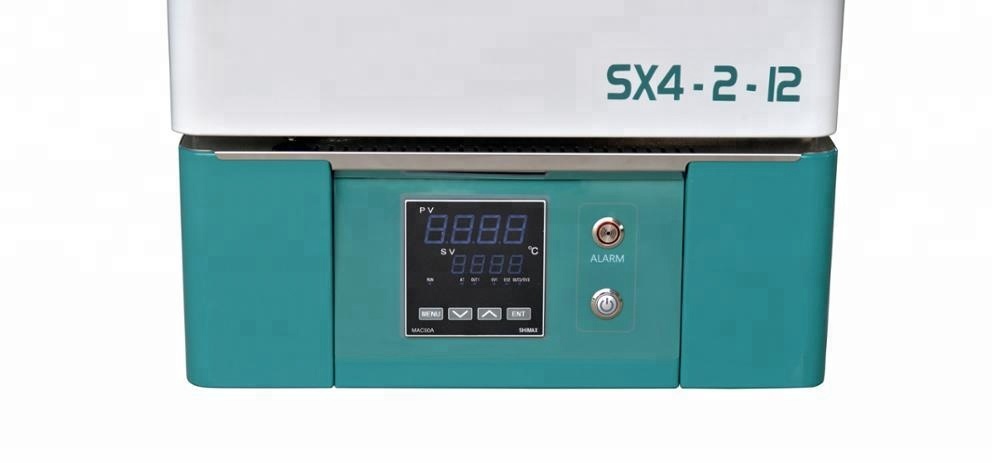

Controller |
Temp. control mode |
SX3 model: domestic brand single controller; SX4 model: Imported single controller form Japan; P model: Imported 40 sections program temperature control device form Japan |
|||
|
Temp. setting mode |
Touch button setting |
||||
|
Temp. display mode |
Measuring temperature: LED upper row, setting temperature: the lower row |
||||
|
Timer |
0-9999min (with timing wait function) SX3 Series no timing function |
||||
|
Operation function |
Fixed temperature operation, timing function, auto stop. |
||||
|
Additional function |
Sensor deviation correction, Temperature overshoot self-tuning, Internal parameter locked, Power-off parameter memory |
||||
|
Sensor |
SX3:Platinum-rhodium sensor;SX4:High precision K type sensor |
||||
|
Safety device |
Manual door security lock, over temperature sound-light alarm, door opening electrical outage, over-temperature protection,thermocouple failure |
||||
|
Specification |
Inner Chamber size (W*L*H)(mm) |
120*200*80 |
200*300*120 |
200*300*200 |
250*400*160 |
|
Exterior size (W*L*H)(mm) |
450*685*600 |
530*785*640 |
530*785*720 |
600*895*700 |
|
|
Packing size (W*L*H)(mm) |
580*775*730 |
660*875*770 |
660*875*850 |
730*985*830 |
|
|
Volume |
2L |
7L |
12L |
16L |
|
|
Current rating (50/60HZ) |
AC220V/6.6A |
AC220V/13.6A |
AC220V/20.4A |
AC380V/9.9A |
|
|
NW/GW (kg) |
33/37 |
45/50 |
62/68 |
77/96 |
|
|
optional type |
LCD program temperature control device with USD date storage |
||||
