Model Number:
OLT-TS-408LCompliance:
CE CertifiedMinimum Order Quantity:
1Capacity:
8-10 dayVoltage:
108V-380V 50/60HZTemperature range:
-20℃-500℃Dimension(L*W*H):
1050x1750x1350mmPackaging Details:
Standard export wooden boxDelivery Time:
8-10 dayClimatic Environmental simulation Temperature Humidity Test Chamber/Dust Test Chamber
Model No
OLT-TS-80L
OLT-TS-150L
OLT-TS-225L
OLT-TS-408L
OLT-TS-800L
OLT-TS-1000L
Inner chamber size W×H×D(mm)
400x500x400
500x600x500
500x750x600
600x850x800
1000x1000x800
1000x1000x1000
Exterior chamber size W×H×D(mm)
900x1350x910
950x1500x1050
950x1650x1150
1050x1750x1350
1450x1900x1350
1450x1900x1550
Temperature range
-160℃,-150℃,-120℃,-100℃,-80℃,-70℃,-60℃,-40℃,-20℃,0℃~+150℃,200℃,250℃,300℃,400℃,500℃
Humidity range
20%~98%RH
Temp.&Humi fluctuation
±0.2°C, ±0.5%RH
Temp.&Humi.uniformity
±1.5°C,±2.5% RH when RH is ≤ 75%,±4% RH when RH is > 75% (tested with the empty chamber, 30 minutes after stabilization)
Temp.&humi. Resolution
0.01°C,0.1%RH
Inner chamber material
SUS#304 stainless steel plate
Exterior chamber material
Stainless steel plate+ powder coated
Insulation
PU & Fiberglass wool
Wind circulation
Sirocco fan
Heating system
SUS#304 stainless steel high-speed heater
Humidifying
Surface evaporating system
Cooling
Imported compressor,Tecumseh compressor,finned type evaporator,air-cooling condenser
Dehumidifying
ADP critical dewpoint cooling/dehumidifying method
Controller
Digital electronic indicators+S.S.R.With PID automatic calculation capability
Power supply
AC 1 phase 220V; 2 phase 110V; 3 phase 380V 60/50Hz
High performance and quiet operation(65 dBa)
Space-saving footprint, designed for flush installation to wall
Stainless steel exterior
Full thermal break around doorframe
One 50mm (2") to 100mm (4") diameter cable port on left, with flexible silicone plug
Three levels of overheat protection, plus overcool protection
Easy lift-off service panels, electrical access on left
Detachable eight-foot power cord with plug
Direct water supply connection for continuous operation (supply tank optional)

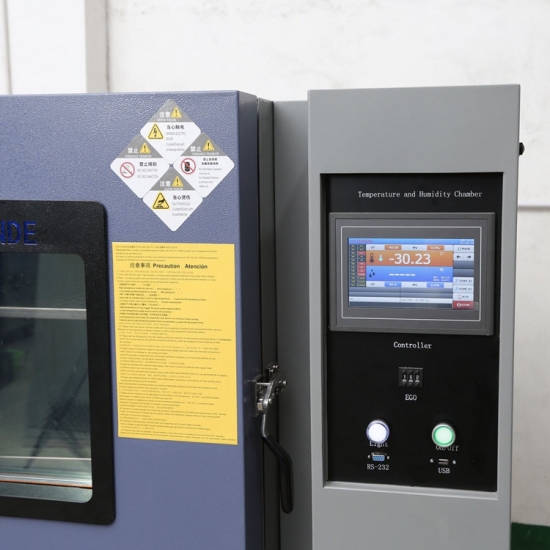

Touch-screen programmer/controller with Ethernet
Watlow F4T with touch-screen and Ethernet port standard
Save 120 profiles with up to 1200 steps each (ramp, soak, jump, auto-start, end)
One event relay for external device control, plus specimen power interlock relay for safety
Grande exclusive options include: Web Controller for full remote access; Chamber Connect software for basic data logging and monitoring. USB and RS-232 ports available, as well.

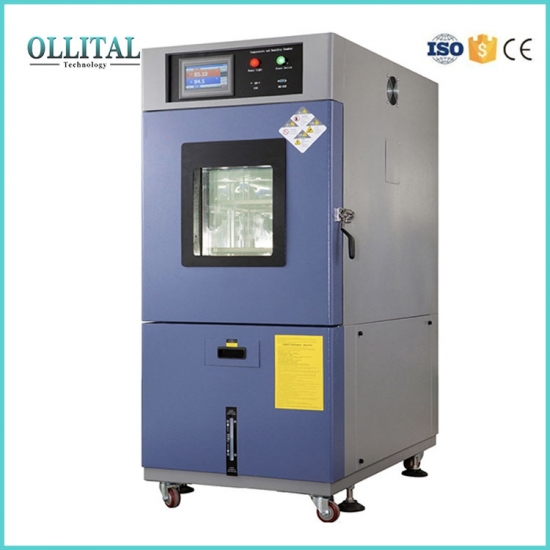

Temperature and Humidity Test Chambers provides an economical and space-saving solution for a variety of testing requirements. It cansimulate different climatic conditions, such as heat-endurance, cold-endurance, dryness-endurance, and humidity-endurance, which defines the Performance of material. By testing the product under different climatic conditions to see whether its performance can meet the intended requirements. It is widely applied in the industries of electron, electrical equipment, vehicle, metal, food, chemistry, building materials, luggage, adhesion tape, printing, packaging, and other product components and materials.
The programmer includes a temperature alarm as just one part of Grande's Three-tiered over-temperature protection system. A thermal fuse and a user-set independent limit are also included. In addition, a specimen power terminal allows the user to safely operate powered equipment inside or with the chamber.
Corresponding Standard of the Temperature and Humidity Test Chamber:
1.GB11158 high-temperature testing condition
2.GB10589-89 low-temperature testing condition
3.GB10592-89 high-low-temperature testing condition
4.GB/T10586-89 humidity testing condition
5.GB/T2423.1-2001 low-temperature testing condition
6.GB/T2423.2-2001 high-temperature testing condition
7.GB/T2423.3-93 humidity testing condition
8.GB/T2423.4-93 alternating temperature testing machine
9.GB/T2423.22-2001 temperature testing method
10.IEC60068-2-1.1990 low-temperature testing method
11.IEC60068-2-2.1974 high-temperature testing method
12.GJB150.3 high-temperature test
13.GJB150.4 low-temperture test
14.GJB150.9 humidity test
Grande Expertise in Humidity Control
Controlling humidity in a small environmental chamber can be especially challenging. Grande expertise in humidity control brings intelligent design that is carefully integrated into the Criterion chambers. The humidity subsystems are designed for reliability, convenience, and performance:
An external steam generator allows expanded range and is easy to maintain.
A separate de-humidification coil improves low humidity control and range.
Wet-bulb humidity sensor is a “primary measurement method” for accuracy. It is also economical, easy to maintain, and reliable because it has no risk of failure due to over-saturation. (Read why analog is preferred over digital.)
Direct water supply connection is standard, with options for water filtering and recirculating water tank.
