Model Number:
XB-OTS-1000PCompliance:
CE CertifiedMinimum Order Quantity:
1Voltage:
108V-380V 50/60HZPackaging Details:
Export wooden packageDelivery Time:

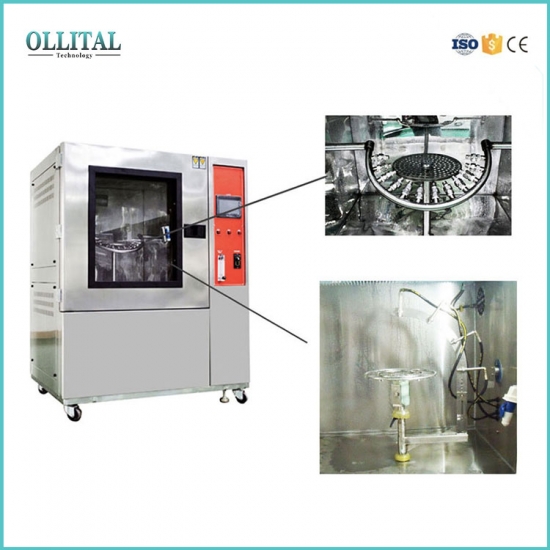

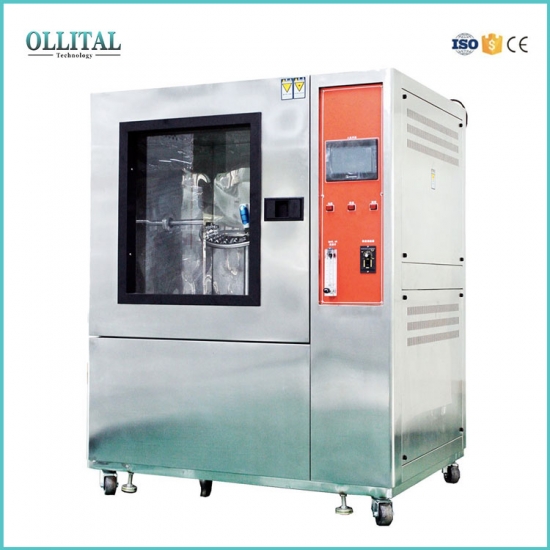

6-8 dayRain spray test chamber simulates the watet drip environment to test the water resistance and sealing of the samples during storage, transportation and usage. It is widely applied to electrical and electronic products, lamps and lanterns, electrical cabinet, electrical components, automobile, motorcycle and its spare parts and other products. It provides the basis to improve the performance of the products.
This product uses the scientific design makes the device capable of realistic simulation drip, water spray, splashing water, environmental, water and so on. Into the overall control system and the use of inverter technology, making the rotation angle of rainfall in the test frame, spray angle and swing the pendulum swinging spray volume can automatically adjust the frequency.
IPX9 Rain Test Chamber
Item
Specification
Internal chamber size
1000Wx1000Dx1200Hmm
External chamber size
1500Wx1200Dx2100Hmm
Spray water temperature
80℃
Spray water pressure
80~100bar (8000~10000Kpa)
Water flow
14~16L/min
Spray water distance
10~15cm
Spray water angle
0°, 30°, 60°, 90°, each angle spray for 30 seconds
Sample rotatory table
5rpm
Water spray interval time
30 seconds (adjustable)
Water cycling system
Built-in chamber bottom for recycling
Controller
PLC touch screen
Chamber material
Internal: SUS304 stainless steel, external: stainless steel
Power
AC380V, 50Hz, three phase
IPX7:
The lowest height less than 850mm of the housing, so it should be 1000mm lower than the water surface.
The highest height equal to or higher than 850mm of the housing, so it should be 150mm lower than the surface.
Test time: 30 mins
IPX8:
Testing device height: 1200mm
Testing device - diameter: 500mm
Pressure range: 0~3kg/c square meters
Testing device material; the main structure are all made of stainless steel Sample holder
Pressure way: Pneumatic
Pressure: 10 atmospheric pressure equal to 100m depth of water pressure test
Water temperature: room temperature
With water pipe to inspect water level, water level gauge (water level height can be read by the height gauge)
IPX-1 Protected against falling water Equivalent to 3-5mm rainfall per minute for a duration of 10 minutes.
Unit is placed in its normal operating position.
IPX-2 Protected against falling water when tilted up to 15 degrees - Same as IPX-1 but unit is tested in 4 fixed positions -
tilted 15 degrees in each direction from normal operating position.
IPX-3 Protected against spraying water - Water spraying up to 60 degrees from vertical at 10 liters/min at a pressure of 80-100kN/m2 for 5 min.
IPX-4 Protected against splashing water - Same as IPX-3 but water is sprayed at all angles.
IPX-5 Protected against water jets - Water projected at all angles through a 6.3mm nozzle at a flow rate of 12.5 liters/min at
a pressure of 30kN/m2 for 3 minutes from a distance of 3 meters.
IPX-6 Protected against heavy seas - Water projected at all angles through a 12.5mm nozzle at a flow rate of 100 liters/min at
a pressure of 100kN/m2 for 3 minutes from a distance of 3 meters.
IPX-7 Protected against water immersion - Immersion for 30 minutes at a depth of 1 meter.
IPX-8 Protected against water submersion - The equipment is suitable for continual submersion in water under conditions which are identified by the manufacturer.
1. Do you offer after-sales service? How can I ask for that? And how about the warranty?
Every machine from our factory has a 14-month warranty after shipment. Generally,
we offer 12 months for the FREE maintenance, while considering of sea transportation,
we can extend 2 months for our customers.
If your machine doesn’t work, you can send E-mail to us and we will try our best to find
the problem by email or skype video chat if neccesary. After confirmation of the problem,
we can send you new spare parts or provide on-site repair.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery
time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider
making a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine.
4. How to install and use the product?
We will send you operating instructions, English video by Email. Or you can download on our
officail website directly.
Most of our machine is shipped with a whole part, which means it is already installed, all you
need to do is to connect the power cable and start to use. And if possible, we can also install
your machine at site.
