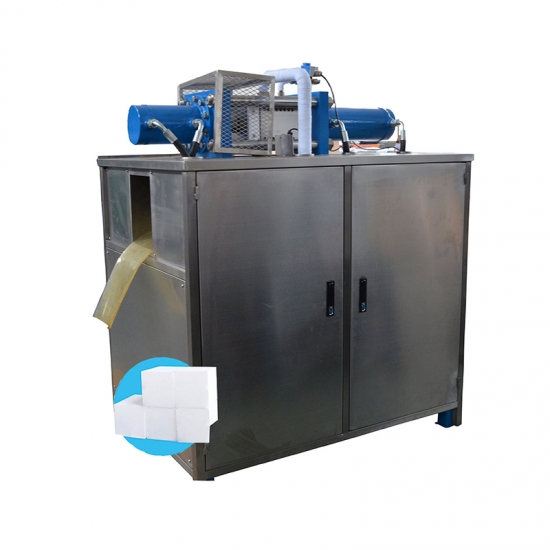

Co2 Making Dry Ice Blocks Machine Freezing Cooling Making

  • Lead Time:

    1-3 days
  • Model Number:

    HR-KZ-240
  • Compliance:

    CE Certified
  • Minimum Order Quantity:

    1
  • Operation method:

    PLC
  • Mixing method:

    Touch Screen
  • Warranty:

    1 year
  • Product Details

Full touch screen operation, PLC control system is adopted to further realize the full automation of the machine, improve the production efficiency, and greatly enhance the controllability and stability of the production process, making this series of dry ice pellets widely used in refrigeration storage, fresh-keeping cold chain, and transportation Cooling, dry ice cleaning and deburring industries. It can independently produce and customize various specifications of dry ice cube machines according to customer needs.

Parameter

Model HR-KZ-120 HR-KZ-240
HR-KZ-500
Production capacity  120-190kg/h 240-370kg/h 300-500kg/h
Dry ice specification 105×125×(10-60)mm
200×90×(10-60)mm
210×180×(20-210)mm
The density of dry ice 1550kg/m³
1550kg/m³
1550kg/m³
Liquid and solid Co2 conversion ratio ≥42%
≥42%
≥42%
The total power 5.5kg 5.5kw
11kw
Equipment weight 500KG
1000KG
1.8T
Overall dimensions 120cm×65×130cm
132cm×120cm×165cm
210cm×100cm×170cm

Features

1. The body is made of stainless steel, and the fully enclosed design makes the equipment more integrated, reduces the noise of the equipment when it is working, and prevents the danger caused by the accidental touch of the personnel during the work.

2. The core electrical parts are original.

3. The hydraulic pump station and the pellet forming module are all built-in. On the one hand, it reduces the footprint of the equipment, and on the other hand, it also makes dry ice production avoid the impact of dust.

4. Touch LCD panel operation, you can set the number of hydraulic cylinder purge, working time, etc., reducing the error rate of manual operation.

5. Optional food-grade configuration of the hydraulic system (using stainless steel parts and edible food oil as the hydraulic transmission medium)

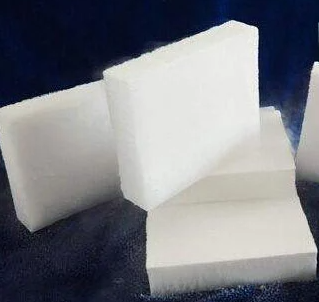

Shape of Ice
