Electric Electrical Insulating Liquids Transformer Oil Tester

GD-4294 Automatic Petroleum Oil X-ray Fluorescence Oil Sulfur Analyzer/Sulfur Content Tester

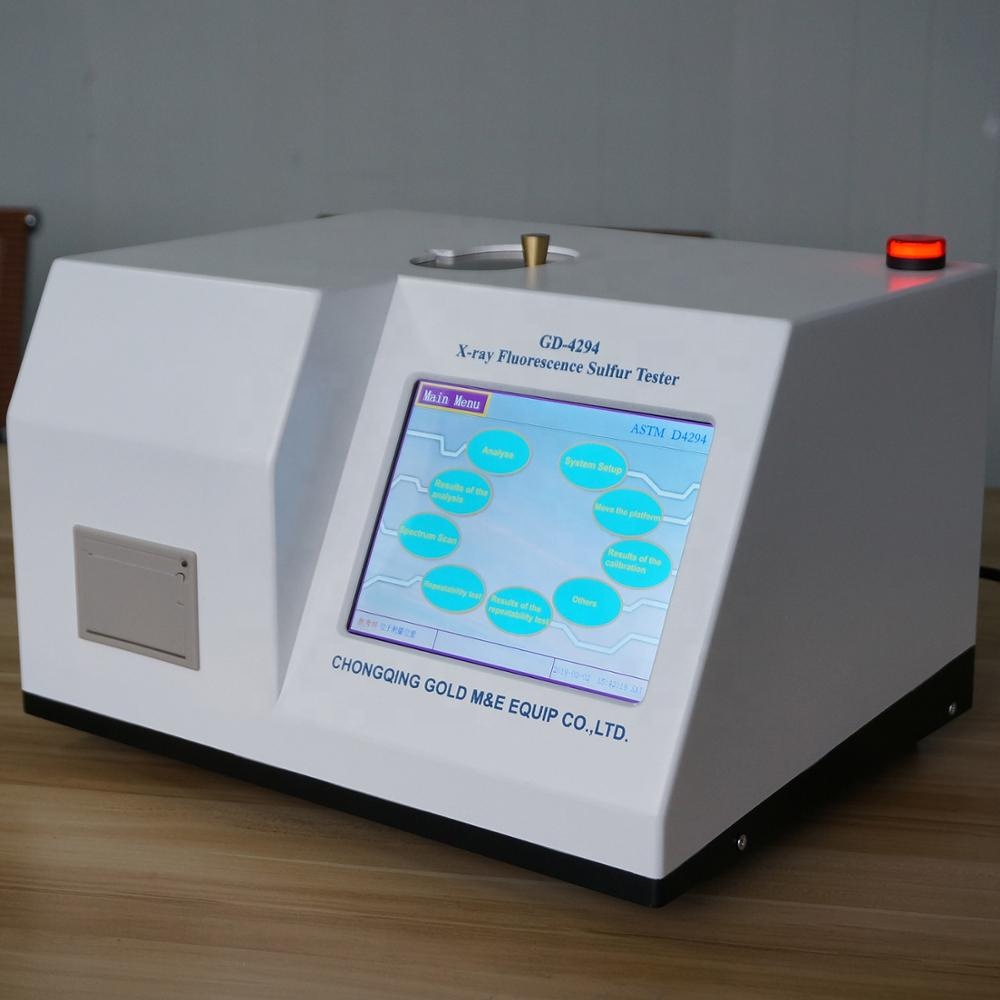

Real Pictures of Automatic ASTM D4294 XRF Fluorescence Sulfur-in-Oil Analyzer

Introduction:

• Environment pollution is attracting more and more governments and public concern. The cry for ecological environment and atmospheric environment protection is increasingly louder. The key culprit to atmospheric destruction and pollution is discharge of CO2 and SO2, which are from combustion of power fuels. Lowering down the sulfur content in the gasoline, diesel oil, heavy oils used in vehicles, ships, and airplanes will highly reduce pollution to atmosphere. Europe and our government have promulgated a series of standards on sulfur content of petroleum products to restrict its production and discharge. SO2 may also cause catalyst poisoning in petrochemical industry and form acid rain in the atmosphere.
• The astm d4294 Sulfur Content Tester is specially designed to determine sulfur content in the petroleum products.
• The astm d4294 sulphur in oil analyzer adopts energy-dispersive principle, and with electrical, mechanical and microprocessor integration design, so it is rapid and accurate.
• The astm d4294 sulphur in oil analyzer can meet the requirements of National Standard GB/T 17040 and GB/T11140 on repeatability and reproducibility, and it can also meet requirements of ASTM D4294-03 on these indexes.
• The astm d4294 sulfur analyzer provides a measure to determine sulfur content during petroleum or petrochemical production process.

Applications:

Characteristics:

(1) With electrical, mechanical and microprocessor integration design, so it is compact and beautiful;

(2) It can determine various products and in a wide measurement range. It is rapid for analysis and it only need little standard sample.

(3) Adopts fluorescence intensity ratio analysis methods, it can make correction to temperature and pressure automatically and it can also make correction to ratio of carbon and hydrogen (C/H).

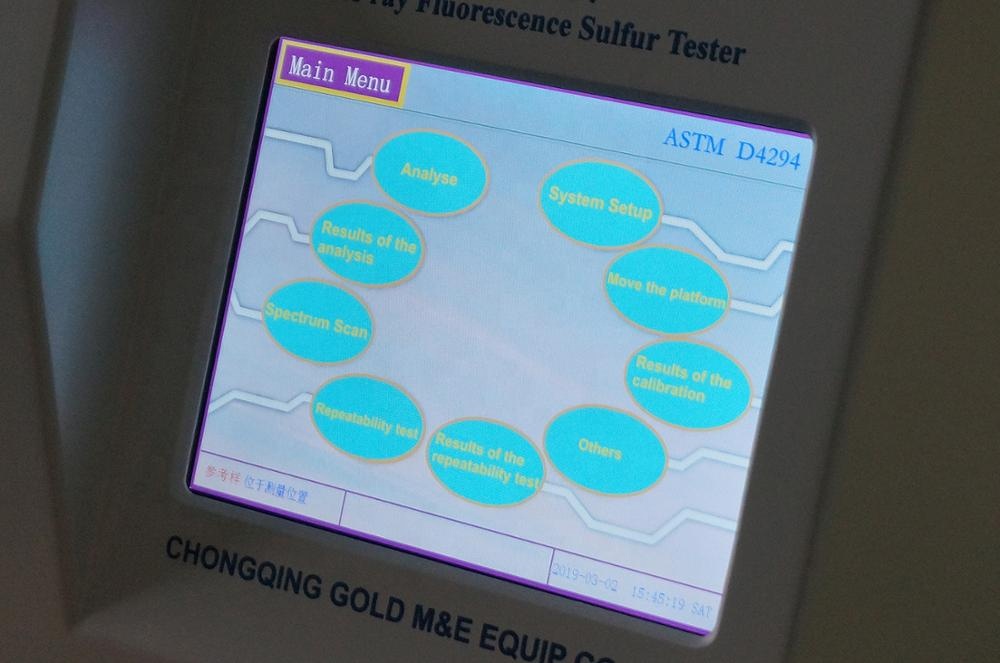

(4) 8-inch (1024*768)capacitive touch screen;

(5) It  can determine its working state and electric parameters by making repeatability test and spectrum scan using reference samples.

(6) Equipped with a RS232 serial port, it can connect with any computer .

(7) It takes disposable sample cell with Mylar film, so it can avoid cross contamination. Sample cell is made by a multifunction pressure shaping device, so it is rapid and convenient. There is a hole on the sample cell cover and you can record sample serial number, S% (m/m), and date on the sample cell cover.

(8) The sample holder is installed on a slide rail,It is convenient and it can avoid any contamination to detection system.

(9) It can save large quantity of test data. You can browse test data and calibration curves at any time.

(10) The sulfur analyzer uses a thermal printer, so it is easy to replace printing paper.

(11) Tightly protection measures to avoid oil leakage. The sample cell is placed on the leakage protection device. The sample cell can enter into the detection system together with the leakage protection device only during sample analysis procedures. If the instrument is not at sample analysis state, the leakage protection device will move out, so this can avoid any contamination to the detection system.

(12) Its safe X-ray protection measures can keep people from injury of X-ray radiation.

Main Parameters:
