Ultrasonic Homogenizer
Home
/Ultrasonic Equipment
/Ultrasonic Homogenizer
/
High quality 1.5L scale lab spray dryer equipment
Lab scale spray dryer is suitable for the production of in universities, research institutes and food and pharmaceutical chemical enterprises.
With the continuous improvement of environmental protection requirements and the increasingly severe water pollution problem, the research and applica
In modern chemical industry, scientific research and pharmaceutical fields, ultrasonic high-pressure reactor is an efficient experimental equipment, w
In modern laboratories and scientific research environments, high-temperature and high-pressure reactors have become indispensable core equipment. Cla
A microreactor is a small device used for chemical experiments and industrial production. Its main function is to simulate and reproduce the condition
Lead Time:
1-3Product Orgin:
ChinaShipping Port:
XiamenModel Number:
JY96-IINMinimum Order Quantity:
1Mixing method:
LCDPower:

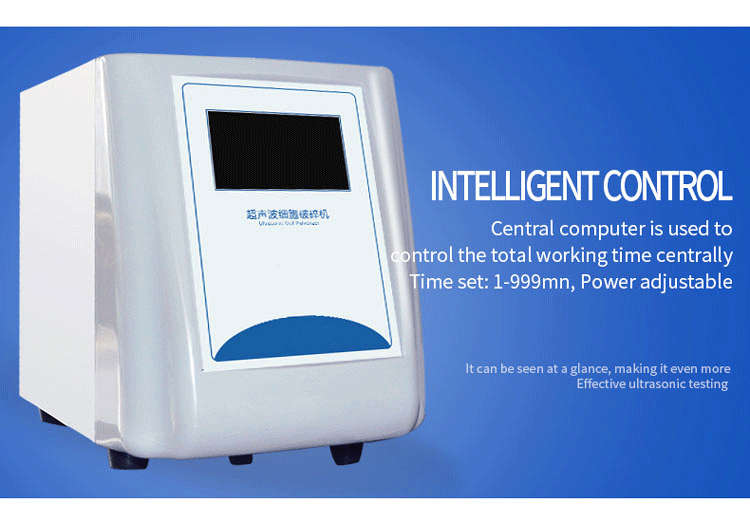

220V/110V/50Hz/60HzUltrasonic processor is one of the commonly used equipment for laboratory sample pretreatment. It is widely used in the fields of nano industry, biology, chemical industry, pharmacy, dyes, optics, jewelry, aerospace, hardware, and automobile manufacturing.
Product Parameter
|
Model
|
JY96-IIN
|
JY88-IIN
|
JY92-IIN
|
|
Power
|
1.5-150W continous adjustable
|
10-1000W continous adjustable
|
20-1200W continous adjustable
|
|
Mixing capaciity
|
0.1-150ml
|
0.1-750ml
|
0.1-1000ml
|
|
Display mode
|
Touch screen
|
||
|
Ultrasonic setting time
|
0.1-99.9S
|
||
|
Total time setting
|
1-99H59M59S
|
||
|
Frequency range
|
20-25khz
|
19.5-20.5khz
|
19.5-20.5khz
|
|
Temp control range
|
0-100℃
|
||
|
Alarm Functions
|
Time,temp,overload,no-load
|
||
|
Probe(standard)
|
Φ6(mm)
|
Φ6(mm)
|
Φ20(mm)
|
|
Optional probe
|
Φ2,3,8(mm)
|
Φ2,3,8,10(mm)
|
Φ2,3,10,12(mm)
|
|
Data storage
|
20 sets
|
||
|
Power(optional 110V)
|
220V/110V/50Hz/60Hz
|
||
|
Optional function
|

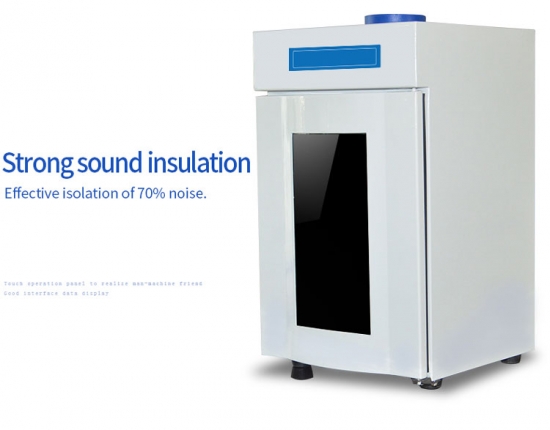

cumputer+data printing finction+soundproof cabinet Lighting and serilization
|
||
|
Controlling mode
|
Single chip microcomputer +TFT touch control
|
||
|
Voice alarm and prompt function
|
Yes
|
||
Model
JY92-IIDN
HX-IIN
JY98-IIDN
Power
10-900W continous adjustable
10-1000W continous adjustable
20-1200W continous adjustable
Mixing capaciity
0.1-600ml
0.1-750ml
0.1-1000ml
Display mode
Touch screen
Ultrasonic setting time
0.1-99.9S
Total time setting
1-99H59M59S
Frequency range
20-25khz
19.5-20.5khz
19.5-20.5khz
Temp control range
0-100℃
Alarm Functions
Time,temp,overload,no-load
Probe(standard)
Φ6(mm)
Φ6(mm)
Φ20(mm)
Optional probe
Φ2,3,10,12,15(mm)
Φ2,3,8,10,12,15(mm)
Φ3,6,10,15,20,25,28(mm)
Data storage
20sets
Power(optional 110V)
220V/110V/50Hz/60Hz
Optional function
cumputer+data printing finction+soundproof cabinet Lighting and serilization
Controlling mode
Single chip microcomputer +TFT touch control
Voice alarm and prompt function
Yes
Product Introduction

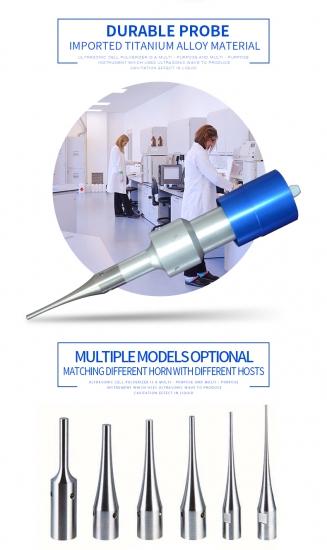

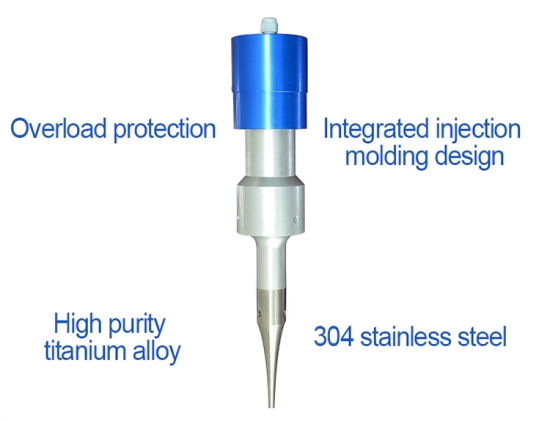

Titanium Alloy Tips/Probe/Horn size reference value
Probe size
Power range suitable
Capacity range
Power rate
Φ2
Power less than 1000W
0.2-5ml
1-35%
Φ3
3-10ml
1-45%
Φ6
10-100ml
1-60%
Φ8
20-200ml
1-70%
Φ10
30-300ml
10-90%
Φ12
50-500ml
20-95%
Φ10
Power higher than 1200W
30-300ml
1-70%
Φ15
100-600ml
1-80%
Φ20
100-1000ml
10-90%
Φ22
200-1000ml
20-95%
Φ25
500-1500ml
40-95%
Product Applacations
