220V/110V/50Hz/60HzDesktop Portable 1200W Electric Microbiology Ultrasonic Homogenizer Sonicator
Ultrasonic processor is one of the commonly used equipment for laboratory sample pretreatment. It is widely used in the fields of nano industry, biology, chemical industry, pharmacy, dyes, optics, jewelry, aerospace, hardware, and automobile manufacturing.
Product Parameter
|
Model
|
JY96-IIN
|
JY88-IIN
|
JY92-IIN
|
|
Power
|
1.5-150W continous adjustable
|
10-1000W continous adjustable
|
20-1200W continous adjustable
|
|
Mixing capaciity
|
0.1-150ml
|
0.1-750ml
|
0.1-1000ml
|
|
Display mode
|
Touch screen
|
||
|
Ultrasonic setting time
|
0.1-99.9S
|
||
|
Total time setting
|
1-99H59M59S
|
||
|
Frequency range
|
20-25khz
|
19.5-20.5khz
|
19.5-20.5khz
|
|
Temp control range
|
0-100℃
|
||
|
Alarm Functions
|
Time,temp,overload,no-load
|
||
|
Probe(standard)
|
Φ6(mm)
|
Φ6(mm)
|
Φ20(mm)
|
|
Optional probe
|
Φ2,3,8(mm)
|
Φ2,3,8,10(mm)
|
Φ2,3,10,12(mm)
|
|
Data storage
|
20 sets
|
||
|
Power(optional 110V)
|
220V/110V/50Hz/60Hz
|
||
|
Optional function
|

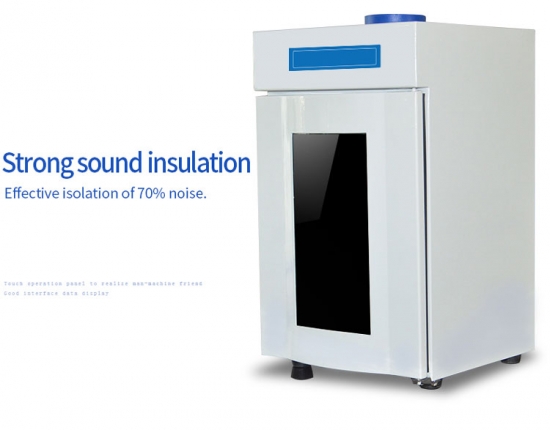

cumputer+data printing finction+soundproof cabinet Lighting and serilization
|
||
|
Controlling mode
|
Single chip microcomputer +TFT touch control
|
||
|
Voice alarm and prompt function
|
Yes
|
||
|
Model
|
JY92-IIDN
|
HX-IIN
|
JY98-IIDN
|
|
Power
|
10-900W continous adjustable
|
10-1000W continous adjustable
|
20-1200W continous adjustable
|
|
Mixing capaciity
|
0.1-600ml
|
0.1-750ml
|
0.1-1000ml
|
|
Display mode
|
Touch screen
|
||
|
Ultrasonic setting time
|
0.1-99.9S
|
||
|
Total time setting
|
1-99H59M59S
|
||
|
Frequency range
|
20-25khz
|
19.5-20.5khz
|
19.5-20.5khz
|
|
Temp control range
|
0-100℃
|
||
|
Alarm Functions
|
Time,temp,overload,no-load
|
||
|
Probe(standard)
|
Φ6(mm)
|
Φ6(mm)
|
Φ20(mm)
|
|
Optional probe
|
Φ2,3,10,12,15(mm)
|
Φ2,3,8,10,12,15(mm)
|
Φ3,6,10,15,20,25,28(mm)
|
|
Data storage
|
20sets
|
||
|
Power(optional 110V)
|
220V/110V/50Hz/60Hz
|
||
|
Optional function
|
cumputer+data printing finction+soundproof cabinet Lighting and serilization
|
||
|
Controlling mode
|
Single chip microcomputer +TFT touch control
|
||
|
Voice alarm and prompt function
|
Yes
|
||
|

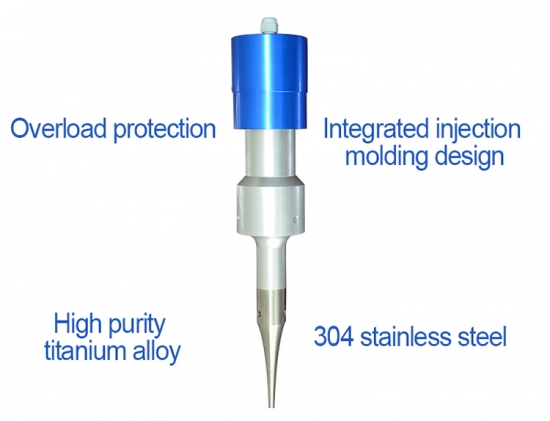

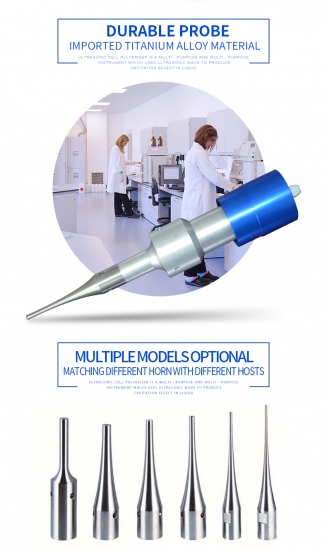

Titanium Alloy Tips/Probe/Horn size reference value
|
|||
|
Probe size
|
Power range suitable
|
Capacity range
|
Power rate
|
|
Φ2
|
Power less than 1000W
|
0.2-5ml
|
1-35%
|
|
Φ3
|
3-10ml
|
1-45%
|
|
|
Φ6
|
10-100ml
|
1-60%
|
|
|
Φ8
|
20-200ml
|
1-70%
|
|
|
Φ10
|
30-300ml
|
10-90%
|
|
|
Φ12
|
50-500ml
|
20-95%
|
|
|
Φ10
|
Power higher than 1200W
|
30-300ml
|
1-70%
|
|
Φ15
|
100-600ml
|
1-80%
|
|
|
Φ20
|
100-1000ml
|
10-90%
|
|
|
Φ22
|
200-1000ml
|
20-95%
|
|
|
Φ25
|
500-1500ml
|
40-95%
|
|
Product Applacations
Packing & Shipping
Ollital Technology would like to establish win-win business cooperation with distributors all over the world.
