Model Number:
XB-OLT-800PCompliance:
CE CertifiedMinimum Order Quantity:
1Voltage:
108V-380V 50/60HZDimension(L*W*H):
1250×1800×1100mmPackaging Details:
Export wooden packageDelivery Time:

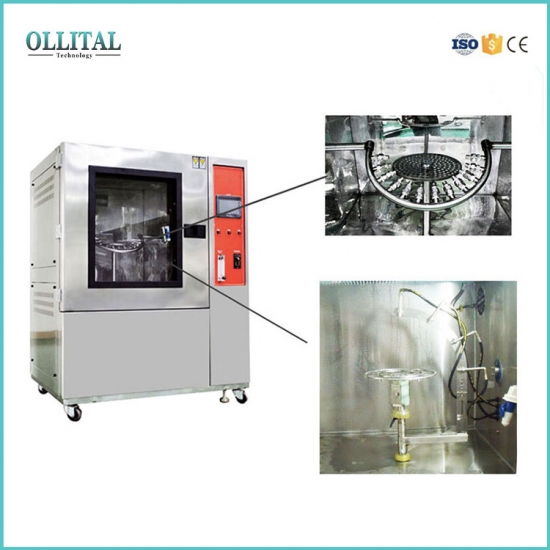

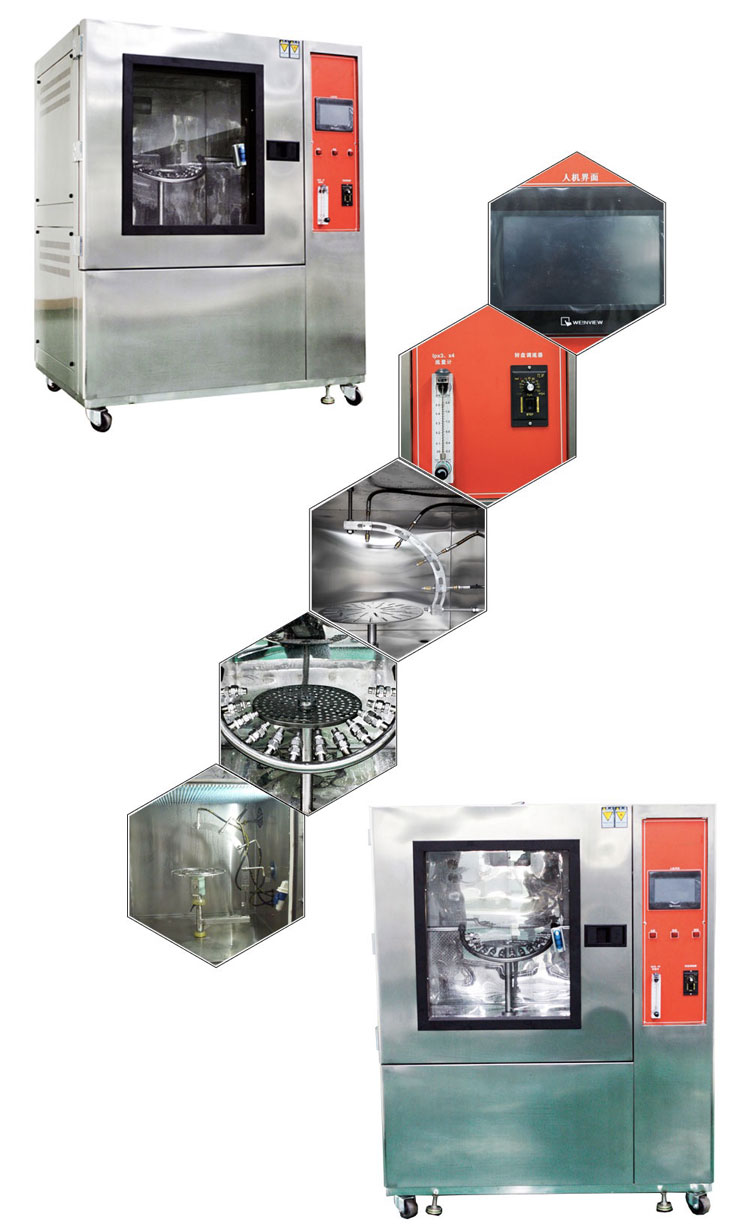

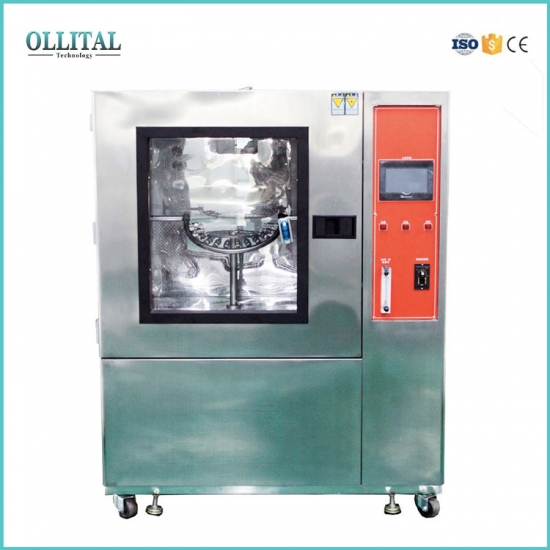

8-10 daysRain Test Chamber uses the scientific design makes the device capable of realistic simulation drip, water spray, splashing water, environmental, water and so on. Into the overall control system and the use of inverter technology, making the rotation angle of rainfall in the test frame, spray angle and swing the pendulum swinging spray volume can automatically adjust the frequency.
XB-OLT-800P
Model
XB-OLT-1000P
Internal Dim.W×H×D(mm)
800×800×800
1000×1000×1000
External Dim.W×H×D(mm)
1250×1800×1100
1750×1850×1300
Spray Type
Total Water
R1
1.8
IP×1
With in 1~1.5mm/min(In drip box)
Flow
R2
3.2
IP×2
With in 3~3.5mm/min(In drip box)
(L/min)
S1
24.5
IP×3
angle±600,R:400mm,1.1L/min
S2
39.2
IP×4
angle±1800,R:400mm,1.8L/min
Pressure of
R1
0.1
1.Flow rate of the water=0.07L/min
spray nozzle
2.1P×3,Radius:400mm,16Number or open
(kgf/cm*2)
holes=16,total water flow:1:1L/min.
R2
0.3
3.1P×4,Radius:400mm,25Number or open
S1
1
holes=25,total water flow:1:8L/min.
S2
3
*Radius:200mm,R400mm.
(For 1P×3,1P×4 only)
1. Meet the requirement of IEC60529 standard IPX3 water pouring test and IPX4 water splash test.
2. The test sample will be put or installed on the center of the half-round sinuous pipe and make the bottom of the test samples and the oscillating axis in a horizontal position. During test, the sample would spin around the center line.
3. Can manual default the test parameters, complete testing automatically shut off the water supply and pendulum pipe angle automatic zeroing and automatic eliminate seeper, avoid scale blockage needle tip.
4. PLC, LCD panel test procedure control box, stainless steel curved pipe, alloy aluminum frame, stainless steel shell.
5. Servo drive mechanism, guarantee the pendulum pipe angle of precision, the overall pendulum tube structure for hang a wall.
6. Best after sales service: One year free parts maintenance.
7. Customization is available & welcomed.
1. Do you offer after-sales service? How can I ask for that? And how about the warranty?
Every machine from our factory has a 14-month warranty after shipment. Generally,
we offer 12 months for the FREE maintenance, while considering of sea transportation,
we can extend 2 months for our customers.
If your machine doesn’t work, you can send E-mail to us and we will try our best to find
the problem by email or skype video chat if neccesary. After confirmation of the problem,
we can send you new spare parts or provide on-site repair.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery
time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider
making a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine.
4. How to install and use the product?
We will send you operating instructions, English video by Email. Or you can download on our
officail website directly.
Most of our machine is shipped with a whole part, which means it is already installed, all you
need to do is to connect the power cable and start to use. And if possible, we can also install
your machine at site.
