Lead Time:
1-3 daysModel Number:
OLT45-50Minimum Order Quantity:
1Power:
11Warranty:
1 year

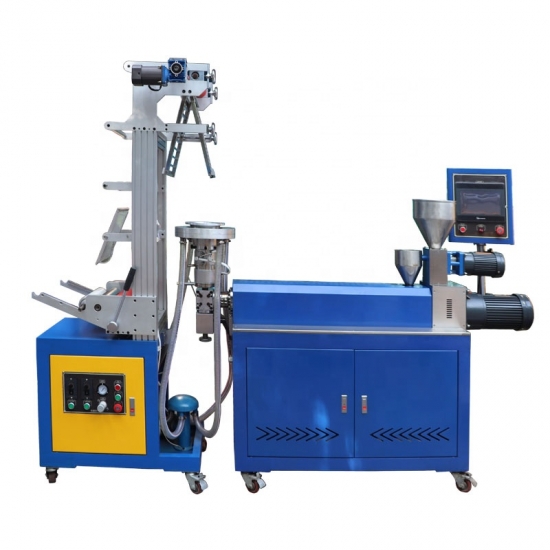

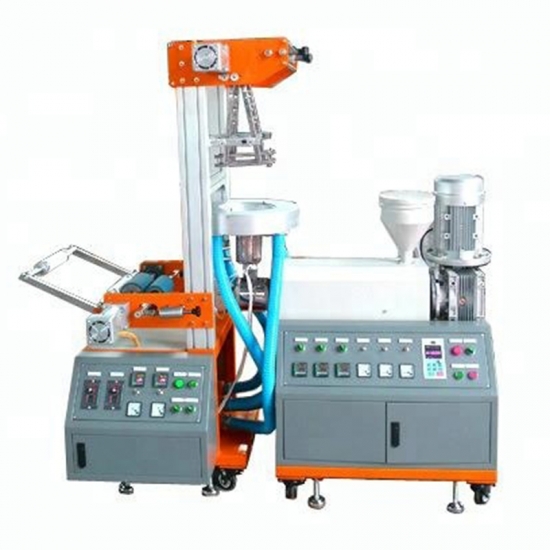

Model OLT45-50 squeezing machine is adopted fixed die head,machine tube is adopted 38CrMoAl,having the best hardness and corrosion-resisting performance after nitrogen treatment and precision processing.
FM-600 auxiliary machine can adjust and operate freely within the range of 700mm in accordance with the technological demand of different materials, and having package board mechanism which can make vest type bag.
Rolling up device with double-drawing in and do-uble cutting ope, its power is adopted moment motor, with friction plate,it can keep suitable tension, drawing in and rolling up in good order, easy to change roll.
Main technical parameters
|
Model |
45 |
|
Diameter of Screw(mm) |
Φ45 |
|
Max. Width of Folded Film (mm) |
100-500 |
|
Single-face Thickness of Film(mm) |
0.01-0.10 |
|
Max. Extrusion(kg/h) |
35 |
|
L/D |
26:1 |
|
Power of Main Motor(KW) |
7.5-11 |
|
Power of Traction Motor(KW) |
1.1 |
|
Heating Power(KW) |
11 |
|
Overall Dimension (mm) |
3800*1900*3000 |
|
Weight(T) |
1.5T |
Configuration
|
Temperature meter |
Omron |
|
Switch |
Schneider |
|
Inverter |
Delta |
|
Relay |
Omron |
|
Solenoid valve |
Taiwan |
|
Thermocouple |
RKC JAPAN |
|
Voltmeter |
Japan |
|
Ammeter |
Japan |
|
Barrel and screw material |
38 chrome-molybdenum aluminum , nitrogen treated |
|
Gear box |
hard tooth surface |
|
Head |
Rotary die head |
|
winder |
Double rewinder |
|
Main motor |
CHINESE BRAND |
|
Heating ring |
cast aluminum |
|
winder motor |
torque motor |
|
Embossing roller |
yes |
|
Power |
3PASE 380V 50HZ |
2.Spare Parts
|
1 |
Filter net |
3M |
|
2 |
Lodestone |
1 pc |
|
3 |
Blowing pipe |
2 pc |
|
4 |
Thermocouple |
2 pc |
|
5 |
Voltage meter |
1 pc |
|
6 |
Screw heater (stainless steel) |
2 pc |
|
7 |
Three through heater (stainless steel) |
1 pc |
|
8 |
Test pen |
1 pc |
|
9 |
Screw driver |
1 pc |
|
10 |
Inner hexagon wrench |
1 pc |
|
11 |
Glove |
4 pc |
|
12 |
Temperature meter |
1 pc |
|
13 |
Current meter |
1 pc |
|
14 |
AC contactor CJX1-22A/220V |
1 pc |
|
15 |
Mandril |
1 pc |
3.Optional equipments should extra cost
|
1 |
TREATER |
USD500.00 |
CHINA BRAND |
|
2 |
AUTO LOADER |
USD500.00 |
CHINA BRAND |
|
3 |
AIR SHAFT -2PCS |
USD300 |
|
|
4 |
with pneumatic cylinder on top tower and winder side. With pneumatic cylinder control the pressure roller and embossing roller |
USD300 |
|
|
5 |
Mechanics-screen changer |
USD900 (for SJ-A50. 55) Usd1100 (for SJ-A65, 65-1) |
