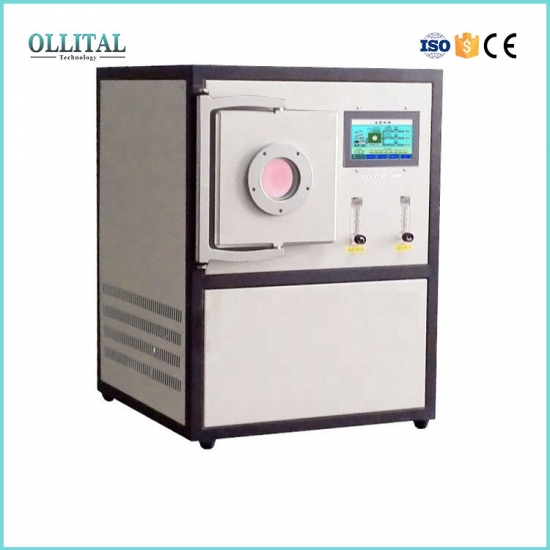

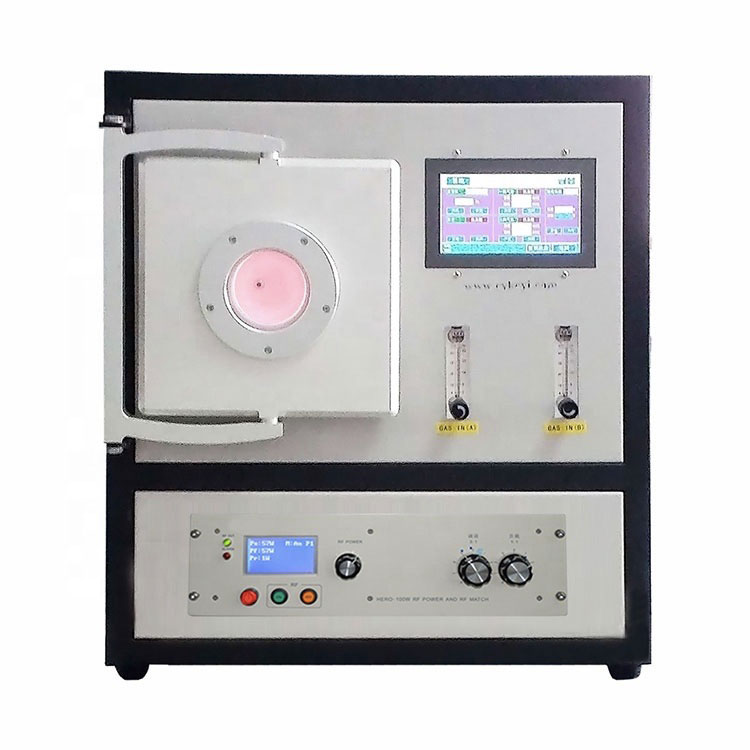

6-8 dayLab 13.56Mhz 2L Plasma Cleaner System 100W/150W With Stainless Steel Chamber
Plasma cleaning machine divided into two types, atmospheric and vacuum; it is widely used in semi-conductor, PCB, medical diagnosis, elastomer industry, optical industry,etc.

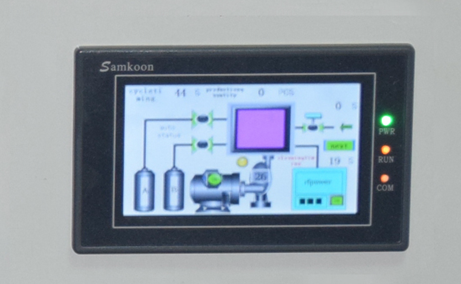

LCD touch controller

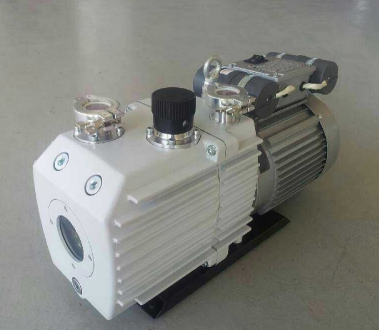

10-100Pa, equipped with a mechanical pump
If request high vacuum, please select our turbo pump system
(Optional)
Two way Float Flow Gas Control10-100ml/min, adjustable

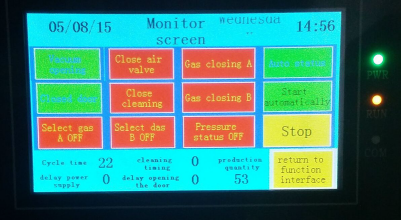

PLC Touch Panel Program controlAuto/Manual two mode for optional
Stainless Steel Chamber with Φ 100*270mm
If Chamber is not enough for using, we have Φ 150*270mm (capacity: 5L)200* 200*260mm (capacity: 10L)for optional

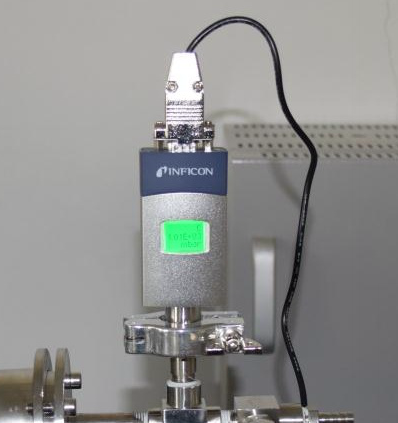

A simple digital pressure gauge is equipped for reading
If request high precision vacuum reading, please select digital vacuum gauge:
(Optional)
Model No.
OLT-PS-2L
Product Name
2L Plasma Cleaner
Display
Working voltage
AC 108V-240V, 50Hz
RF Frequency
40KHz (13.56MHz for optional)
Coupled mode
condenser coupling, without pollute sample
RF power
200 w
RF offset
< 0.2KHz
Characteristic impedance
50Ω, automatic matching
Vacuum degree
Gas speed
Control
Inner chamber size
Pressure Gauge
Cooling way
Forced cooling
Outer dimension
440*390*200mm
Gross weight
35 kg
Time of delivery
10 working days after receive the payment
1. Environmental technologies: plasma process is the role of gas - solid coherent reactor consumes no water resources, no need to add chemicals and no environmental pollution.
2. Wide adaptability: regardless of processing substrate type, such as metals, semiconductors, oxides, and most of the polymer material can be a good deal;
3. Low temperature: close to room temperature, particularly suitable polymer materials, have a longer retention time and a higher surface tension than the corona and flame method.
4. Multifunctions: it involves only a shallow surface of polymer materials (10 -1000A), while preserving the characteristics of the material itself can give it one or more new features;
5. Low cost: the device is simple, easy operation and maintenance, continuous operation,a few bottles of gas can replace thousands of kilograms cleaning fluid
6. The whole process technology can be controlled: all the parameters can be setted by the computer and data recording
7. Treated geometry Unlimited: Big or small, simple or complex, parts or textiles can be processed.
