Model Number:
OLT-PS-10LCompliance:
CE CertifiedMinimum Order Quantity:
1Capacity:
10LVoltage:
108V-240V 50/60HZWarranty:
3 yearPackaging Details:
Export wooden packageDelivery Time:

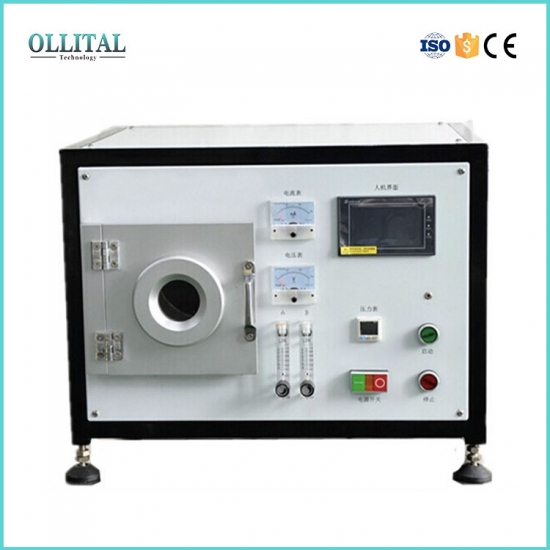

8-10 dayPhysical Deposition System Plasma Cleaner For Wafers
Model no.
OLT-PS-10L
OLT-PS-P5L
OLT-PS-2LA
OLT-PS-2L-B
Display
LCD touch screen
LED button screen
Power supply
AC 108V-240V 50Hz
Working current
plasma cleaner working current less than 1.2A
Radio frequency power
100-400w, adjustable
< 200w, adjustable, or customized
RF frequency
13.56MHz(offset less than 0.4KHz)
40KHz(offset less than 0.2KHz)
Characteristic impedance
50 Ohm,automatch
Chamber capacity
10L
5L
2L
2L
Vacuum degree
60Pa-100Pa
10Pa-100Pa
30Pa-100Pa
10Pa-1000Pa
Cleaning time
1~6000ml adjustable
Gas flow speed
10~100ml
Control mode
Manual control or Programmable control
Vacuum pump
CY-4C
Vacuum chamber temper.
less than 65℃
Cooling type
forced air cooling
Equipment list
plasma cleaner:1set; vacuum pump: 1set; vacuum high-pressure hose: 1pc;O type card: 4pcs;pr
