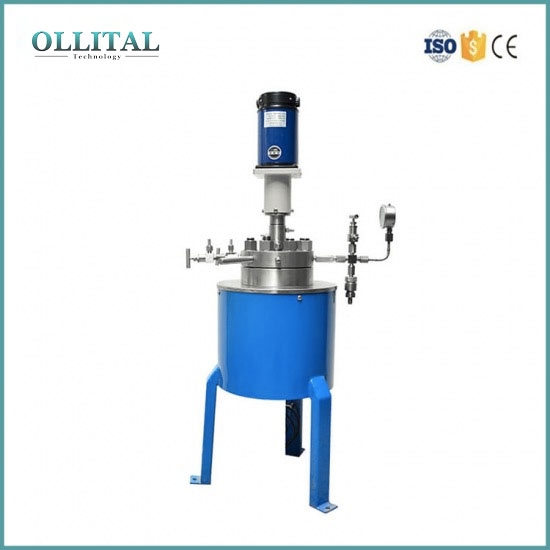

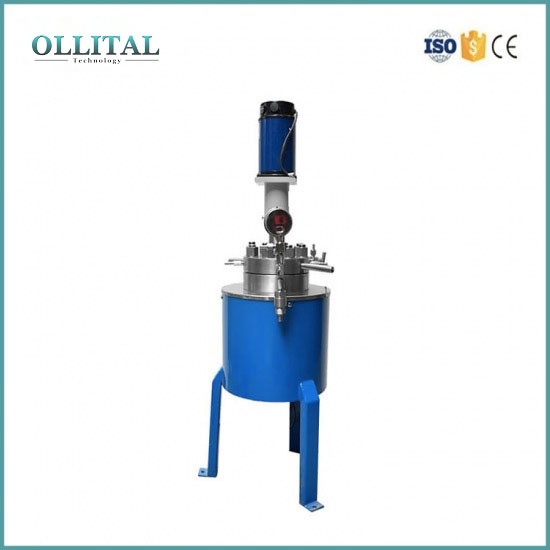

High Pressure Stirring Reactor
Home
/Lab Reactor
/High Pressure Stirring Reactor
/
High quality 1.5L scale lab spray dryer equipment
Lab scale spray dryer is suitable for the production of in universities, research institutes and food and pharmaceutical chemical enterprises.
With the transformation and upgrading of the global manufacturing industry, the vulcanizer industry has ushered in new technological breakthroughs. Fr
With the rapid development of the global manufacturing industry and the continuous improvement of production efficiency, the injection molding machine
Soxhlet extractors for plant extraction Soxhlet extractors are widely used in plant extraction and are an indispensable and important equipment for pl
The Soxhlet Extractor is a device used in chemical laboratories, mainly used to extract active ingredients from samples. It heats the solvent and
Model Number:
OLT-HP-20Minimum Order Quantity:
1Voltage:
AC108V~240VCapacity:
20LUse pressure:
22MpaService temperature:
350℃Lead Time:
6-8 dayWarranty:
One YearPackaging Details:
Standard export wooden box
|
Model |
OLT-HP-O5
|
OLT-HP-O1 |
COLT-HP-25 |
OLT-HP-5
|
OLT-HP-1
|
OLT-HP-2
|
OLT-HP-2
|
OLT-HP-5
|
OLT-HP-10
|
OLT-HP-20 |
OLT-HP-30 |
|
Capacity (L) |
0.05 |
0.1 |
0.25 |
0.5 |
1 |
2 |
3 |
5 |
10 |
20 |
30 |
|
Setting pressure (Mpa) |
22 |
||||||||||
|
Setting temperature (℃) |
350 |
||||||||||
|
Accuracy of temperature control (℃) |
±1 |
||||||||||
|
Heating method |
General electric heating, the others are far-infrared, thermal oil, steam, circulating water, etc |
||||||||||
|
Stirring torque (N. cm) |
120 |
||||||||||
|
Heating power (kW) |
0.6 |
0.8 |
1.5 |
2 |
2.5 |
4 |
7 |
10 |
10 |
||
|
Temperature controller |
Real~time display and adjust the speed, temperature, time, heating voltage, with standard PID automatic temperature adjustment meter. |
||||||||||
|
Temperature controller working environment |
Ambient temperature 0-50℃, relative humidity 30-80% |
||||||||||
|
Lifting mode |
manual lift or electric lift |
||||||||||
|
Material |
304/316 Stainless steel, Titanium, also can plus PTFE liner |
||||||||||
|
Controller-Digital Display Intelligent digital temperature control meter, with the functions of automatic temperature control, speed display and stepless speed control, equipped with heating electric meter, motor ammeter, working time display meter. |
|
Static Seal-No Leakage Reaction vessel stationary ring and stationary ring base create the perfect seal with no need for o-rings, according to their structural features, contact stress increased with increasing working pressure, sealing performance is better under the high pressure. |
|
|
Pressure Gauges-Seisnic Stability Seismic pressure gauges for the environment places severe vibration, the pulse of media tolerance, and the impact of a sudden unloading, gauges clear instructions and stability, with good vibration resistance. |
|
Safety Valve-Safe and Sellable The reaction kettle equipped with safety valve, that adopted blasting diaphragm, blasting numerical error is small, instantly exhaust gas fast, safe and reliable. Each valve adopts needle valve, reciprocating closed form, seal is reliable and durable. All safety valves with resonable installation and releasing unblocked. |
|
|
|
Packaging:
-The glass parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
Shipping:
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent.
| Shipping method | Note |
|
Express |
Door to door, very convenient, don't need to clearance or pick-up |
| By air |
Airport to airport, you need to do the customs clearance and pick up the goods at your local airport, which you can have a local shipping agent to do for you. |
| By sea |
Port to port and you need to do the customs clearance and pick-up the goods
at your local port, which you can have a local shipping agent to do for you. |
