High quality 1.5L scale lab spray dryer equipment
Lab scale spray dryer is suitable for the production of in universities, research institutes and food and pharmaceutical chemical enterprises.
In laboratories, medical, pharmaceutical and food industries, every step of sterilization is related to quality and safety. As the core equipment for
In many professional fields such as material aging testing, photocatalytic experiments, and environmental weathering research, there are extremely hig
In the pharmaceutical, biological research, food processing and medical industries, sterilization is not only related to product quality, but also dir
Working principle The high-intensity physical force generated by high-speed vibration and beating is used to beat the sample, so that the cells or tis
Model Number:
OLT-30FCompliance:
CE CertifiedMinimum Order Quantity:
1Capacity:
6 kg /24hVoltage:
108V-240V 50/60HZPower:
3.5 KWWarranty:
1 yearDimension(L*W*H):
880x735x1310mmWeight:
300 kgPackaging Details:
Export wooden packageDelivery Time:

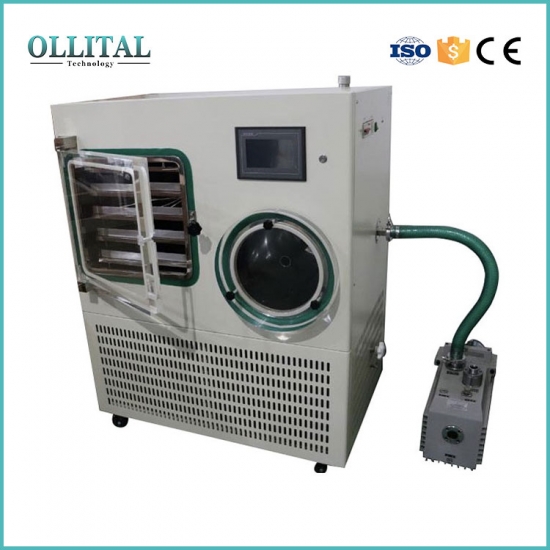

6-8 dayOLT-30F Freeze Dryer is suitable for pilot scale or small scale production.
This series is one of our patent products.This series of dryers with heating shelf,
freezing and drying process are finished in the same place.It changes traditional
complicated operation and prevents the product from pollution.
| Freeze drying area | 0.4m2 |
| Condenser capacity | 6 kg /24h |
| Condenser temperature | Min. ≤-70℃ |
| Vacuum degree | ≤10 Pa |
| Shelf temperature | -50℃----+70℃ |
| Shelf layers | 4+1 layers; 50mm spacing |
| Shelf size | 300x340x15mm |
| Bulk capacity | 4 L, 10mm thickness |
| Vial capacity Φ12mm | 2600 pcs |
| Vial capacity Φ16mm | 1440 pcs |
| Vial capacity Φ22mm | 728 pcs |
| Electric defrosting | N/A |
| Cooling | Air,draughty,ambient temperature≤25℃ |
| Voltage | 220V, 50Hz |
| Host dimension | 880x735x1310mm |
| Weight | 300 kg |
| Power | 3.5 KW |
With heating shelf and PID control standard, with programmable function
Freeze and drying process are completed on shelves
32 groups programme can be stored, each programme can be set up 36 segments
With organic glass observation window, whole process is easy to see
Silicon oil fills hollow shelves, with most uniform shelf temp.,consistent and repeatable drying
Big touch screen LCD display drying curves
Internal surface of rectangular chamber and productc tray are constructed of stainless steel
Air-let-in valve with nitrogen is available
Eutectic point test device is optional
