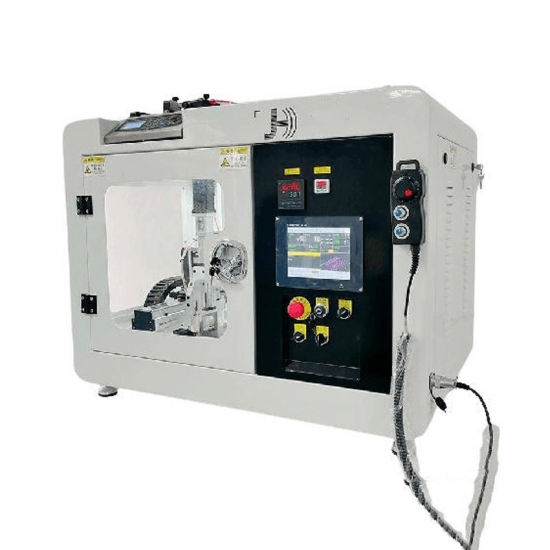

60K Converging Nozzle Ultrasonic Atomization Spraying Equipment

Ultrasonic spraying equipment is a kind of equipment that combines ultrasonic technology with spraying technology.

Item NO.:
OLT-JH922
Lead Time:
7-15 day
Product Orgin:
China
Shipping Port:
Xiamen
Power:
10-100W customize

Contact Now

email：kevin@ollital.com email：kevinollital@gmail.com

Product Details

60K Converging Nozzle Ultrasonic Atomization Spraying Equipment is a spraying equipment that uses 60 kHz ultrasonic frequency. It uses converging nozzles to atomize liquid into extremely fine micron-sized droplets and accurately sprays them onto the target surface. The high-frequency vibration and specially designed nozzles of this equipment can produce a uniform and concentrated atomization effect, which is suitable for precision spraying applications that require high coating uniformity and thickness control, such as electronic components, medical devices and high-end coating products.

	60K Converging Nozzle	All types of sprinkler heads		60K Converging Nozzle	All types of sprinkler heads
Nozzle operating frequency	60.0±2KHz	20-200KHz	Control method	PLC control, touch screen + buttons
Nozzle power	30W	10-100W	Control content	Feeding, pressure, temperature, ultrasonic spraying, etc.
Continuous spraying volume	0-1200ml/h,Customizable		Liquid supply method	Precision injection pump
Effective spray width	2-260mm,Customizable		Heating and drying system	Optional
Spraying uniformity	<5%		Vacuum adsorption	Optional
Solution conversion rate	>95%		Ultrasonic solution disperser	40KHz, CNC generator, automatic frequency tracking, optional
Dry film thickness	20nm-100μm		Ultrasonic solution disperser power	≤200W
Solution viscosity	≤50cps		Input voltage	220V±10%,50/60Hz
Temperature range	1-500℃		Atomized particles (median value)	10-45μm(Distilled water)

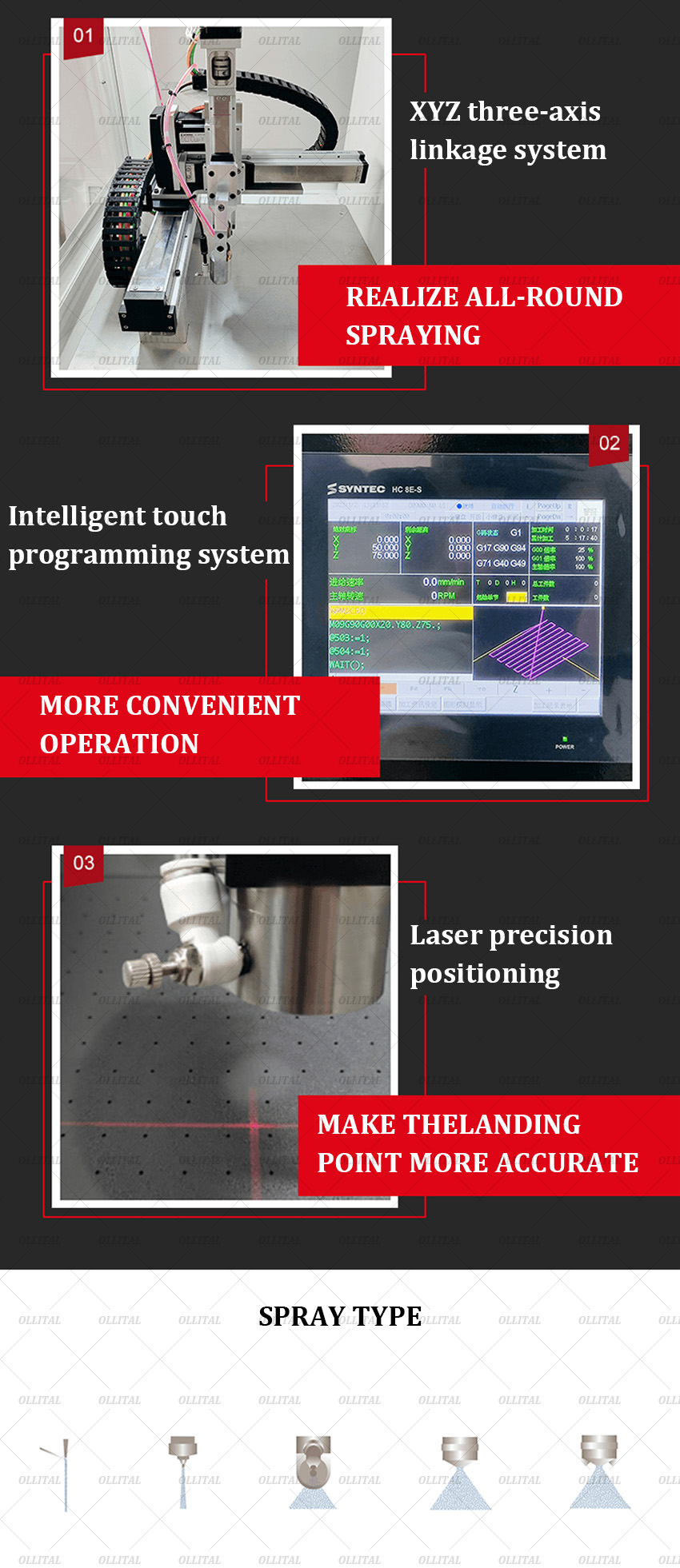

Direct flow air pressure	≤0.15Mpa		Movement method	XYZ three-axis, G code programming

Working Principle

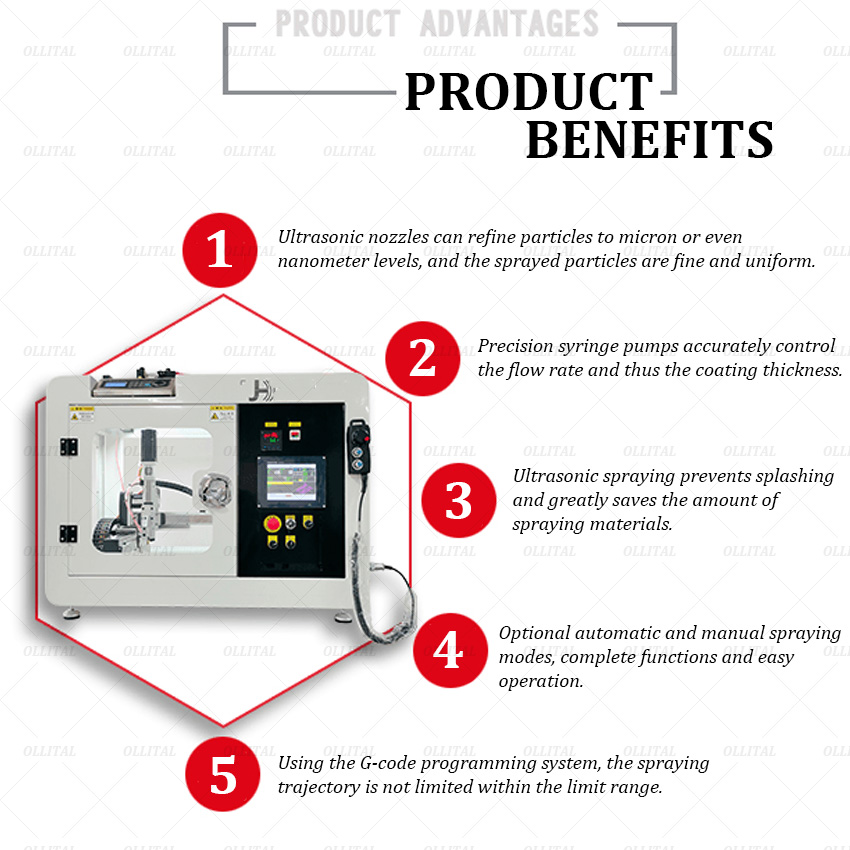

The equipment uses ultrasonic technology to break up the liquid into fine particles through vibration, and sprays these tiny droplets on the specified surface through a convergent nozzle. Its core components are a 60kHz ultrasonic generator and a convergent nozzle, which can achieve ultra-fine atomization effect and precise spraying control.
Ultrasonic vibration: The ultrasonic frequency is 60kHz, which produces high-frequency vibration to break the liquid into micron-sized droplets.
Converging nozzle: The convergent design ensures that the sprayed droplets are concentrated in a smaller range to achieve high-precision coating control.

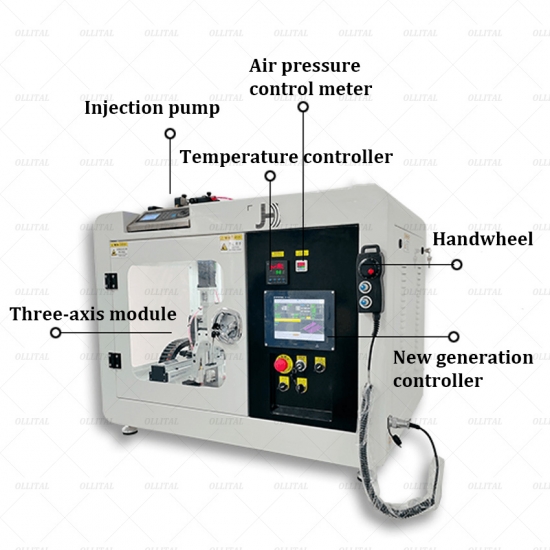

Equipment composition

60kHz ultrasonic atomizer: Generates an ultrasonic frequency of 60 kilohertz to ensure efficient atomization of the liquid and form fine droplets.
Converging nozzle: The specially designed nozzle gathers the atomized droplets, controls the spraying range, and makes the atomized particles fall accurately on the target surface.
Liquid delivery system: Ensures continuous supply of liquid materials during the spraying process, and the flow rate is adjustable to meet different coating thickness requirements.
Control system: can adjust ultrasonic frequency, atomization intensity, liquid flow rate and other parameters to ensure the spraying requirements of different materials.

Application field

Electronic industry: used for spraying conductive film, insulating film and resistor film, etc., with extremely high requirements for coating thickness and uniformity.
Medical industry: suitable for spraying drug coating or antibacterial coating on the surface of medical devices to ensure uniform distribution and precise dosage control.
New energy industry: used for spraying process of new energy equipment such as thin film batteries to ensure the consistency of coating thickness and functionality.
High-end coating application: suitable for high-precision coating fields such as optical lenses, photosensitive elements, etc., to provide extremely fine coating control.
